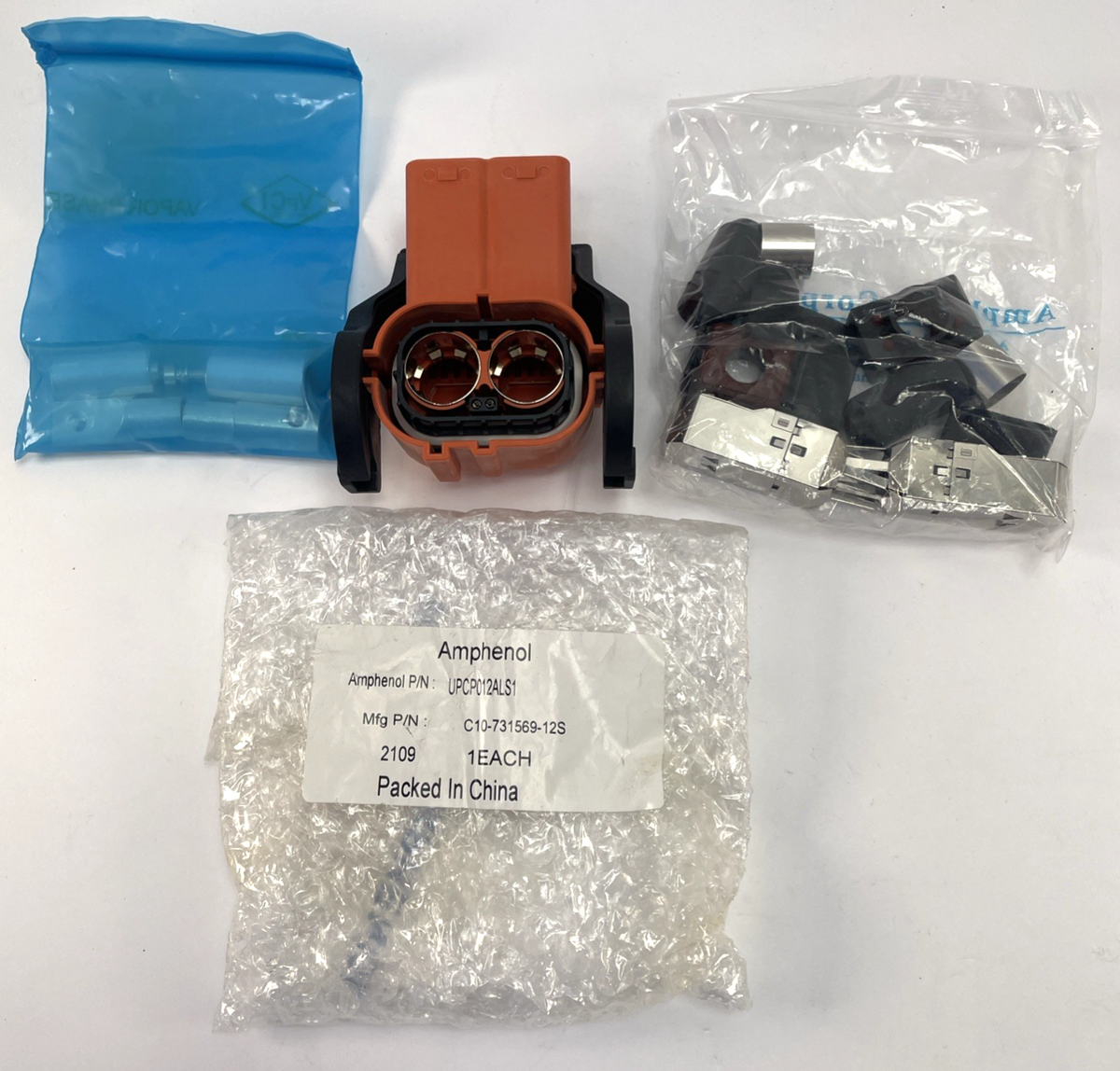

often listed as UPC P 012A LS1) is a high-power, heavy-duty electrical connector plug. It is part of Amphenol's UPC (Universal Power Connector) Series, which is designed specifically for high-voltage and high-current demands in the Hybrid Electric Vehicle (HEV) and Electric Vehicle (EV) markets.
Core Technical Specifications
- Current Rating: 250 A
- Voltage Rating: 1000 V (1 kV)
- Number of Positions: 2-pole / 2-way
- Connector Type: Right-Angle Plug (Male Pins)
- Mounting Type: Cable Mount / Free Hanging (In-Line)
- Wire Size Compatibility: Optimized for 35mm² (approx. 2 AWG) discrete wire
- Ingress Protection (IP) Rating: IP67 and IP69K (dust-tight, waterproof, and continuous immersion/pressure-wash proof)

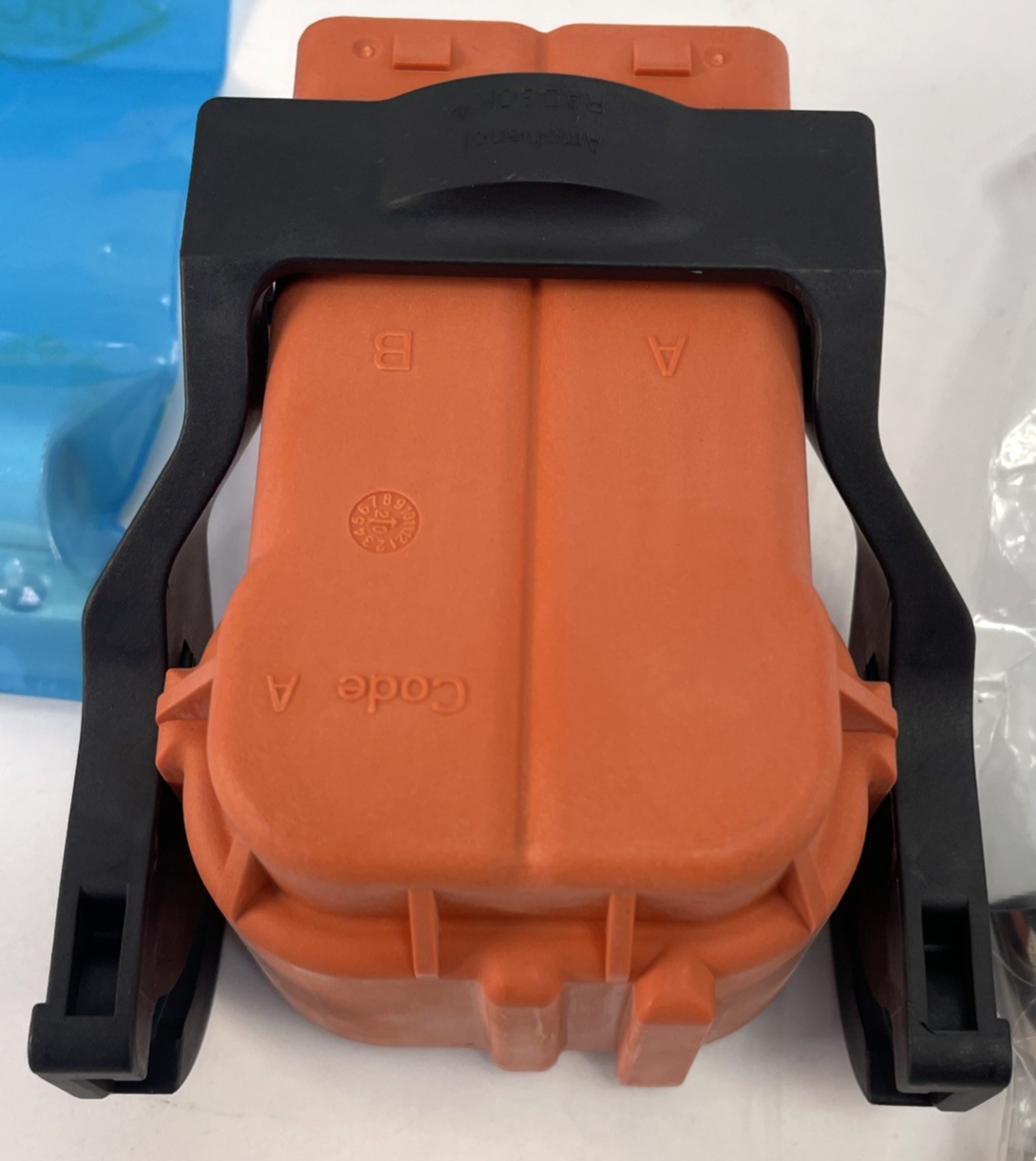

- Housing Material: Lightweight, flame-retardant plastic (UL 94V-0 rated) in a distinctive safety orange color
- Keying: Type A key configuration
Key Features

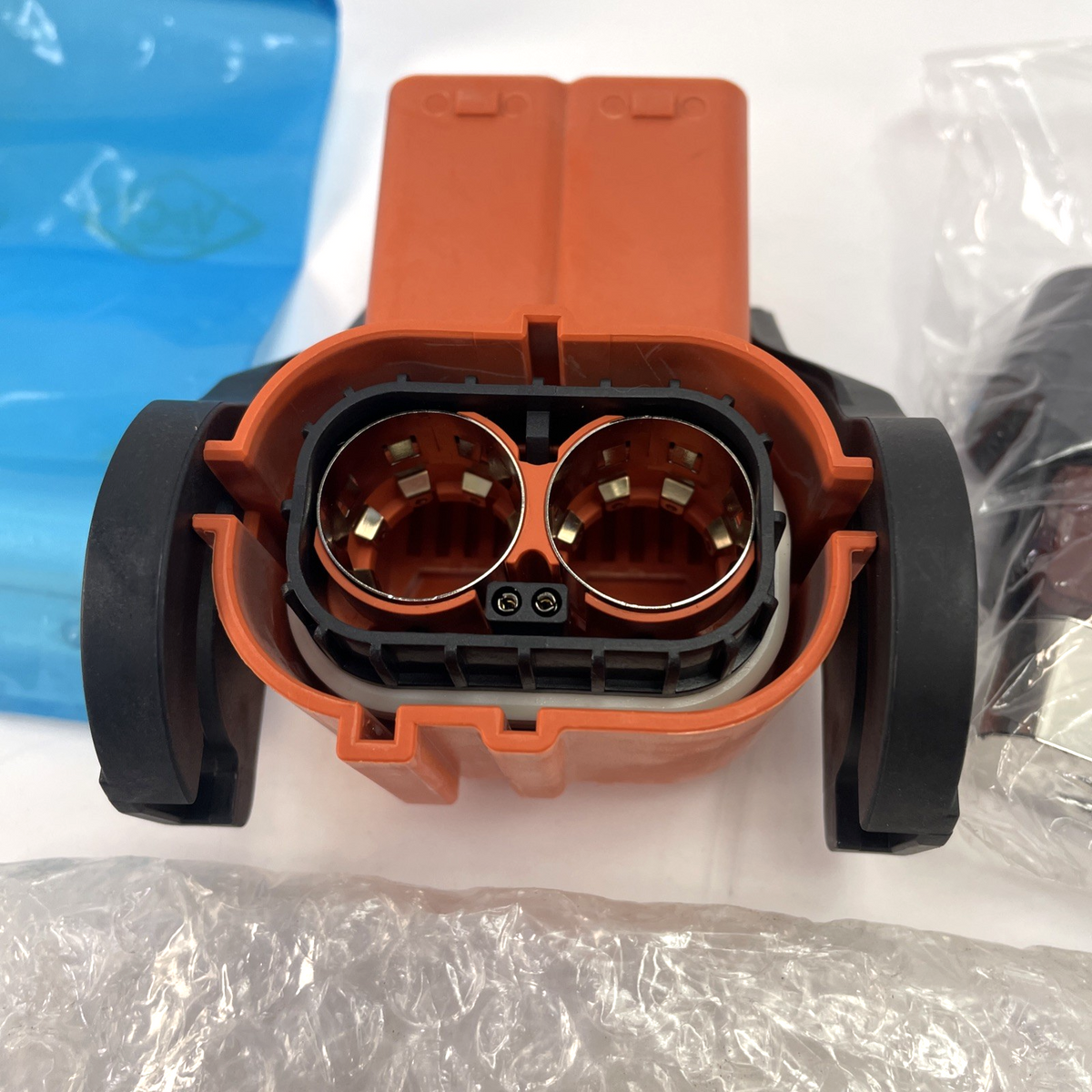

- RADSOK® Technology: Utilizes Amphenol's patented RADSOCK System This design provides up to 50% more current capacity through the same pin size compared to standard contacts, ensuring low voltage drop, minimal resistance, and lower temperature rise (T-rise).
- HVIL (High Voltage Interlock Loop): Includes an integrated HVIL circuit for safety to protect technicians and equipment during connection and disconnection.
- MSRP 180$
