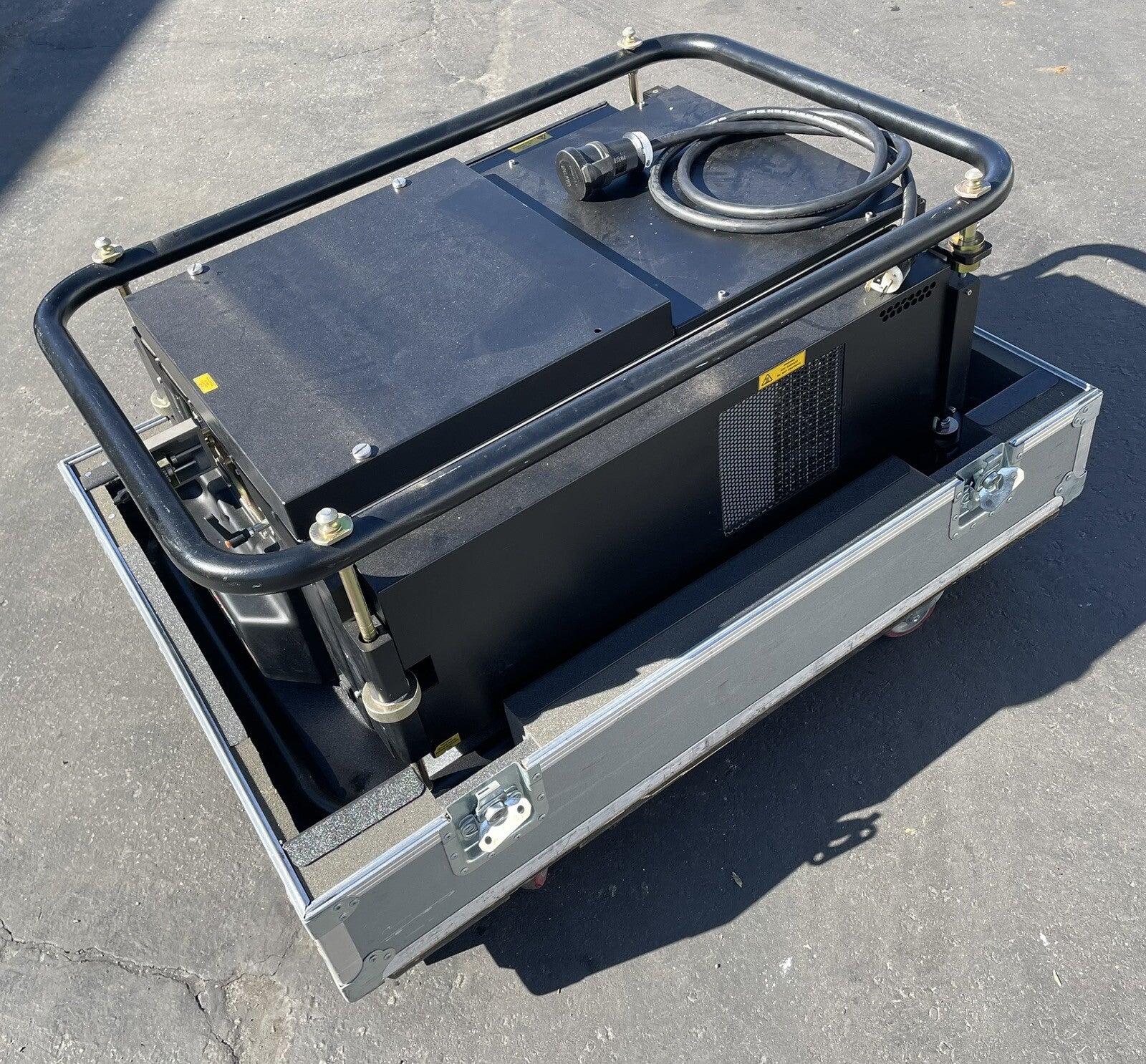

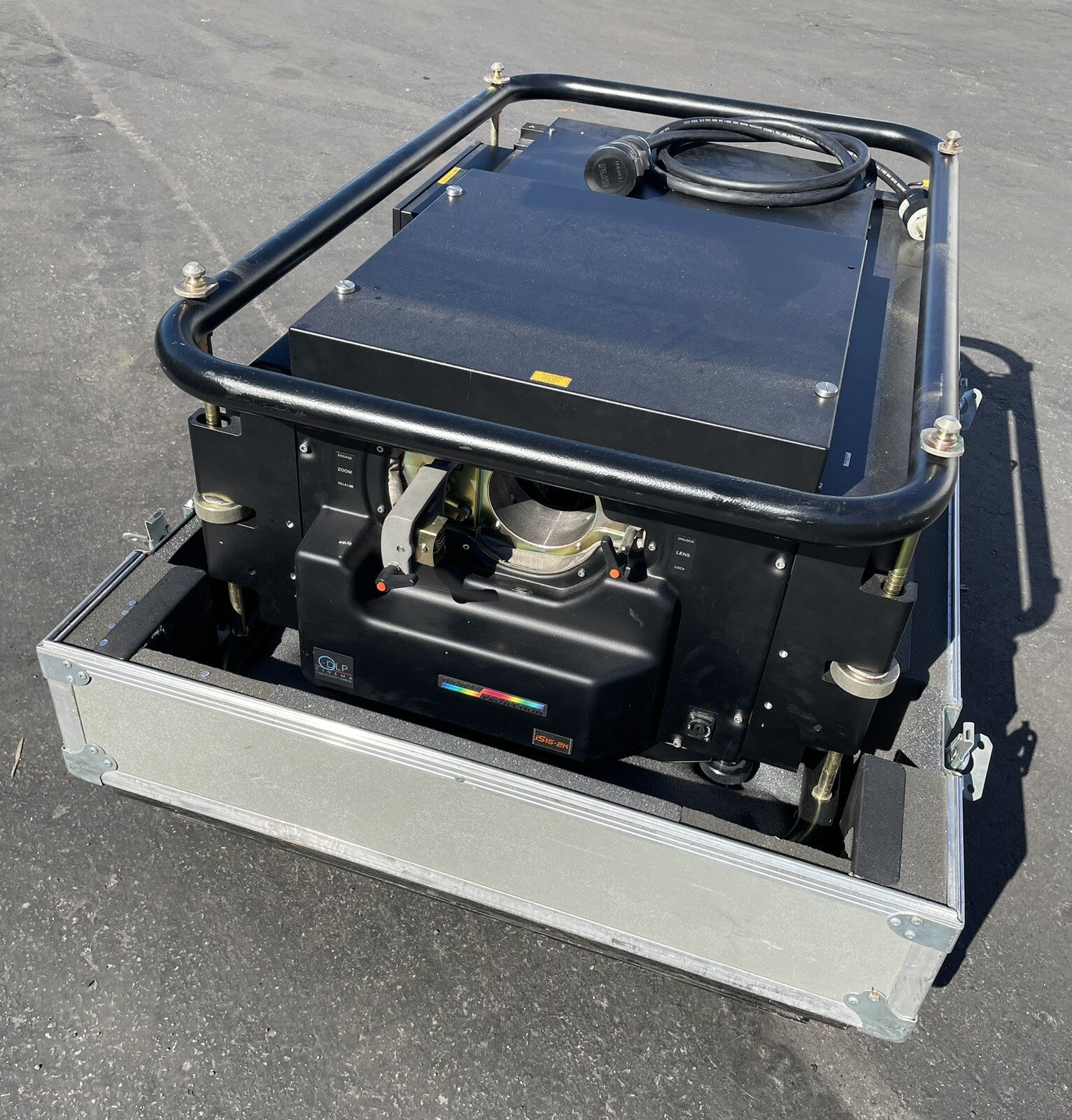

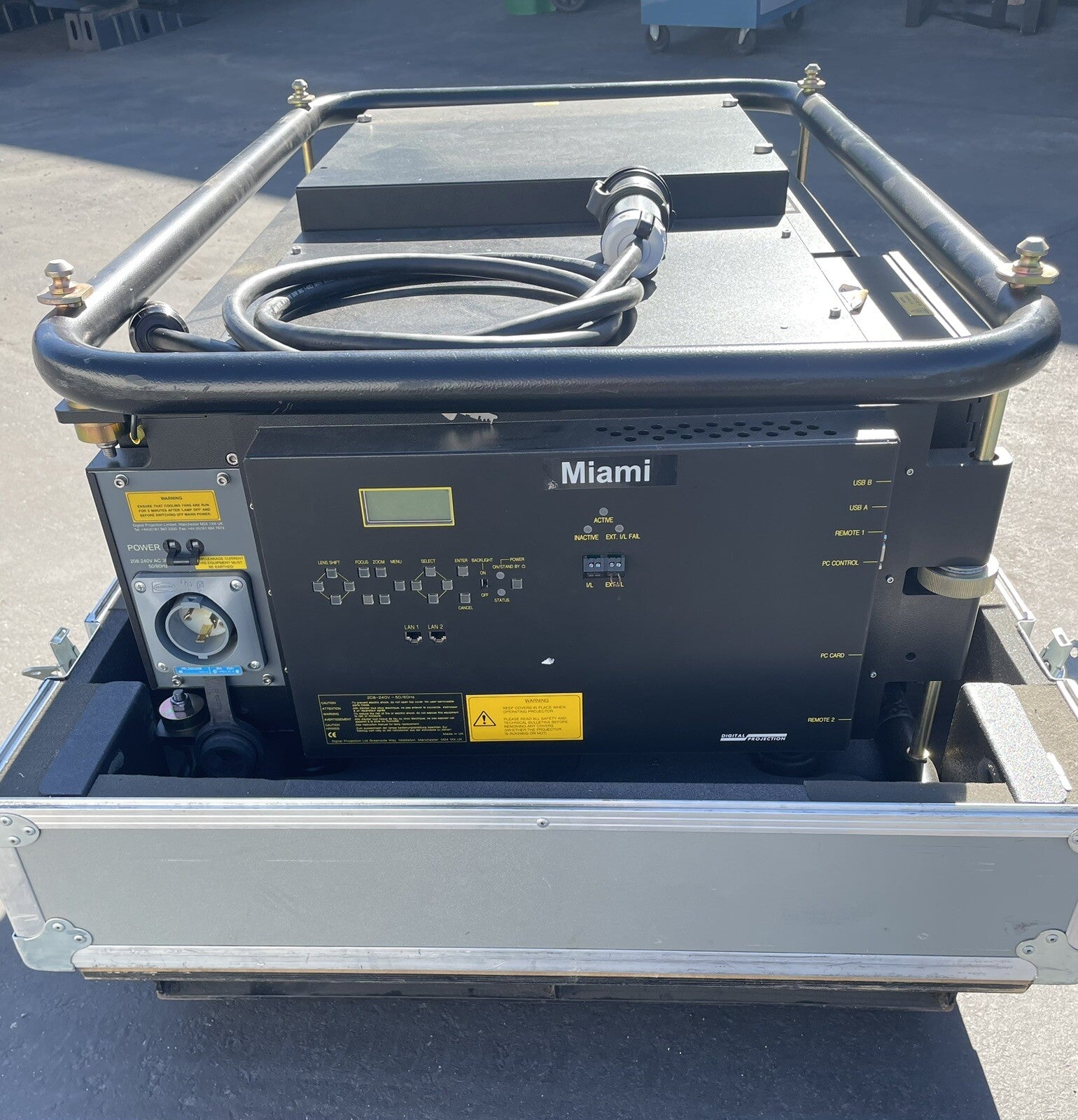

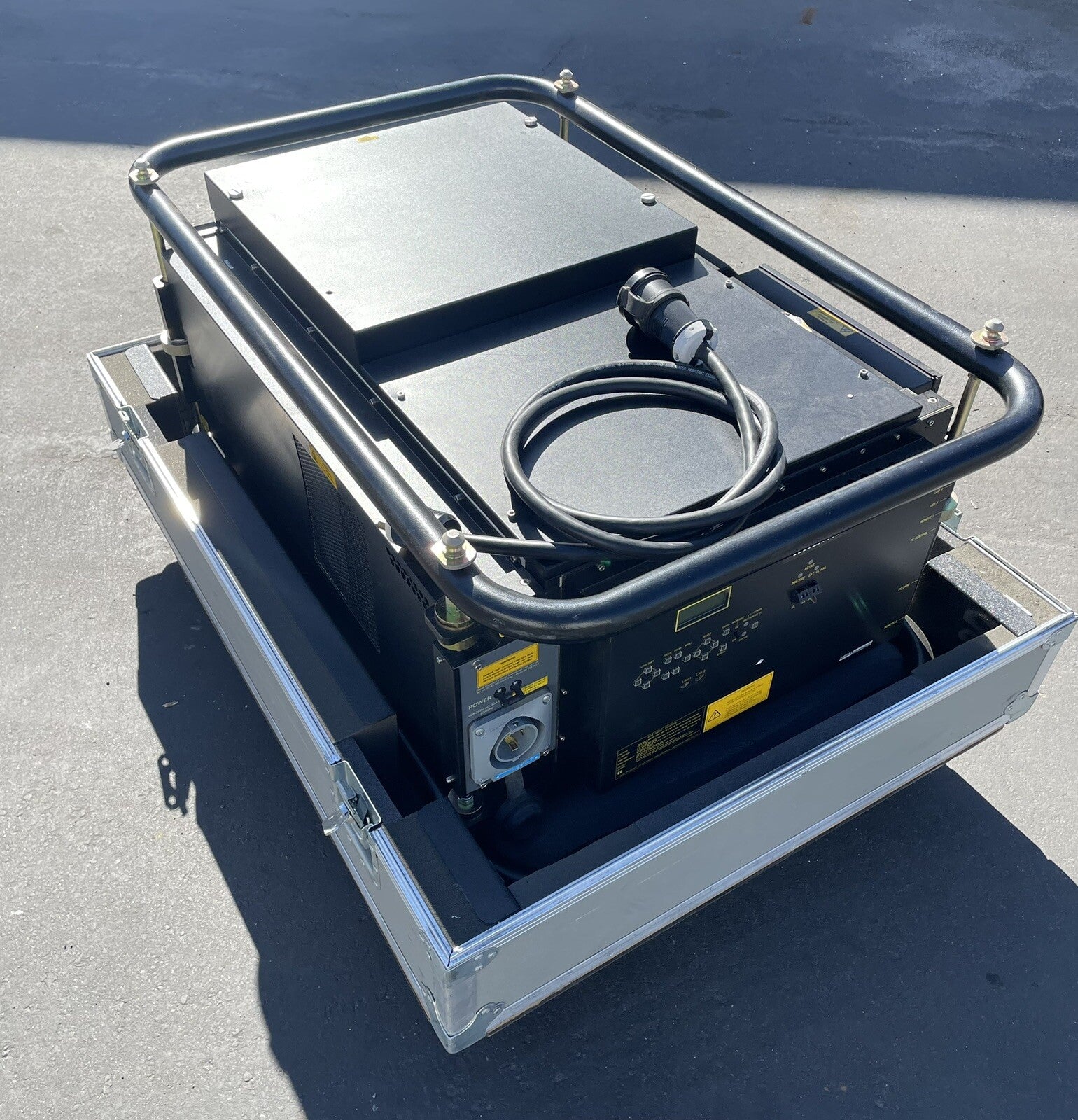

- in excellent condition

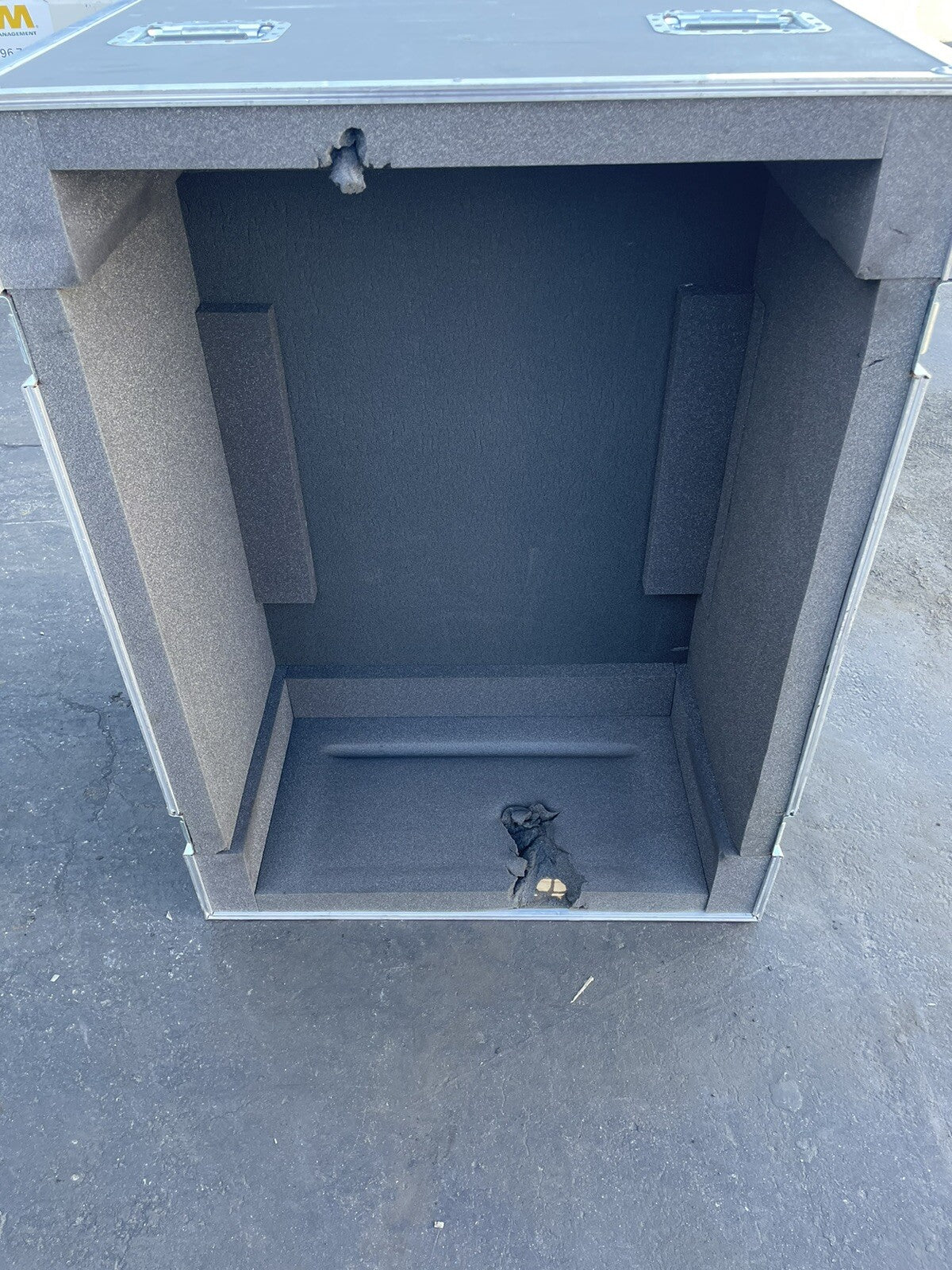

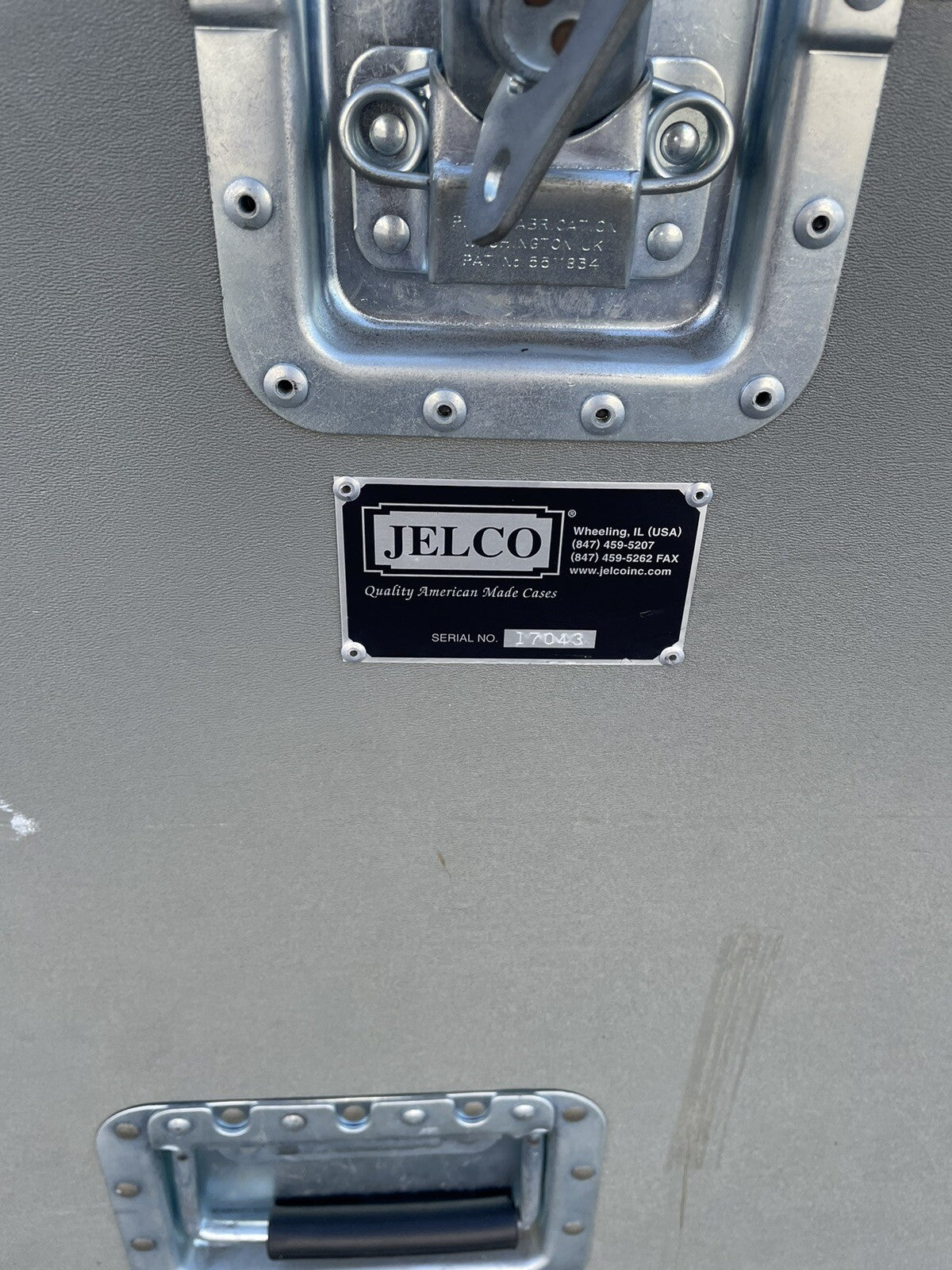

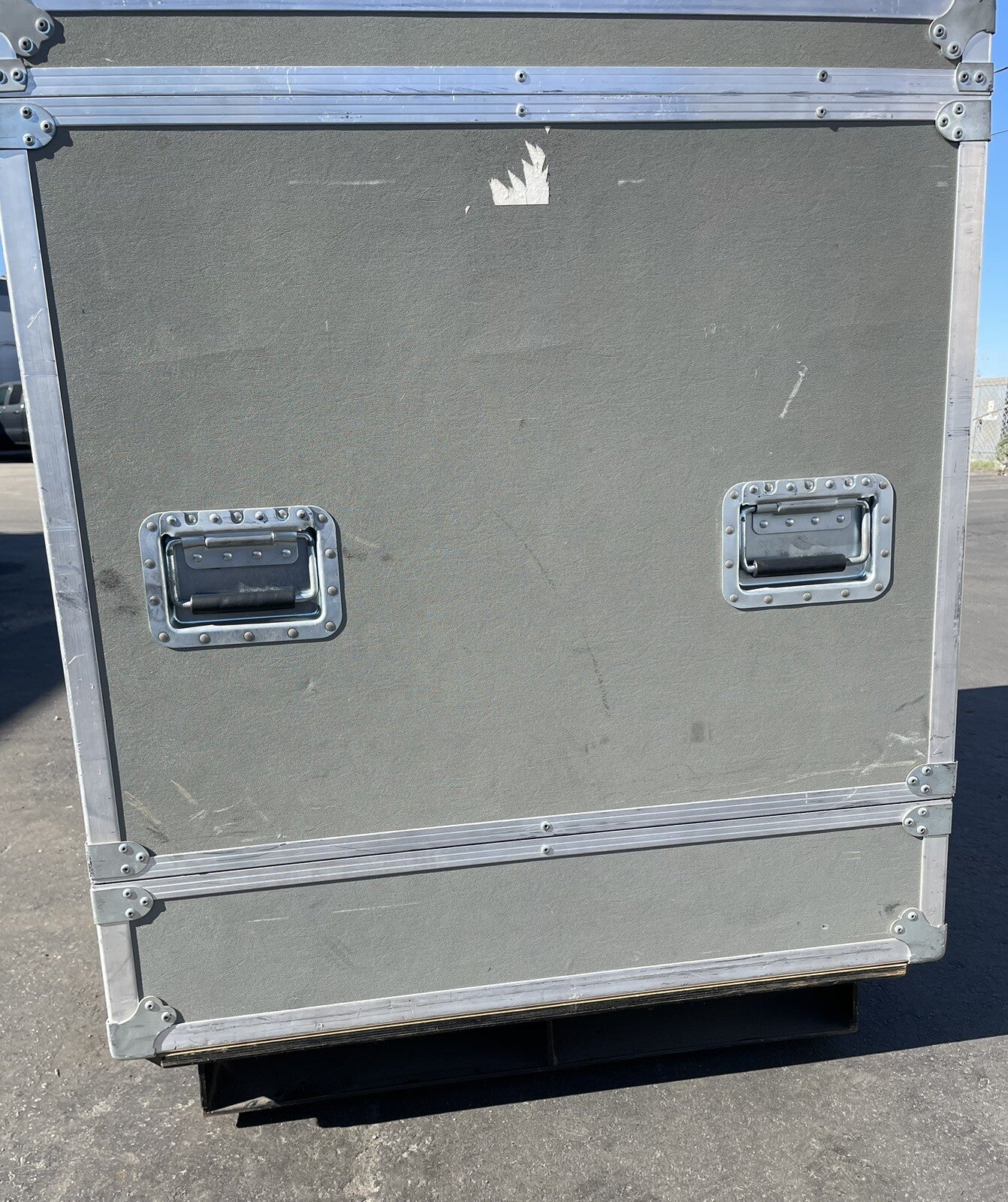

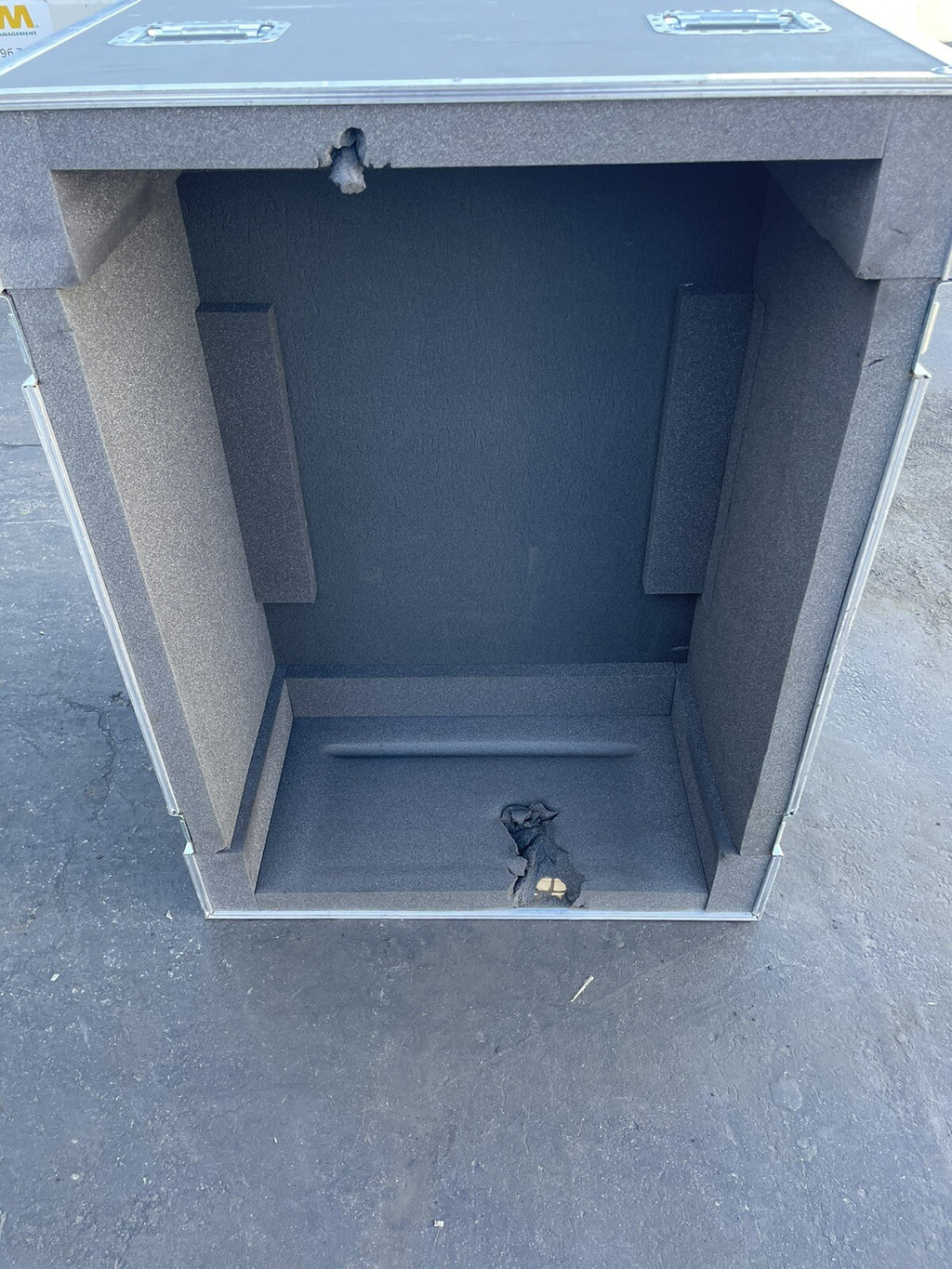

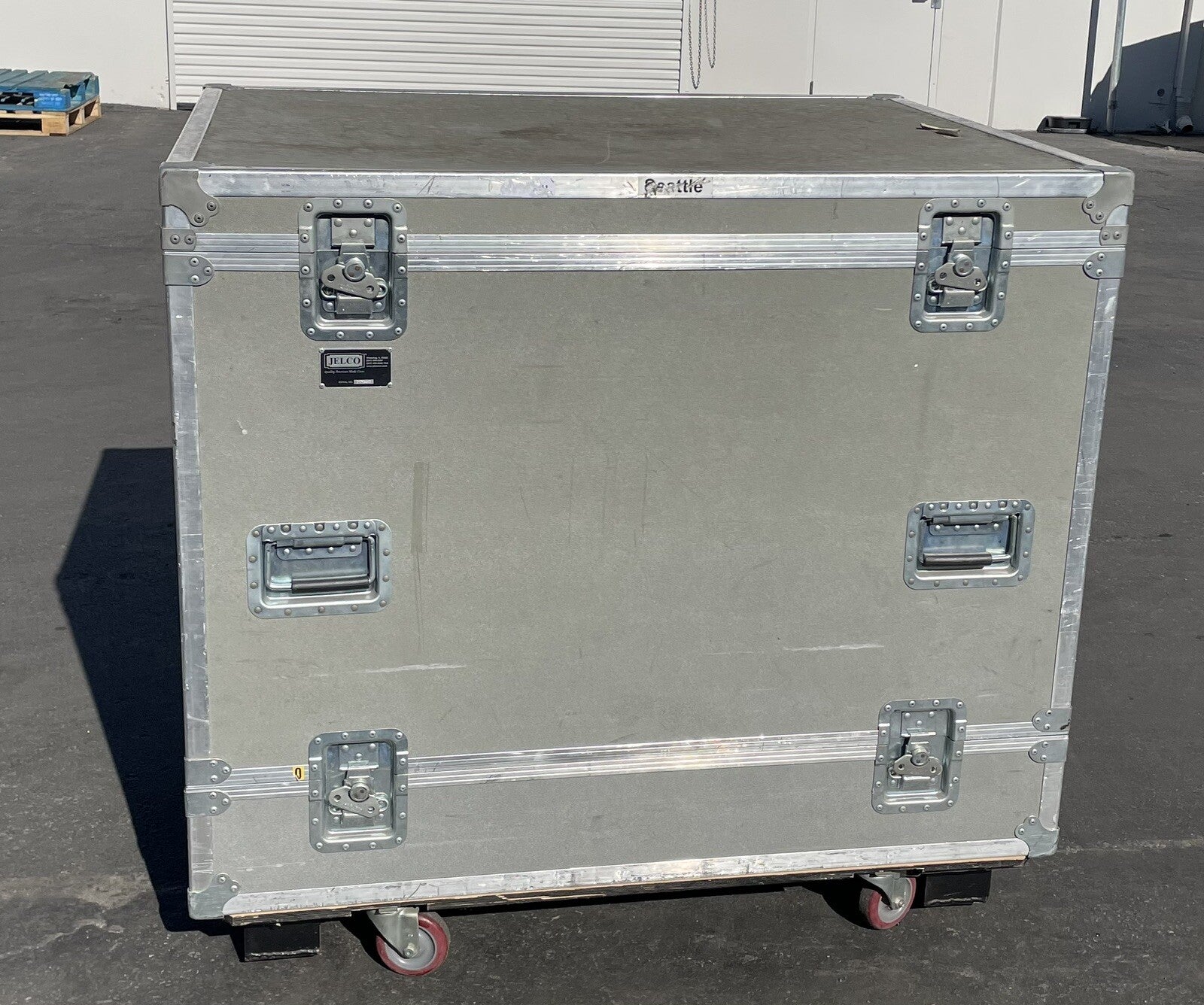

- comes wire Jelco Travel case

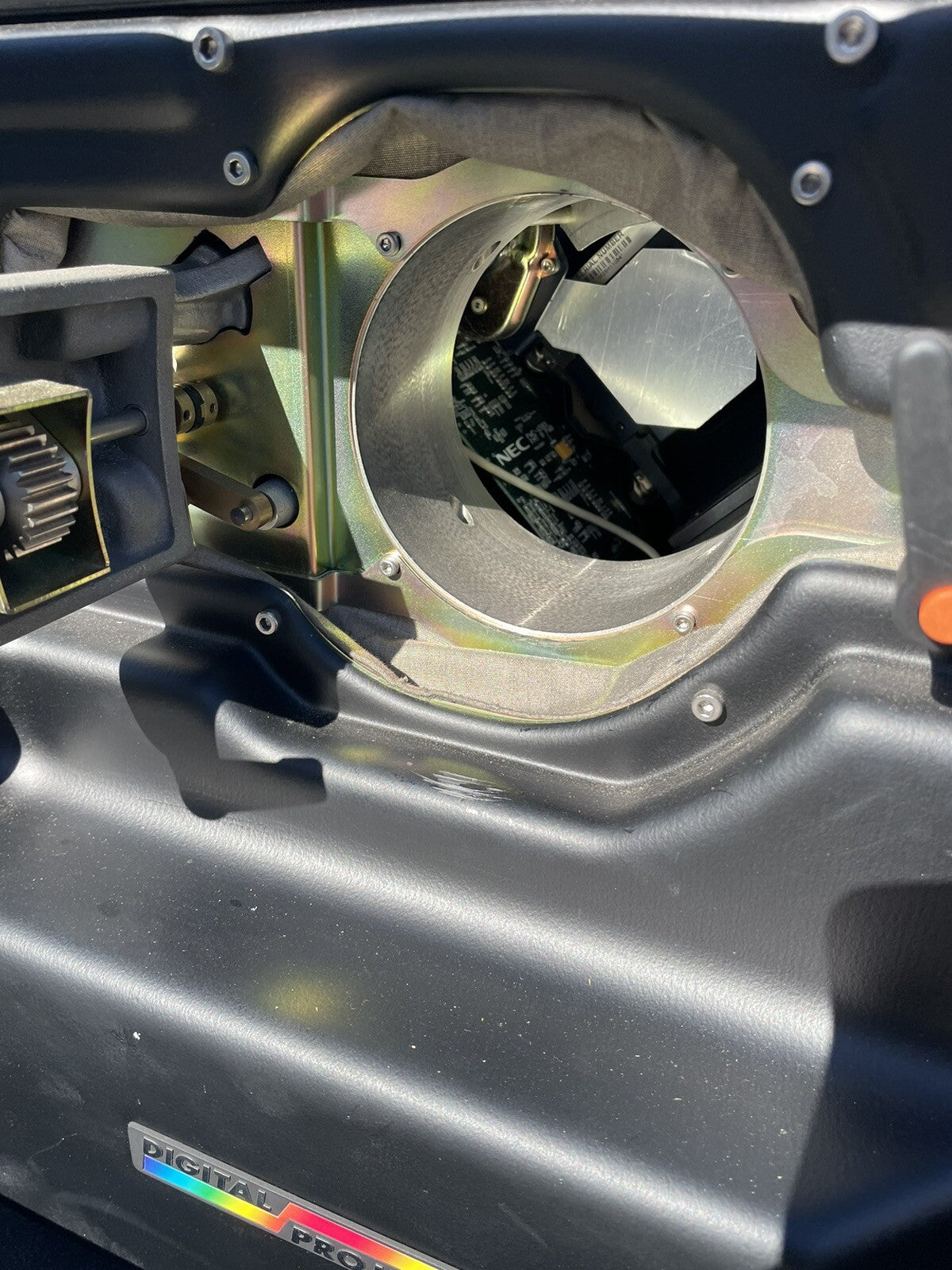

- no lenses
- acquired from a Hollywood Studio ( 48 x 36 x 45 inches)
- shipped by freight securely and safely packaged

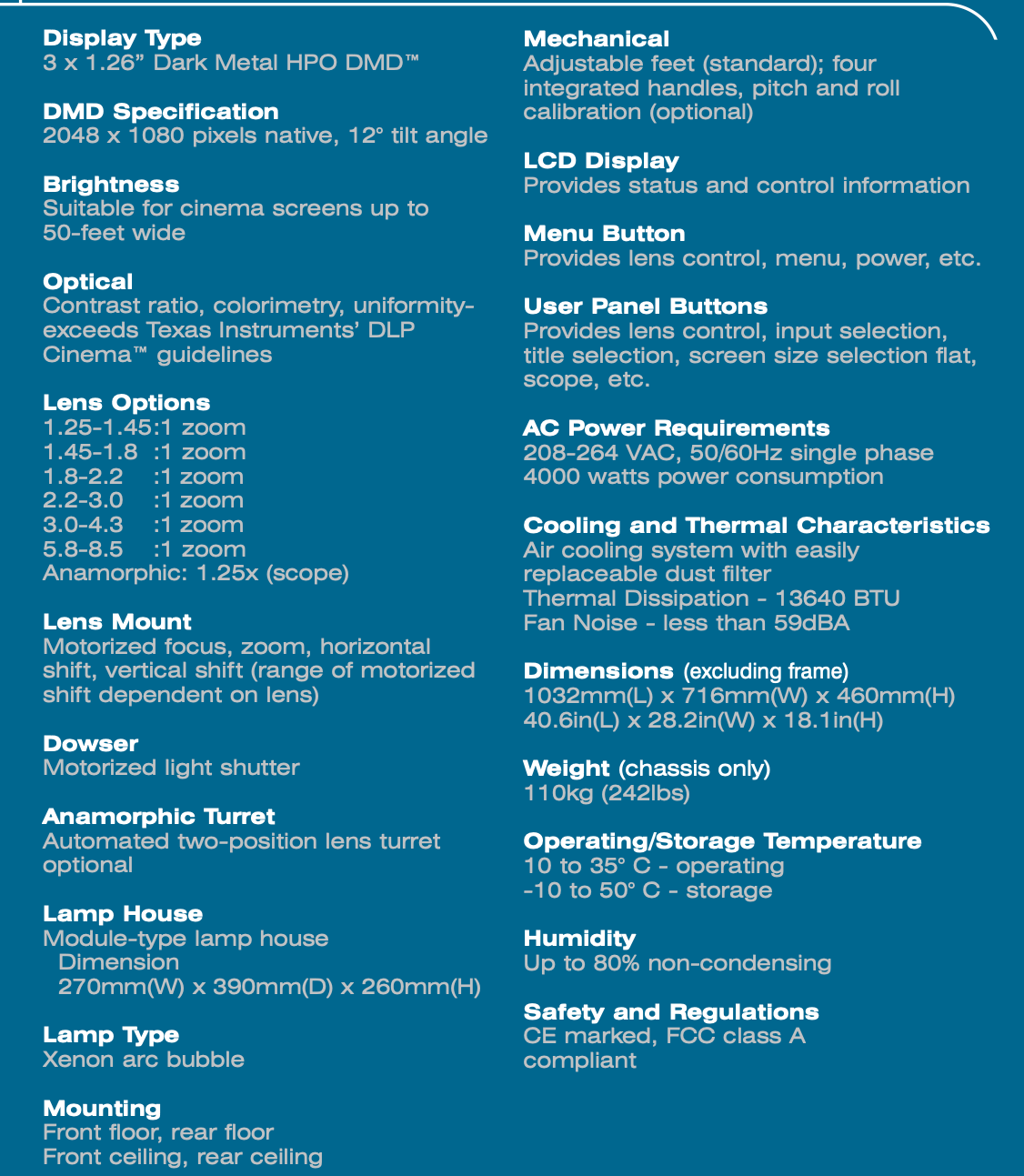

Type
3 x 1.26” Dark Metal HPO DMDTM
DMD Specification
2048 x 1080 pixels native, 12° tilt angle
Brightness
Suitable for cinema screens up to 50-feet wide
Optical
Contrast ratio, colorimetry, uniformity- exceeds Texas Instruments’ DLP CinemaTM guidelines
Lens Options
1.25-1.45 :1 zoom
1.45-1.8 :1 zoom
1.8-2.2 :1 zoom
2.2-3.0 :1 zoom
3.0-4.3 :1 zoom
5.8-8.5 :1 zoom Anamorphic: 1.25x (scope)

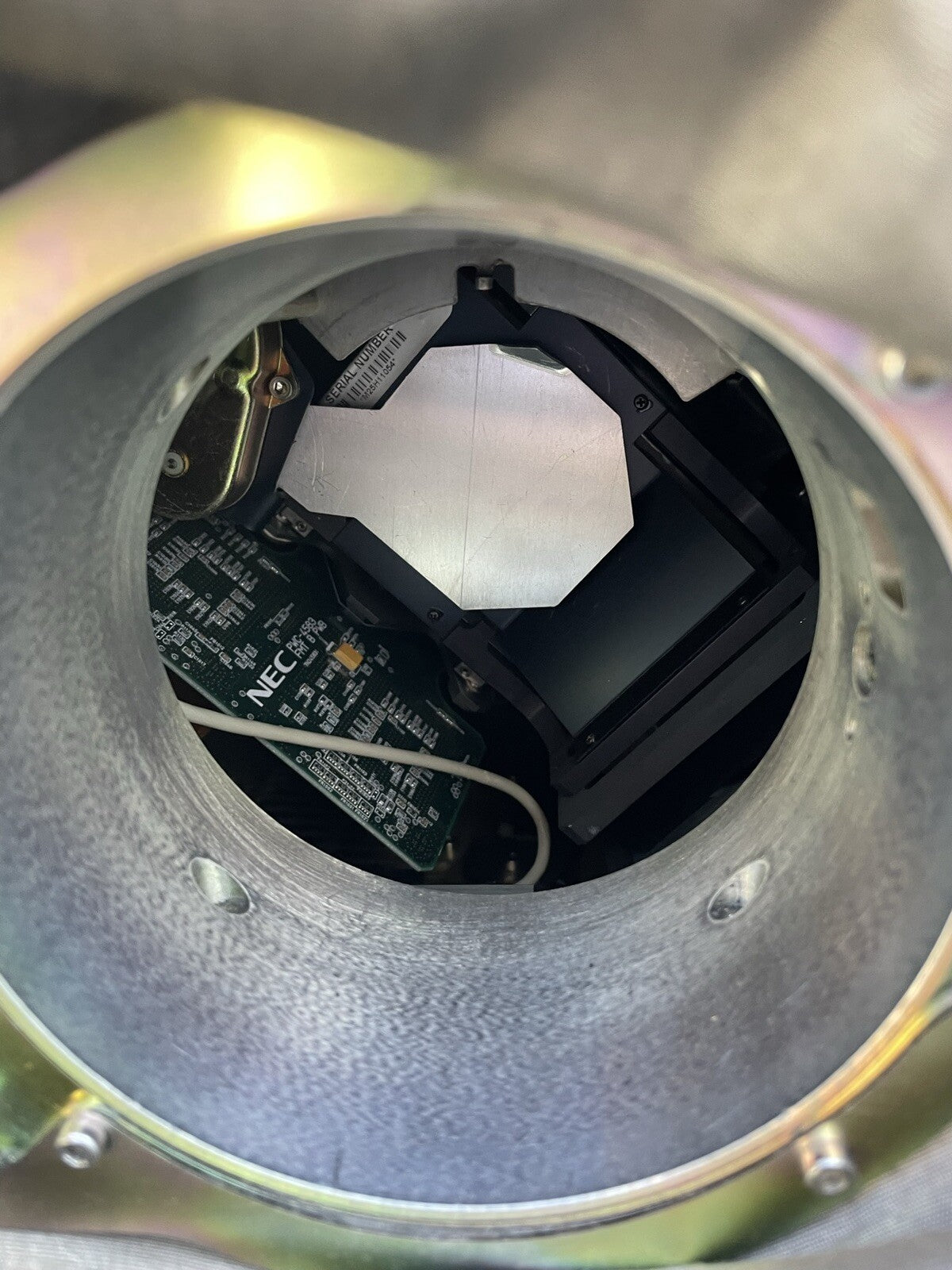

Lens Mount
Motorized focus, zoom, horizontal shift, vertical shift (range of motorized shift dependent on lens)
Dowser
Motorized light shutter
Anamorphic Turret
Automated two-position lens turret optional
Lamp House
Module-type lamp house
Dimension
270mm(W) x 390mm(D) x 260mm(H)
Lamp Type
Xenon arc bubble
Mounting
Front floor, rear floor Front ceiling, rear ceiling
Mechanical
Adjustable feet (standard); four integrated handles, pitch and roll calibration (optional)

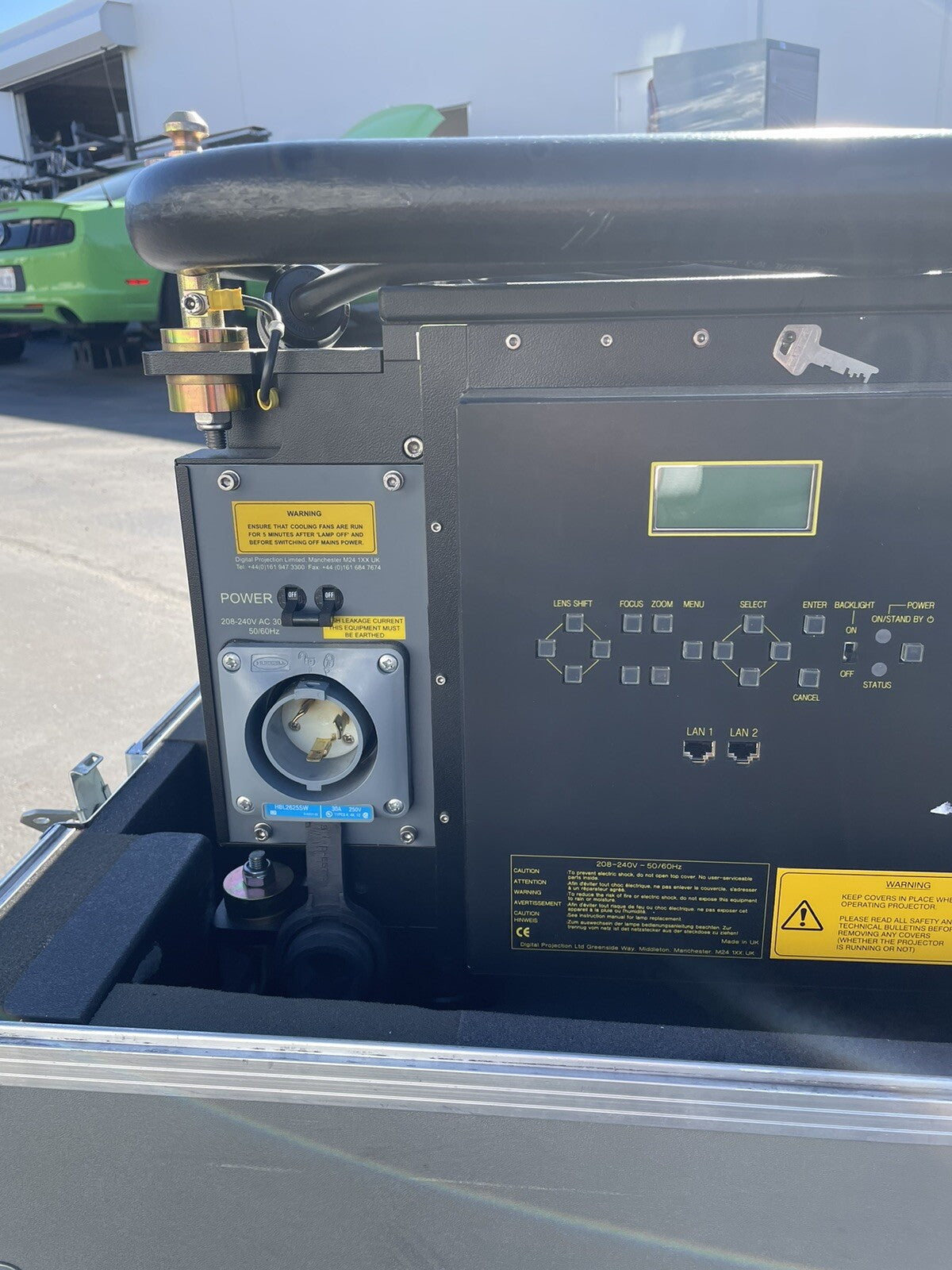

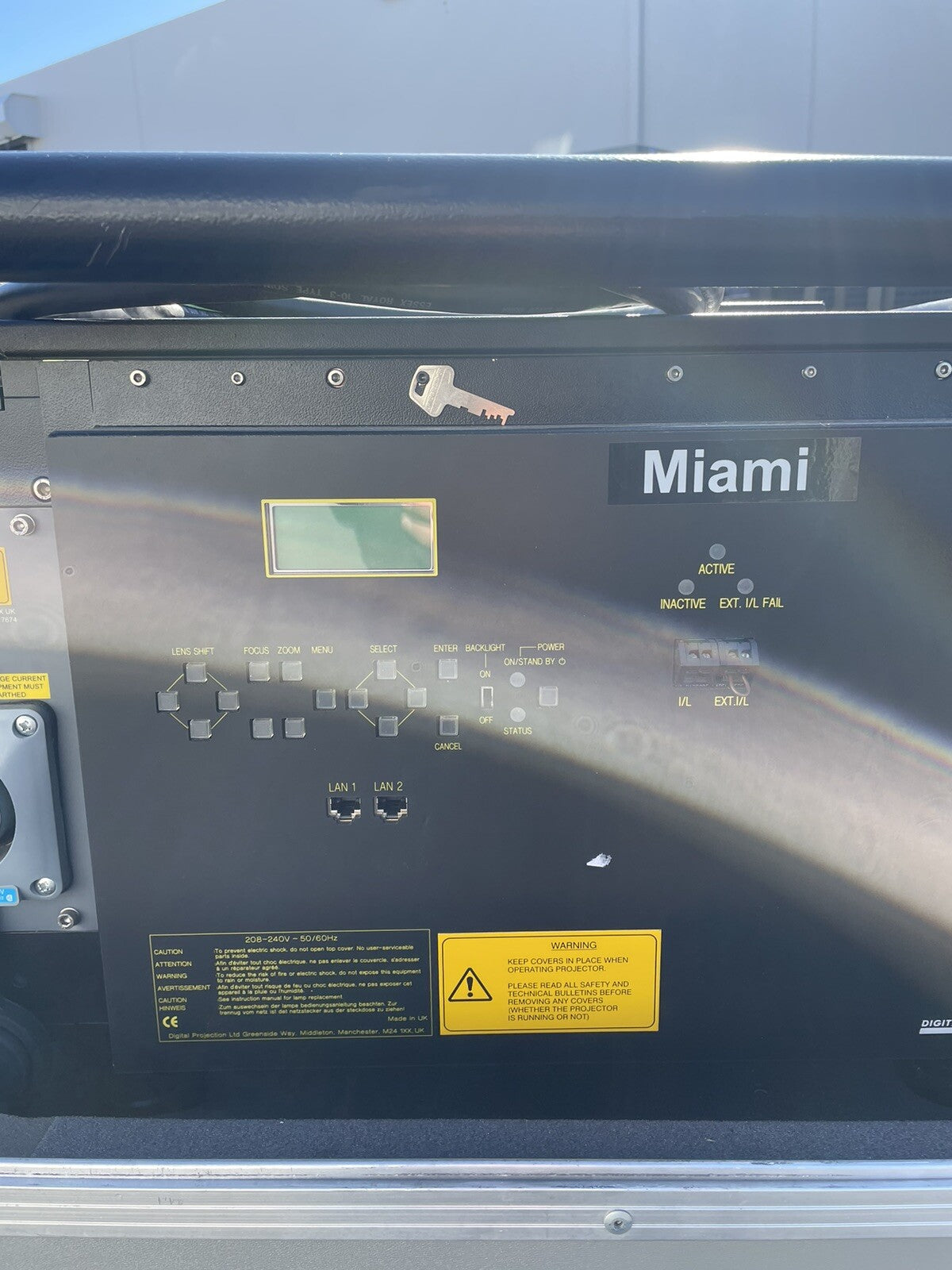

LCD Display
Provides status and control information
Menu Button
Provides lens control, menu, power, etc.
User Panel Buttons
Provides lens control, input selection, title selection, screen size selection flat, scope, etc.

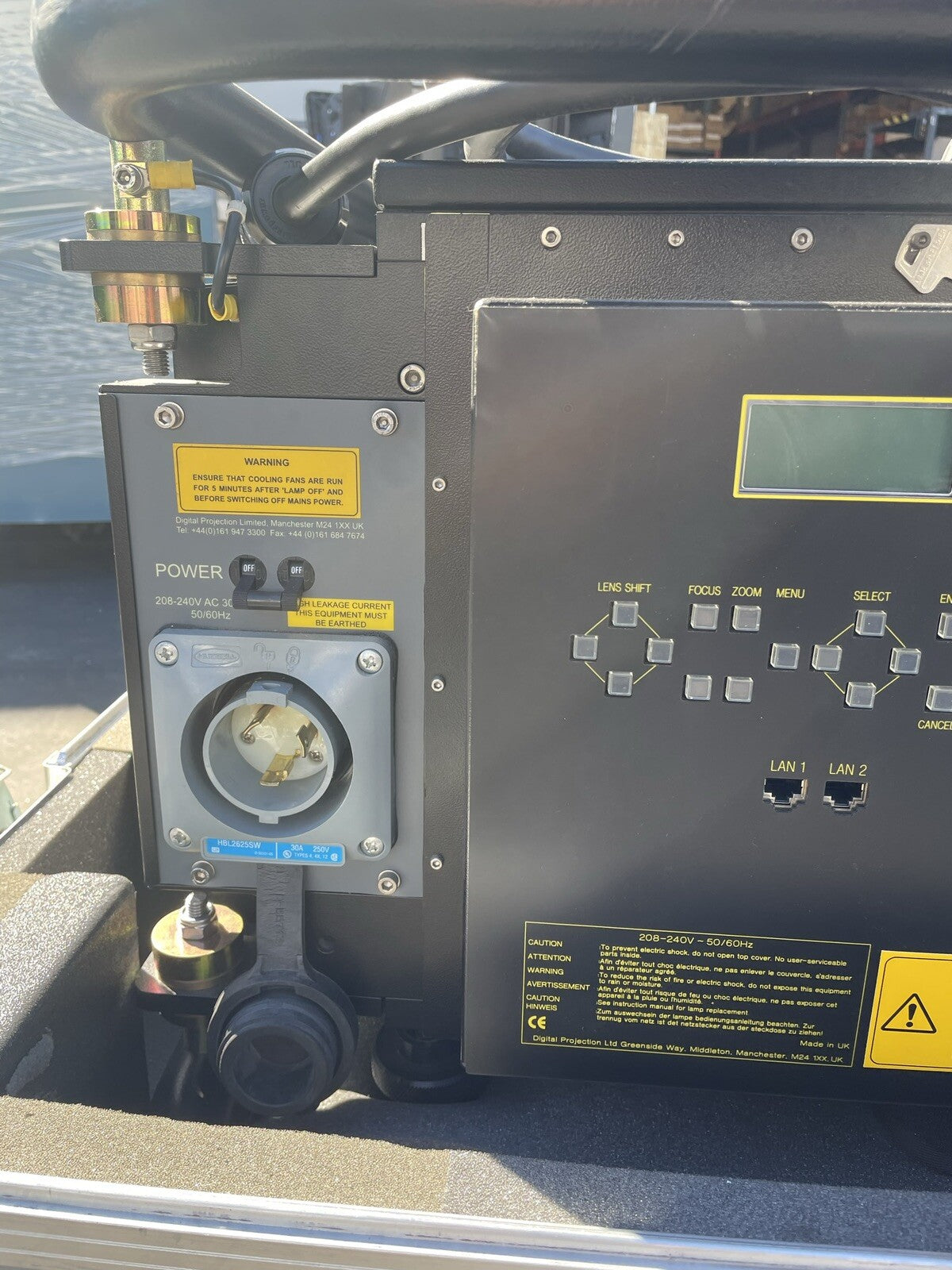

AC Power Requirements
208-264 VAC, 50/60Hz single phase 4000 watts power consumption
Cooling and Thermal Characteristics
Air cooling system with easily replaceable dust filter
Thermal Dissipation - 13640 BTU Fan Noise - less than 59dBA

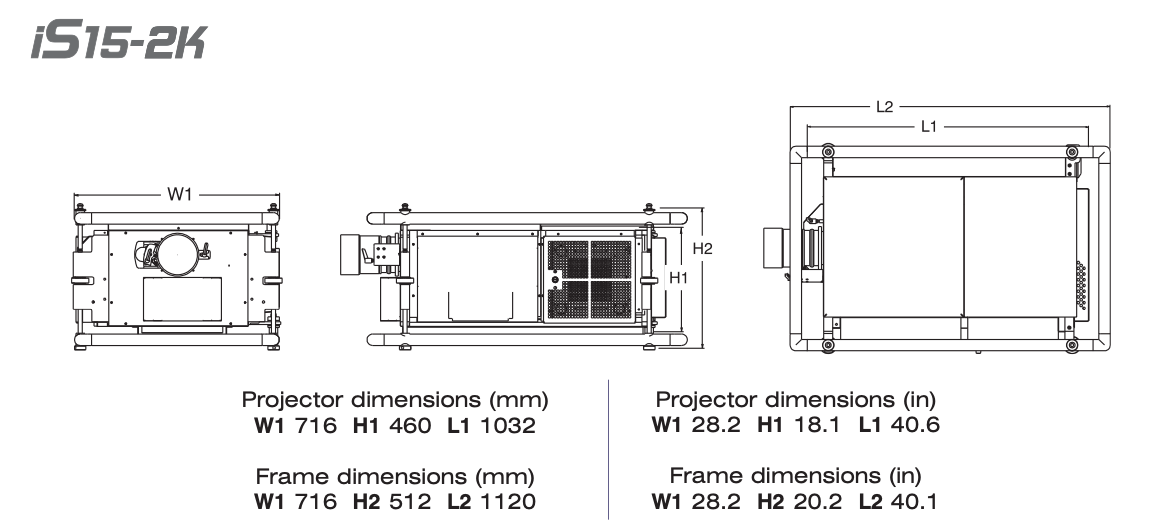

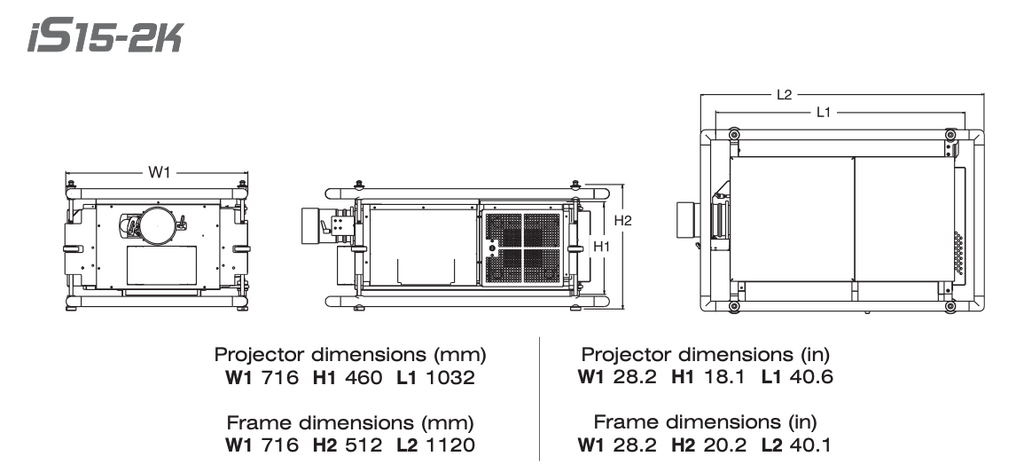

Dimensions (excluding frame) 1032mm(L) x 716mm(W) x 460mm(H) 40.6in(L) x 28.2in(W) x 18.1in(H)
Weight (chassis only) 110kg (242lbs)
Operating/Storage Temperature
10 to 35° C - operating -10 to 50° C - storage
Humidity
Up to 80% non-condensing
Safety and Regulations
CE marked, FCC class A compliant

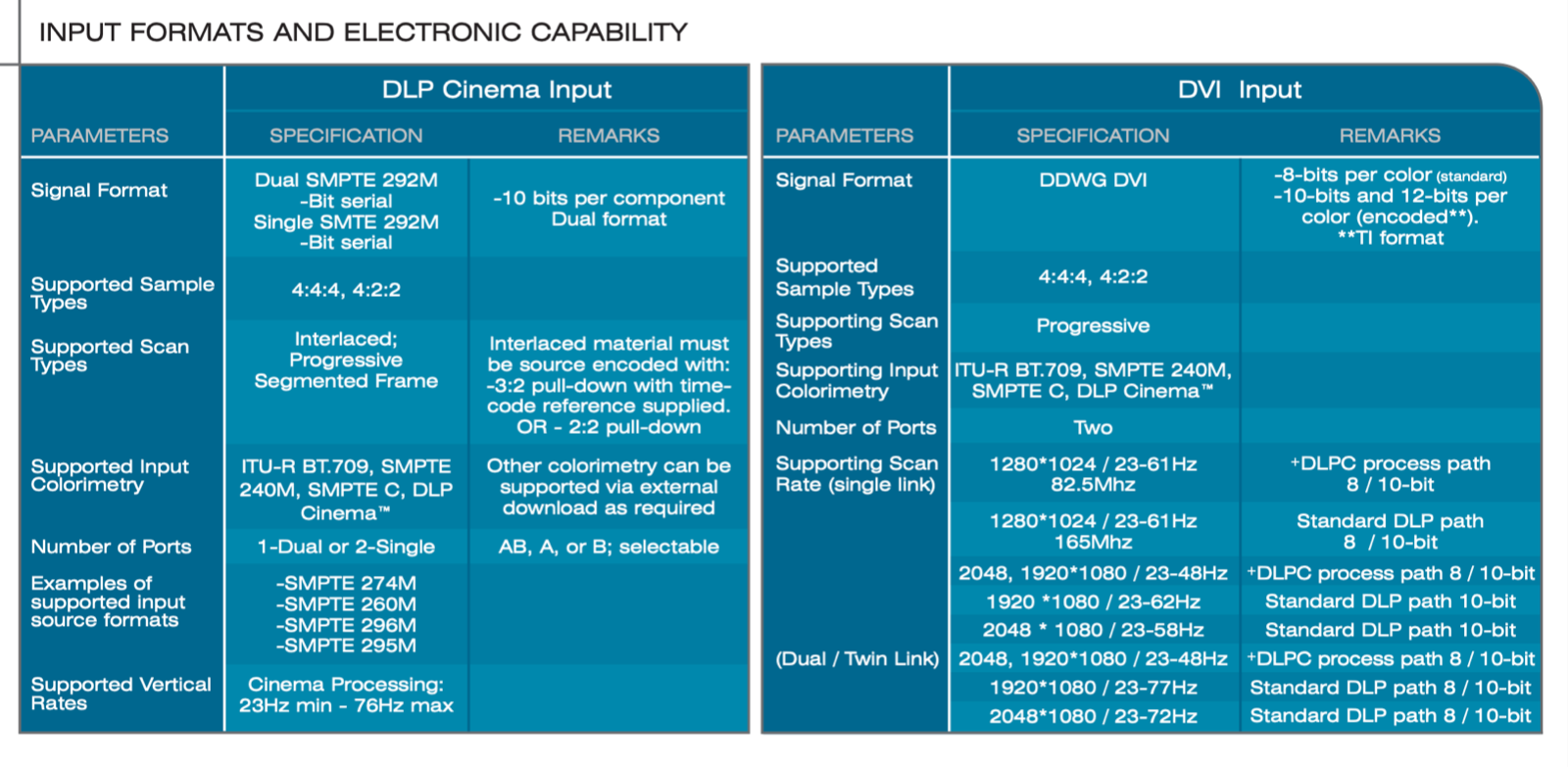

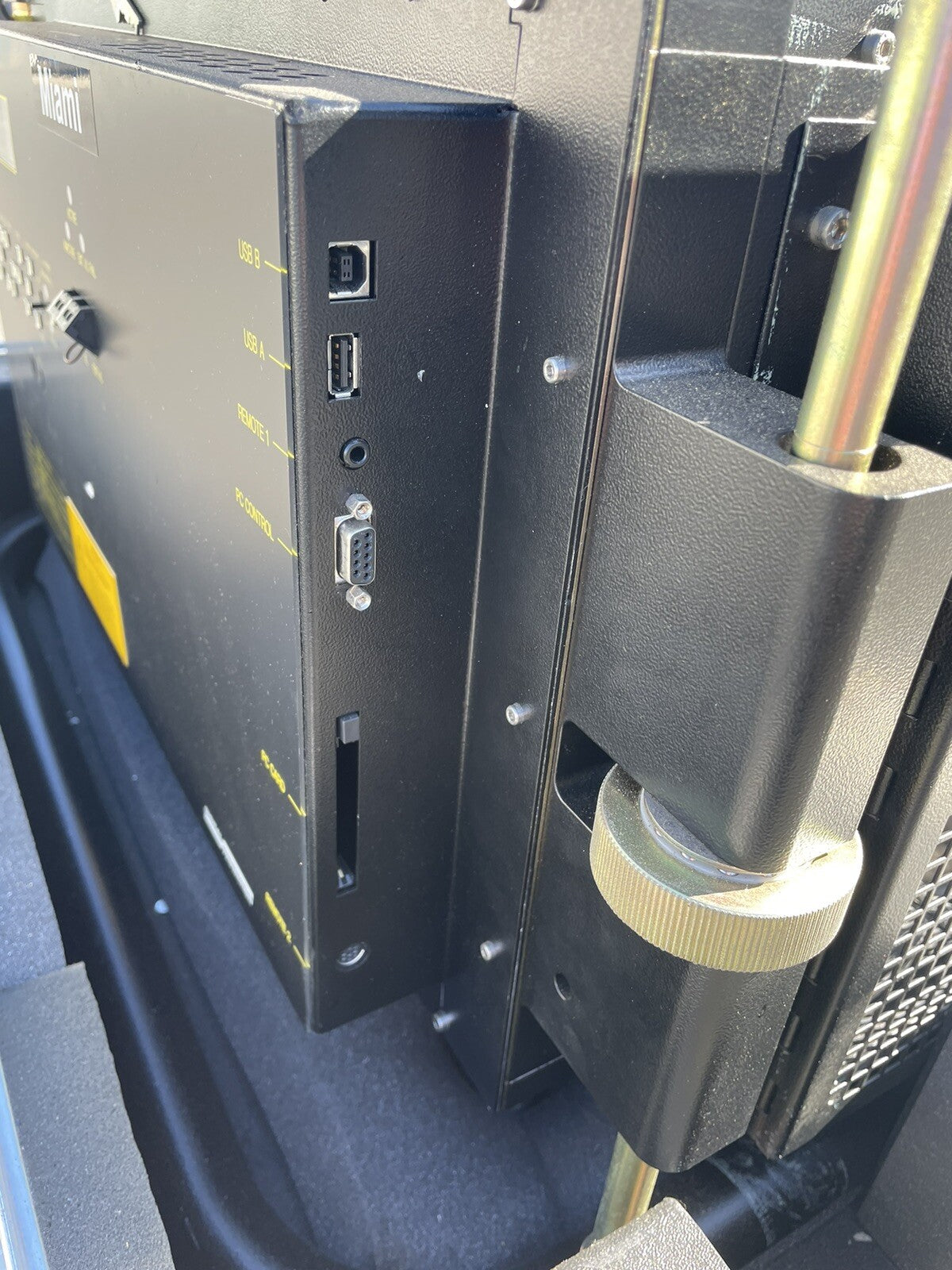

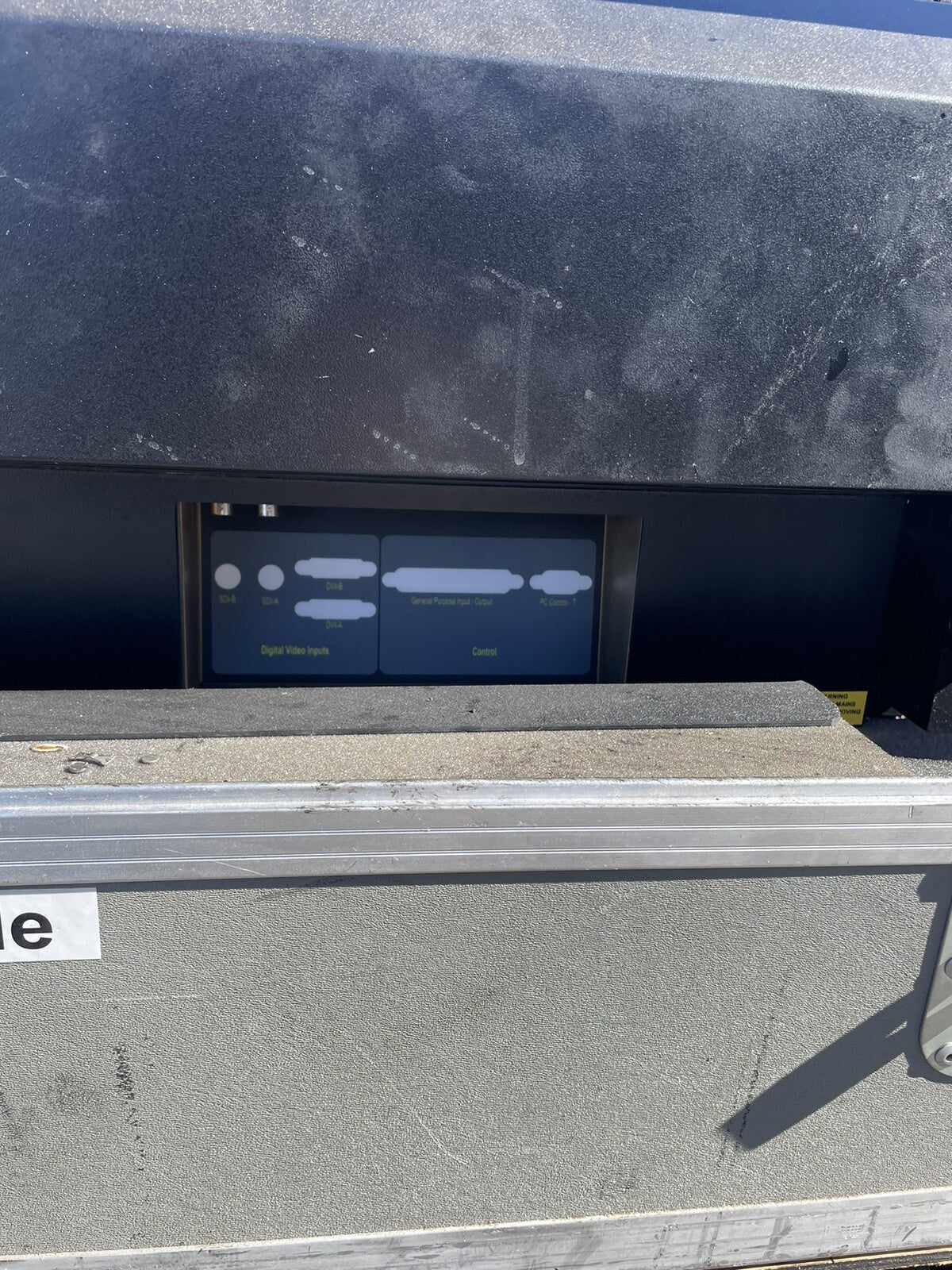

Connector :
SMPTE 292M ports ( DLP Cinema input ports) :BNC = 2
DVI-D ports : DVI - Digital = 2
Ethernet Port = Modular Jack (8-pin) = 1
Serial Port RS232 : D Sub (9-pin) = 1
GPIO ports (Opto-isolate Switch Closures) :
- D Sub (37-pin) 1 General Input: 8 port
- General Output: 7 port Special Output
- (System Monitor): 1 port
The iS15-2K is the world’s first integrated and compact digital cinema projector to employ Texas Instrument’s new DC 2K DMDTMtechnology. DLPCinemaTMcomponents, optics and illumination systems have all been expertly engineered into this rugged and streamlined built-for-purpose chassis.
User-adjustable lamp power delivers SMPTE brightness compliance on screens from 16 to 50-feet wide, making the iS15-2K perfect for screening rooms, postproduction facilities and the vast majority of screens in commercial cinemas.
The integrated design enables this state-of- the-art digital cinema projector to be shared among multiple auditoriums within a multiplex. For new construction, the system can be installed inside a projection booth or in the auditorium using an environmental enclosure. The ingenious mechanical design, which includes an optional rugged external frame with integrated pitch and roll adjustments, supports every conceivable installation requirement.
When paired with Digital Projection’s Multi- Media Switcher 1000 (MMS 1000), the cinema exhibitor can screen any content from live concerts and sporting events to PowerPoint® presentations and DVD-based material. The ability to show alternative content greatly enhances system flexibility and opens new revenue streams to the commercial exhibitor.
Most importantly, the iS15-2K is a product of Digital Projection International and NEC Viewtechnology - two powerhouses in the projection industry. Combining unequaled innovation, expertise, product quality and customer services, Digital Projection Cinema will inspire confidence in your digital cinema business.
