When you pair a Geberit installation system with a compatible wall-hung urinal, you get these benefits:
-
Design freedom – choose a wall-hung urinal from leading ceramic manufacturers; pair with stylish flush actuators
-
Easy cleaning – clean the entire floor with a damp mop, no bending or kneeling
-
Improved accessibility – adjustable fixture height meets personal preference or ADA guidelines
-
Water savings – built-in 0.5 GPF saves every year
-
Superior function – designed to pair with engineered Geberit concealed flush valves for long life
- Not intended to be sold in California unless paired with 0.125 GPF (1.9 LPF) or less urinal flush controls
INSTALLATION AND SCOPE OF DELIVERY
- For proper stud construction (wood or steel) water supply connection, drainage and venting requirements see installation instructions
- Includes Geberit Duofix carrier frame, integrated rough-in box, water supply stop, drainage elbow, atmospheric vacuum breaker, mounting hardware
- Requires compatible wall-hung urinal to complete installation

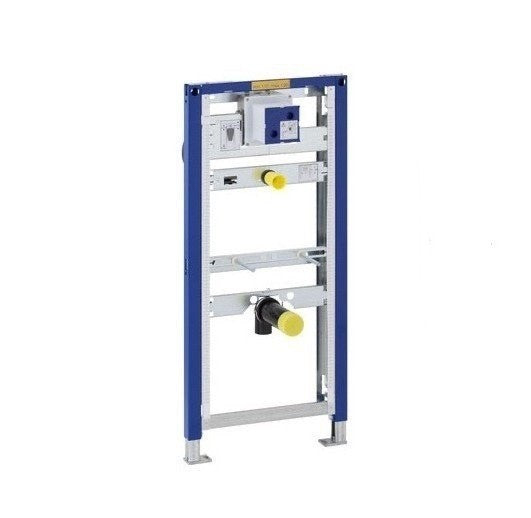

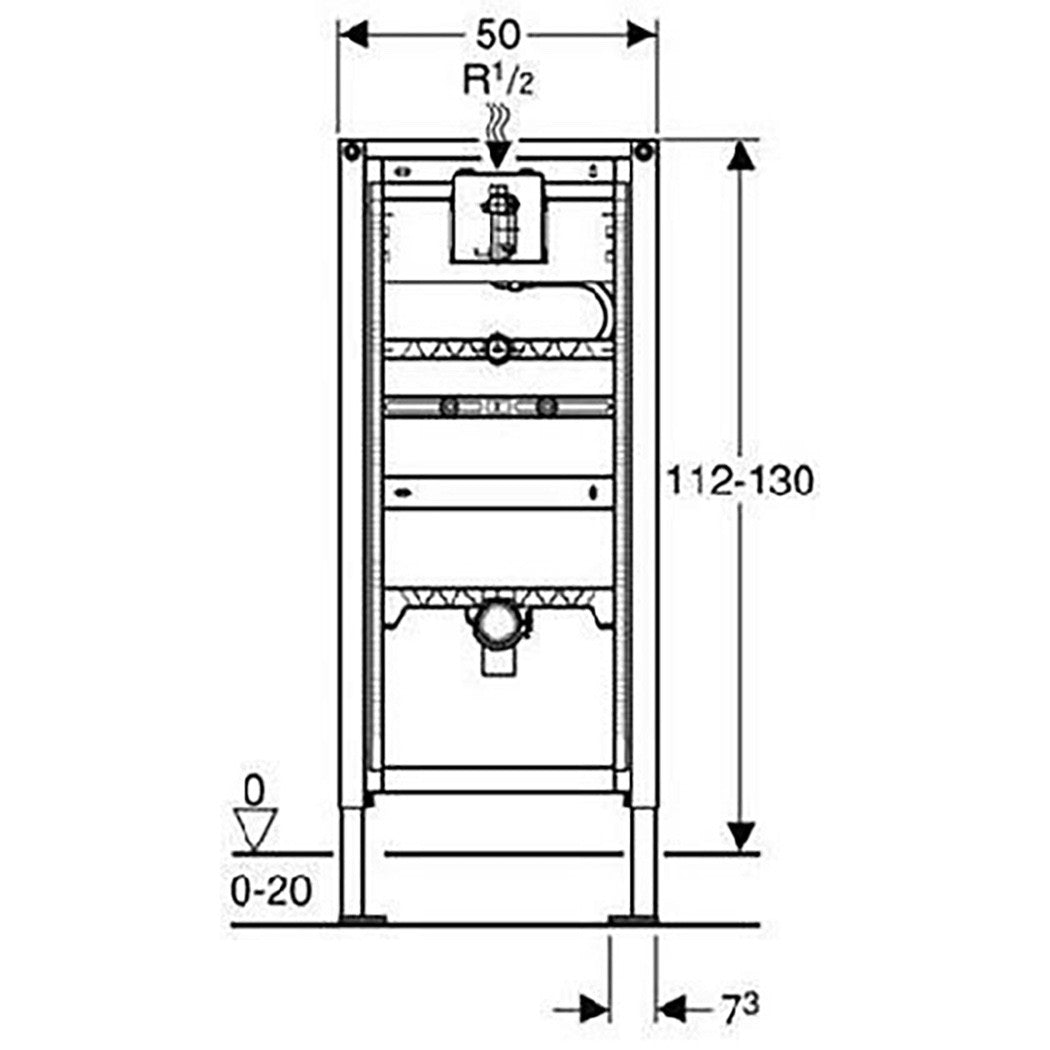

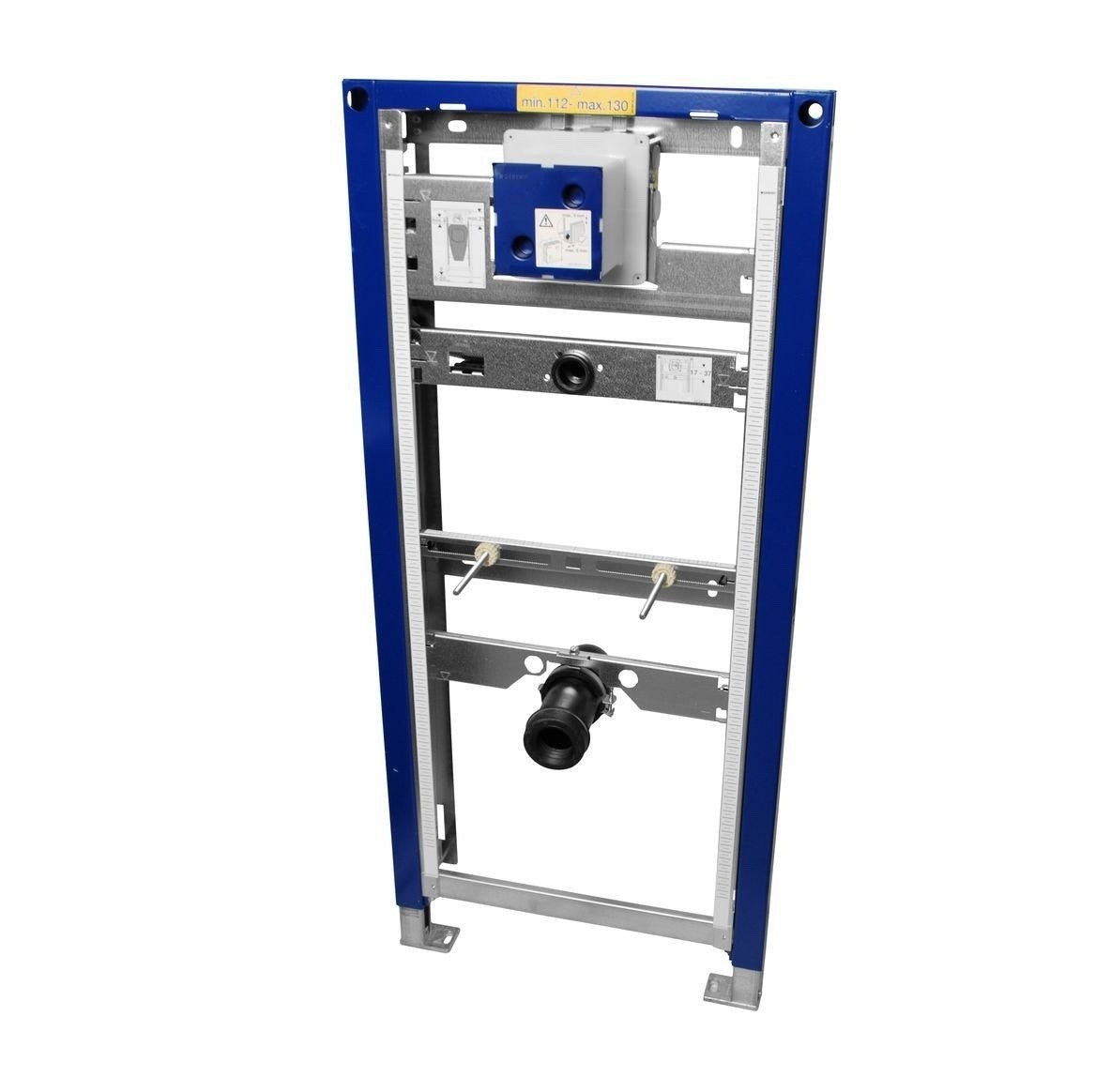

Duofix universal mounting element for urinal "Universal" Application • For installation in a room-height backsplash or in a dividing wall • For concealed installation in a plasterboard partition or on a solid wall with panel cladding (gypsum or wood) • For installation in front of a solid wall or hollow partition • For concealed installation on a solid wall • For installing urinals • For fastening into the floor (0 - 20 cm) • For use with Geberit built-in flush systems Description • Holes d 9 mm for fastening to a wooden frame • Self-supporting design • Galvanized floor supports with markings • Pivoting support plate • For floor-standing designs, floor supports extend up to 5 cm • Protective layer in "Geberit blue" applied by powder coating • Element height 112 cm, adjustable up to 130 cm • Fastenings for sanitary ceramics with height and width adjustment • Sound-absorbing fastening for waste outlet with height adjustment • Fastening for flush outlet d 32 mm, height-adjustable • Self-locking feet for tool-free alignment of the element Scope of delivery • Flush unit with shut-off valve • Mounting box for service window • Angled fitting R 1/2" for water supply • Connection set for urinal with siphon • Flexible water connection hose • Rubber cuff, d 44/32 mm • Waste outlet d 50/63 mm • Rubber cuff d 57/50 mm • 2 threaded rods M8 for fastening sanitary ceramics • Fastening elements • Not included: Duofix flush drive universal mounting element for urinal "Universal"
