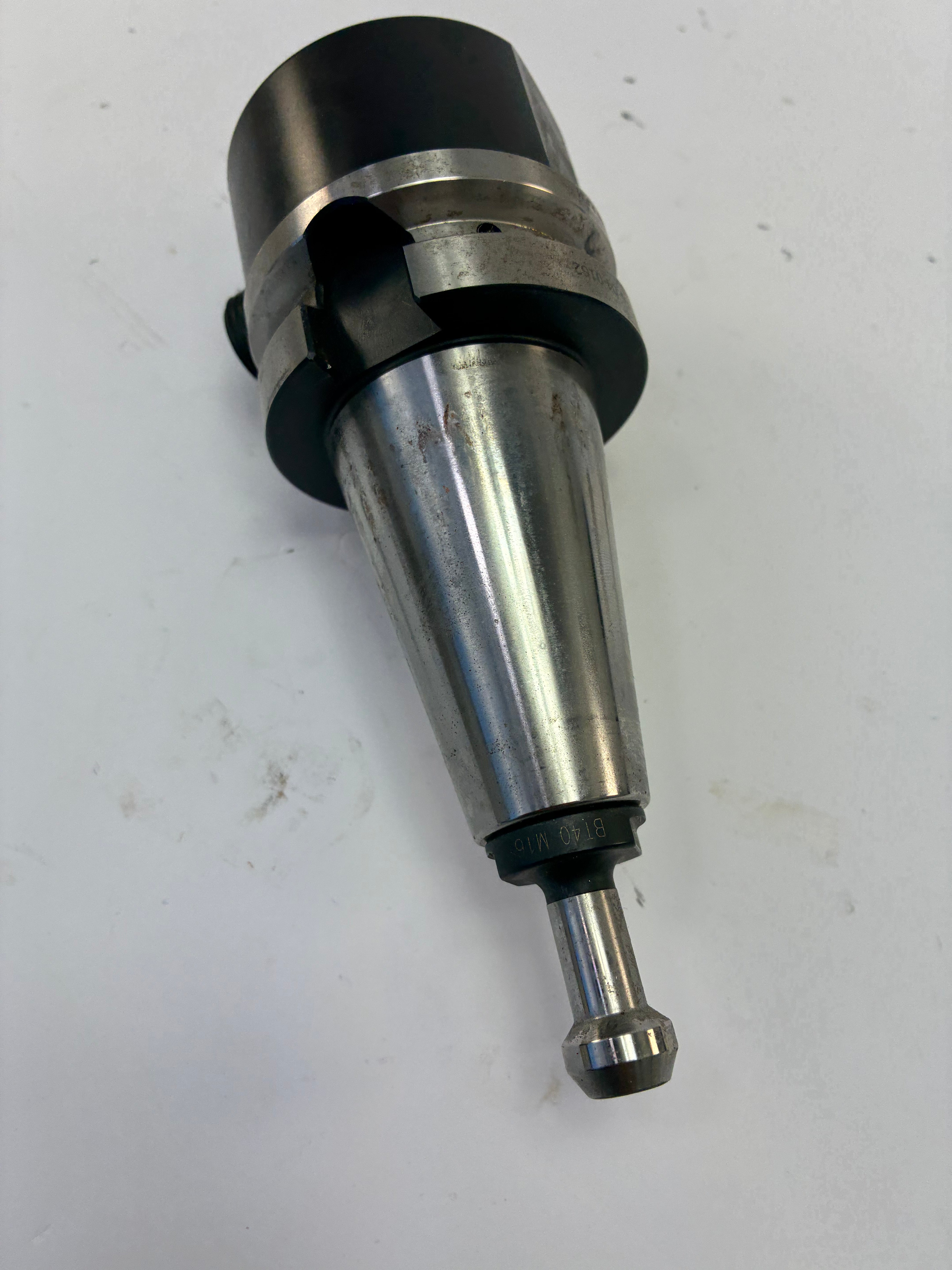

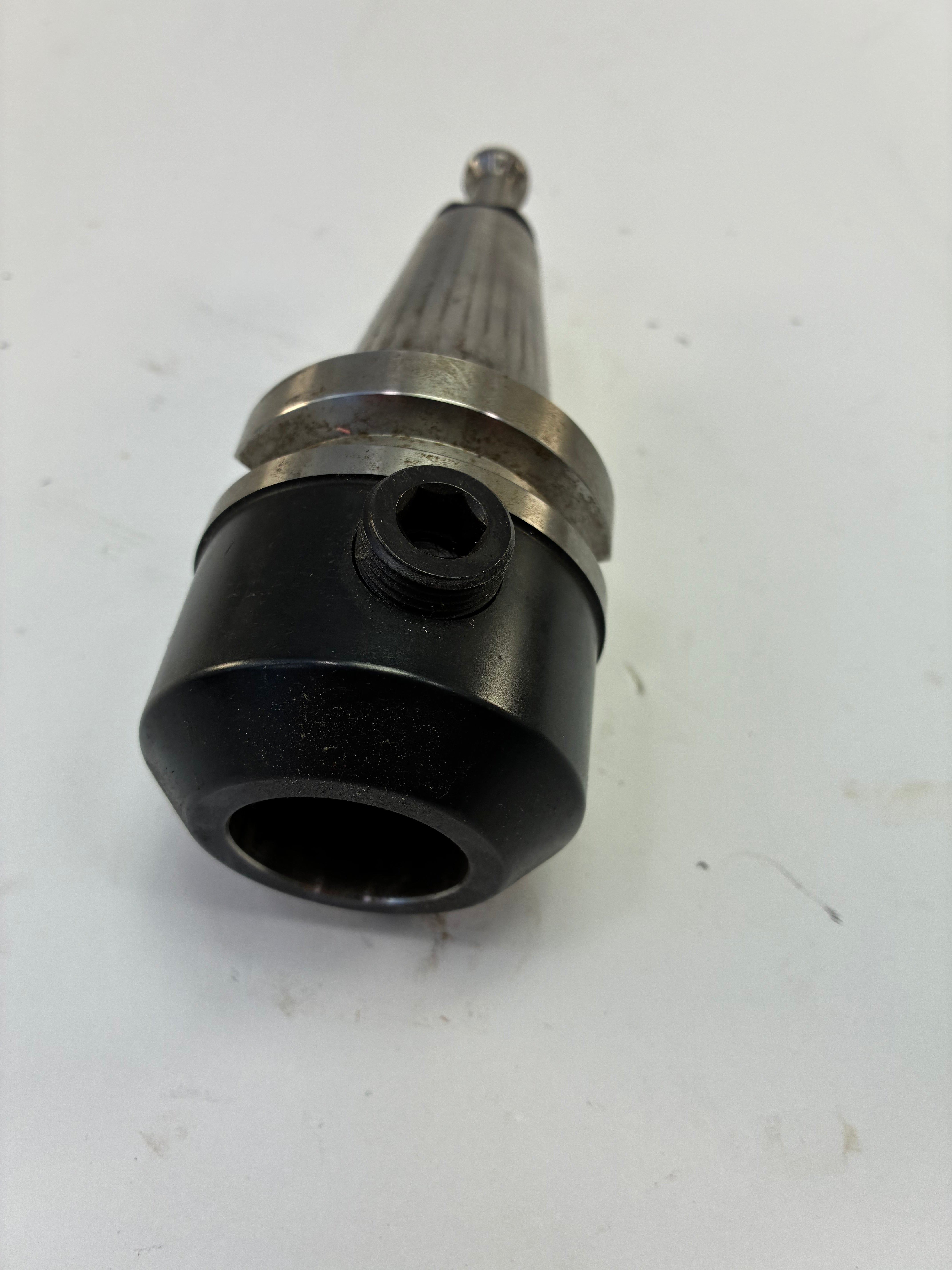

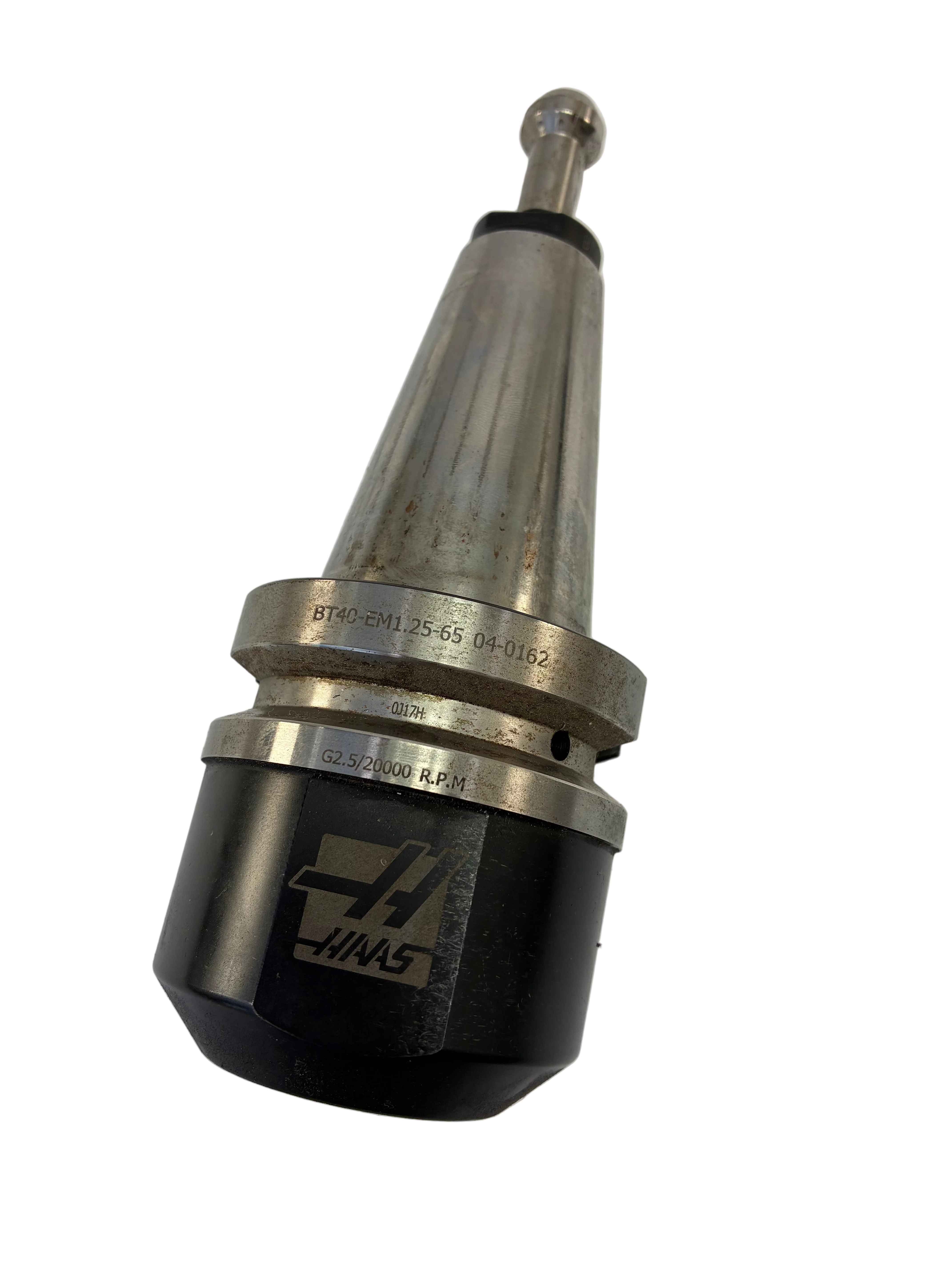

Genuine Haas BT40 end mill holder designed to securely hold cutting tools with a 1-1/4-inch Weldon-flat shank. This heavy-duty side-lock holder has a 65mm gauge length and is balanced for machining speeds up to 20,000 RPM.
Through-spindle coolant capable. Haas-style retention knob/pull stud is installed and included as pictured.
PRE-OWNED IN EXCELLENT CONDITION
HOLDER STICK OUT LENGTH: 2"
Specifications:
- Brand: Haas
- Part number: 04-0162

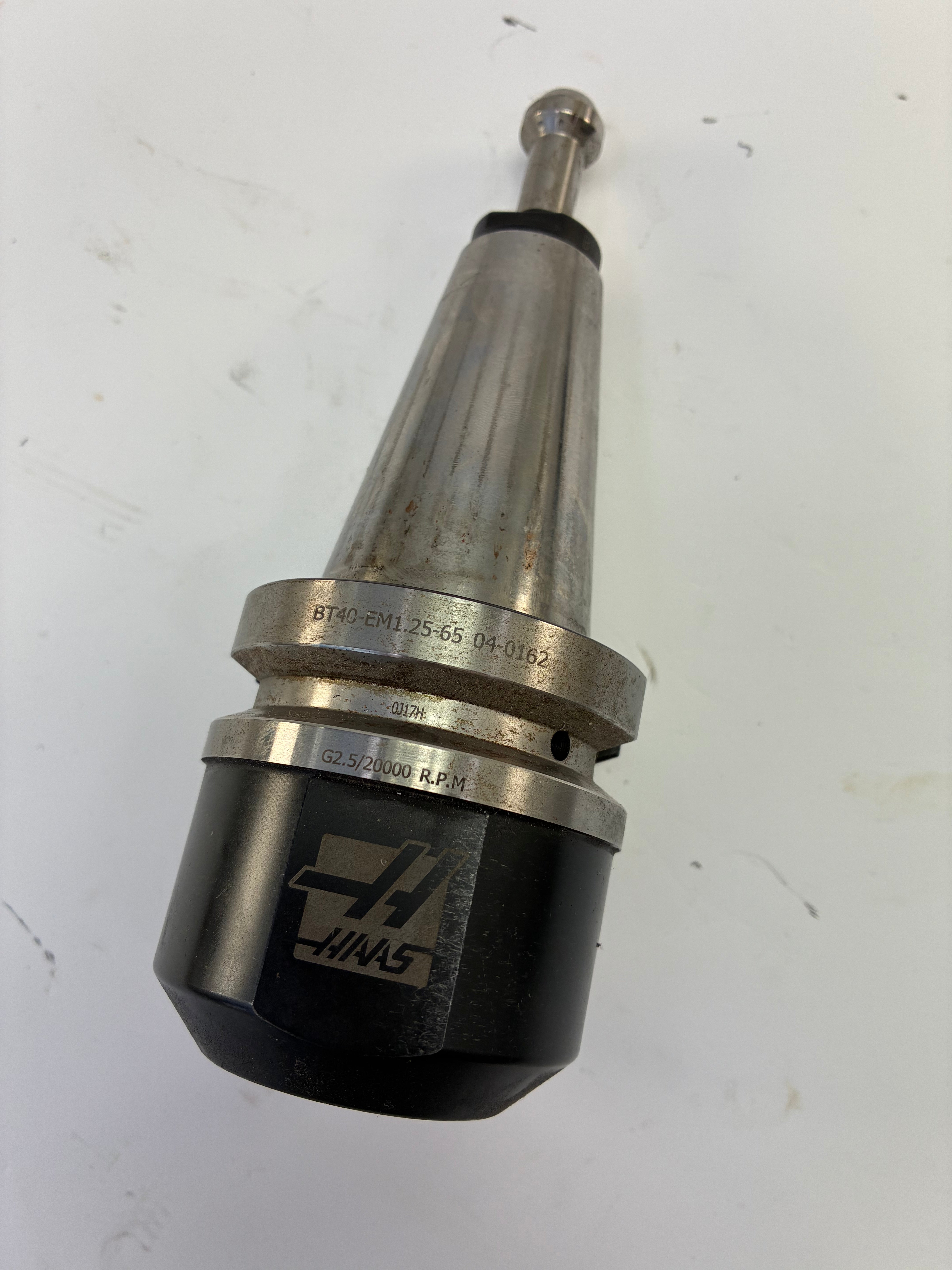

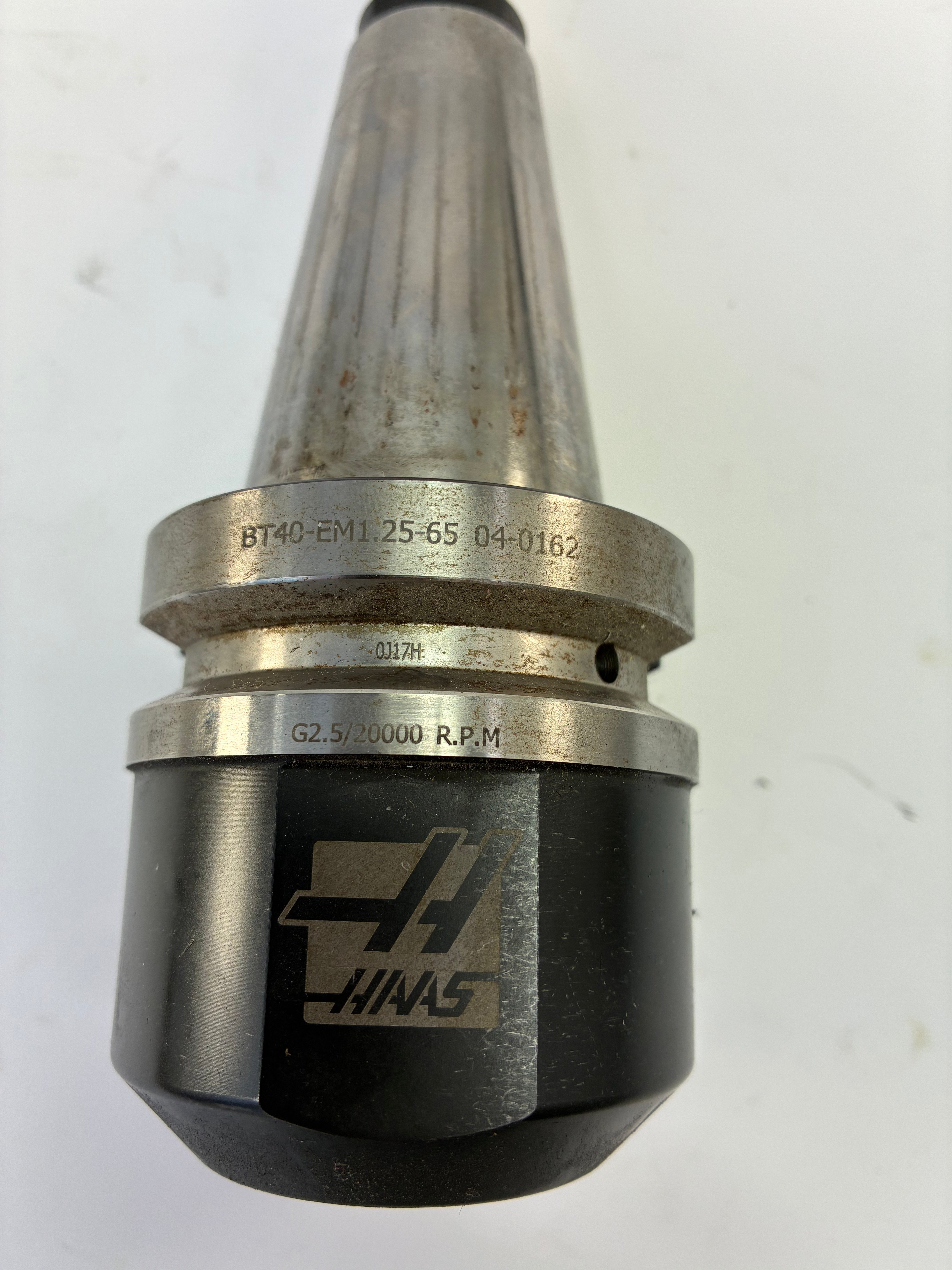

- Engraved model: BT40-EM1.25-65
- Holder type: End mill / Weldon side-lock holder
- Machine taper: BT40
- Bore diameter: 1.25 in / 1-1/4 in
- Gauge length: 65mm / 2.56 in
- Body diameter: 2.25 in
- Balance rating: G2.5 at 20,000 RPM
- Bore tolerance: H5
- Concentricity: 0.0002 in
- Side-lock thread: 3/4”-16
- Pull-stud thread: M16 × 2.0
- Coolant capability: Through-spindle coolant
- Holder weight: Approximately 3.1 lb
- Pull stud: Included as pictured
- Country of origin: China
Condition:
Pre-owned industrial tooling with scratches, discoloration, machining residue, and areas of surface oxidation from previous use and storage. The bore and taper should be cleaned and inspected before installation. Please examine all photos for the exact cosmetic condition.
Only the Haas tool holder and installed pull stud shown are included. Cutting tool and additional accessories are not included.
Buyers should verify BT40 spindle configuration, retention-knob compatibility, bore size, and gauge length before ordering.
