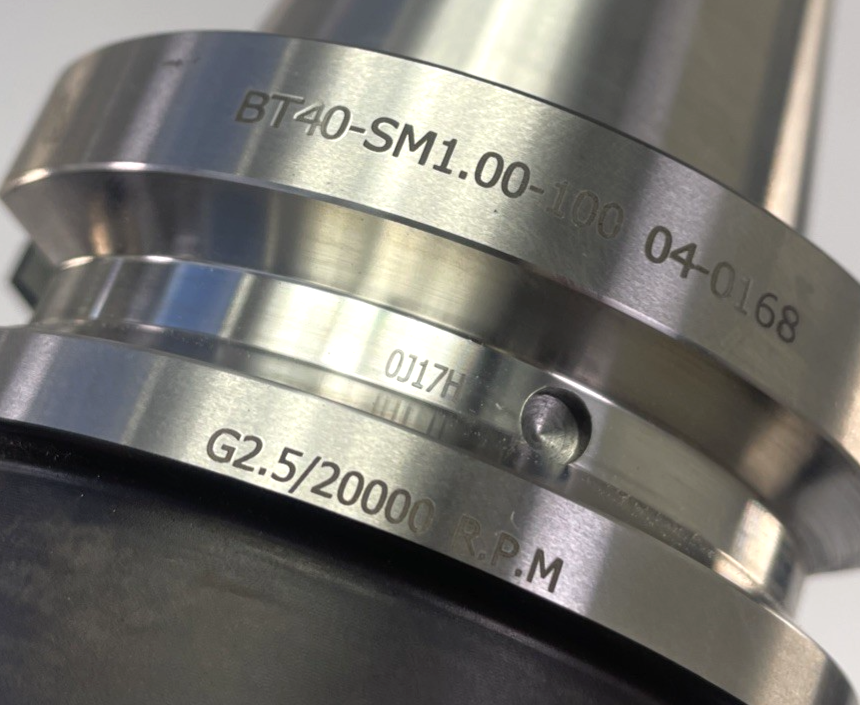

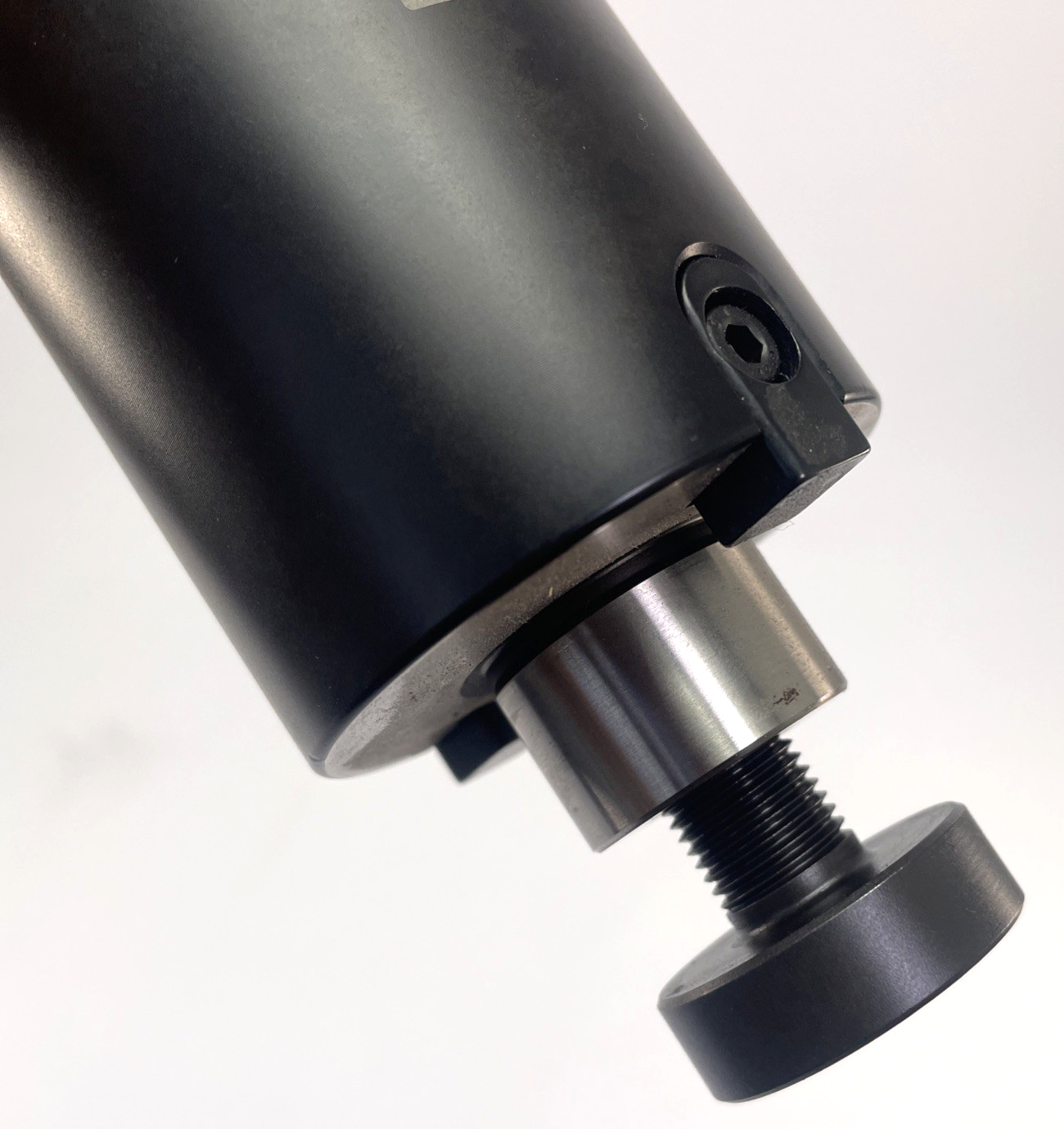

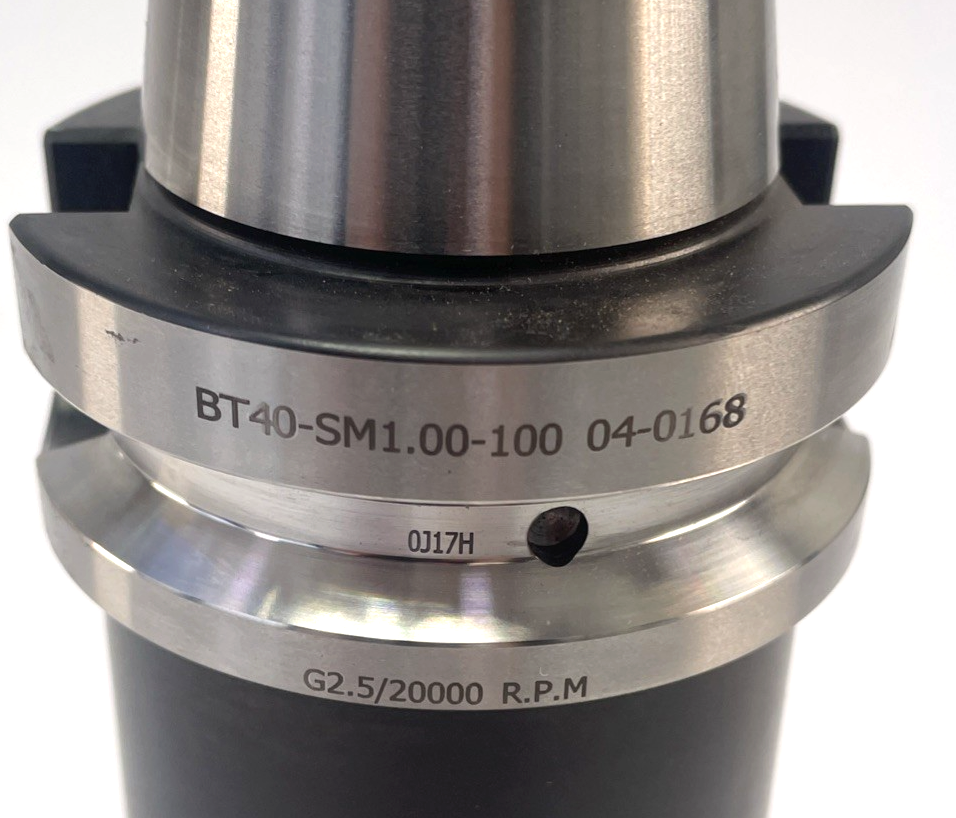

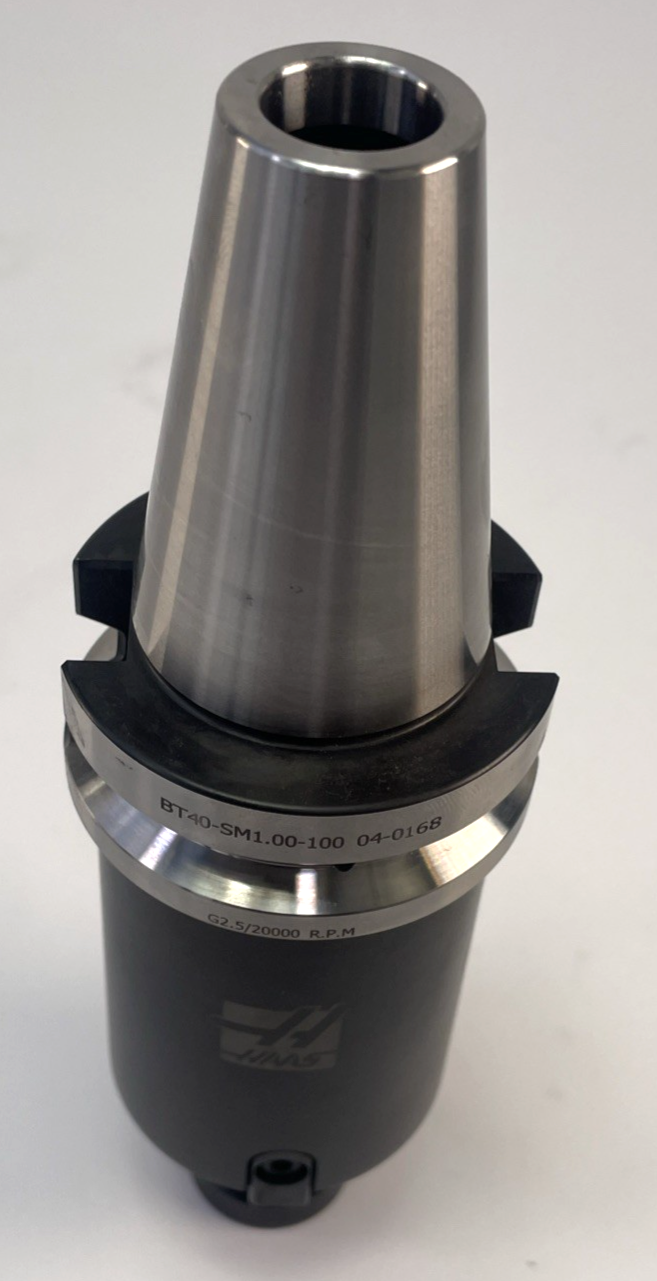

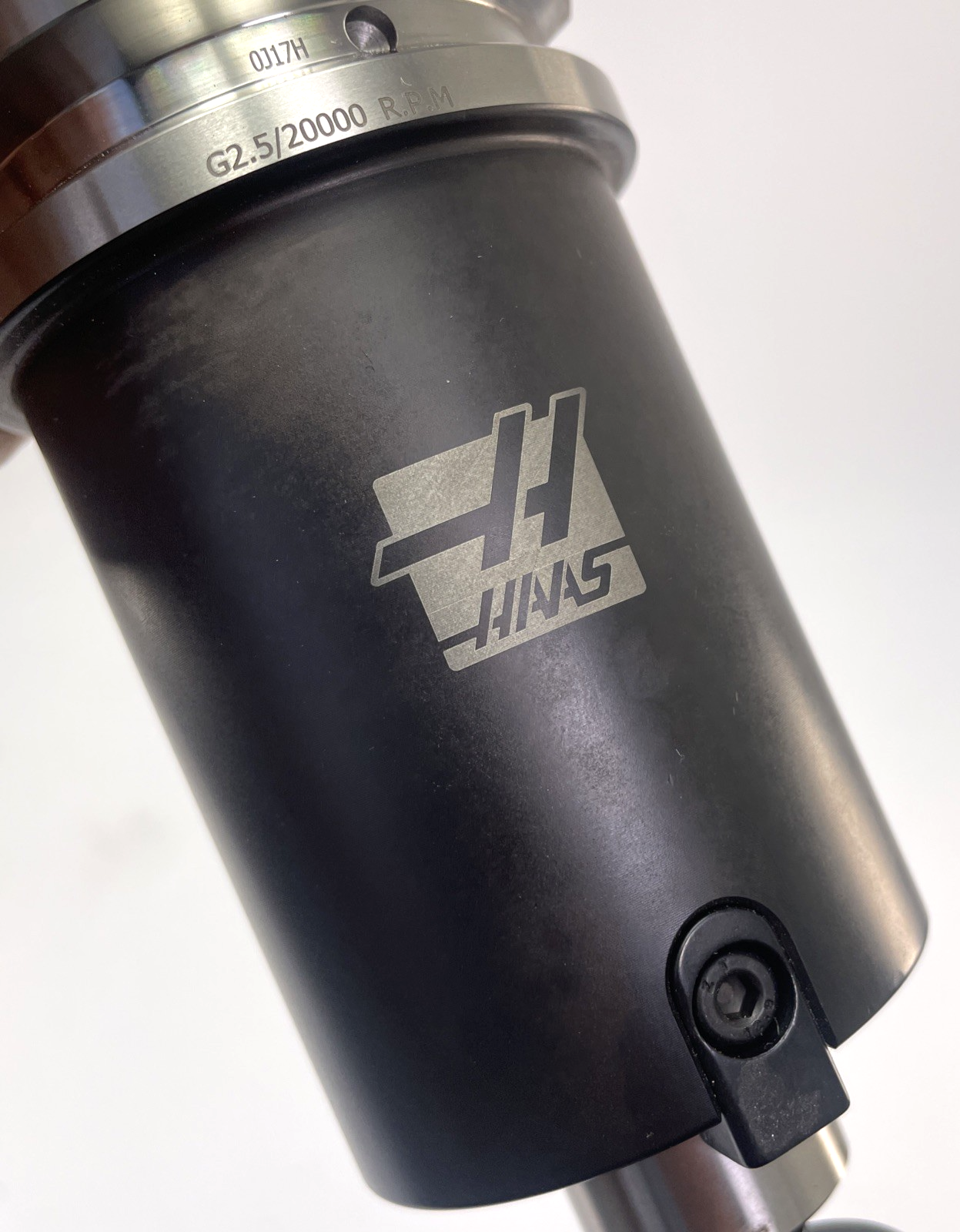

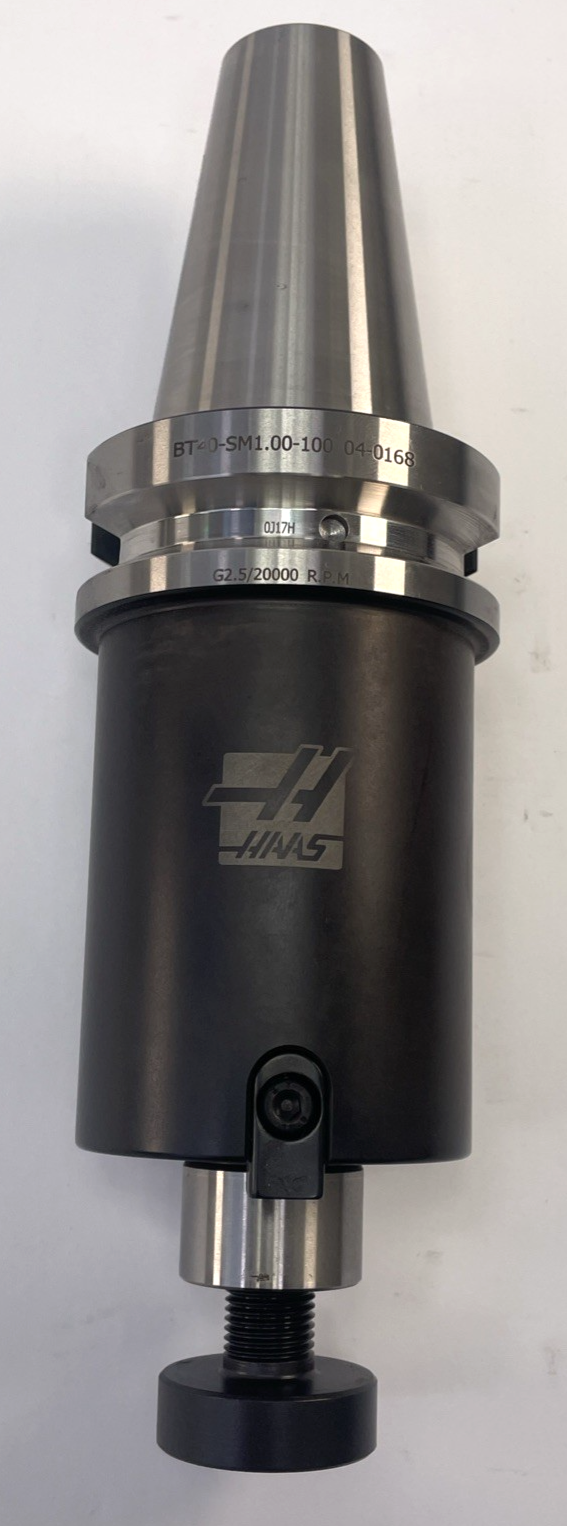

The Haas BT40-SM1.00-100 Shell Mill Holder is a precision CNC tooling component designed for compatible BT40 machine tool holders and spindle systems. This shell mill holder features a 1.00-inch configuration, 100mm specification, and G2.5 balancing, with a listed maximum speed of 20,000 RPM.
Designed for shell milling applications, this Haas tool holder provides a secure interface between compatible shell mills and CNC machine spindles. Its BT40 taper makes it suitable for compatible CNC machining centers and milling machines requiring BT40 tooling.
The Haas BT40-SM1.00-100 Shell Mill Holder is suitable for CNC milling, production machining, precision cutting, tooling replacement, maintenance, and professional machine shop applications. Please verify the BT40 spindle compatibility, shell mill specifications, dimensions, RPM requirements, retention system, and overall condition before installation.
Key Features
-
100mm: Includes the specified 100mm dimension for tooling identification.
-
G2.5: G2.5 balancing supports precision and high-speed machining applications.
-
BT40: Designed for CNC machines and spindle systems using the BT40 taper standard.
-
Shell Mill Holder: Designed for compatible shell milling cutters and machining applications.
-
Haas: Professional CNC tooling component for compatible Haas and other BT40 machine systems.
-
04-0168G2.5: Specific part number supports accurate product identification and replacement sourcing.
- 20K RPM: Rated for speeds up to 20,000 RPM when used within compatible machine and tooling requirements.
Specifications
-
Size: 1.00
- Brand: Haas
-
Length: 100mm
- Part Number: 04-0168G2.5
- Tool Holder Type: Shell Mill Holder
