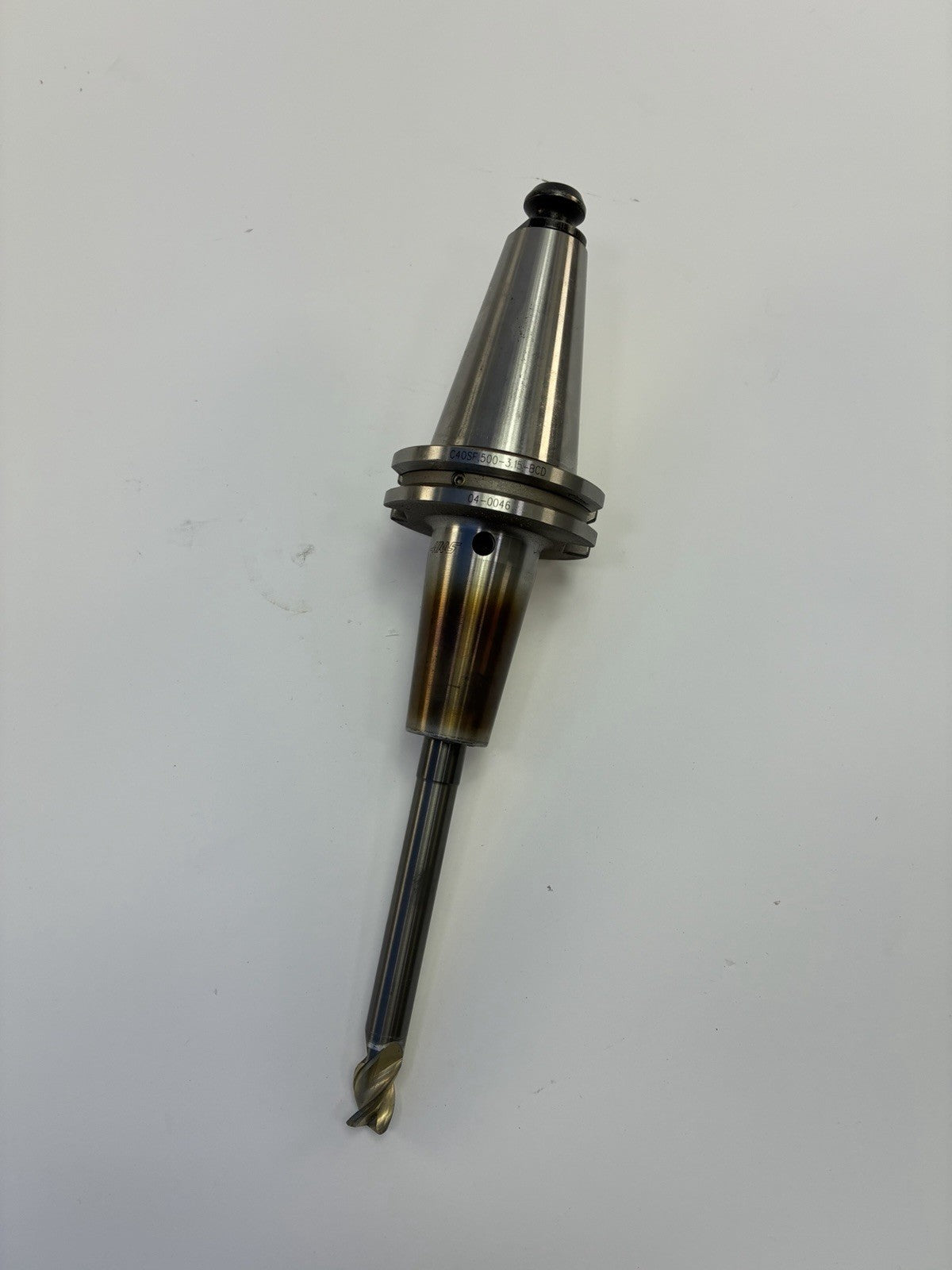

Genuine Haas CT40/CAT40 shrink-fit tool holder with an installed long-reach cutting tool and retention knob.
Specifications:
• Brand: Haas

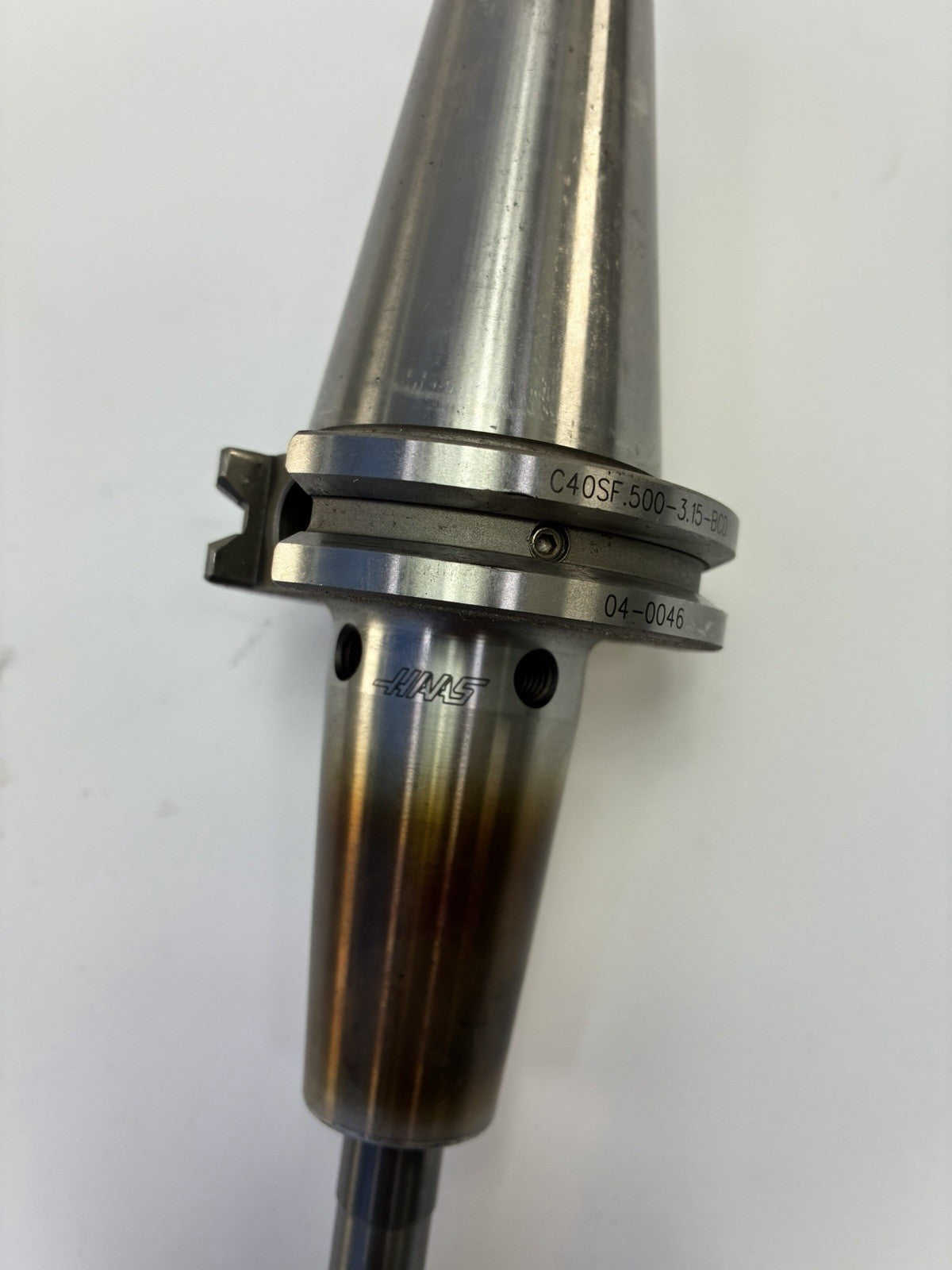

• Haas part number: 04-0046

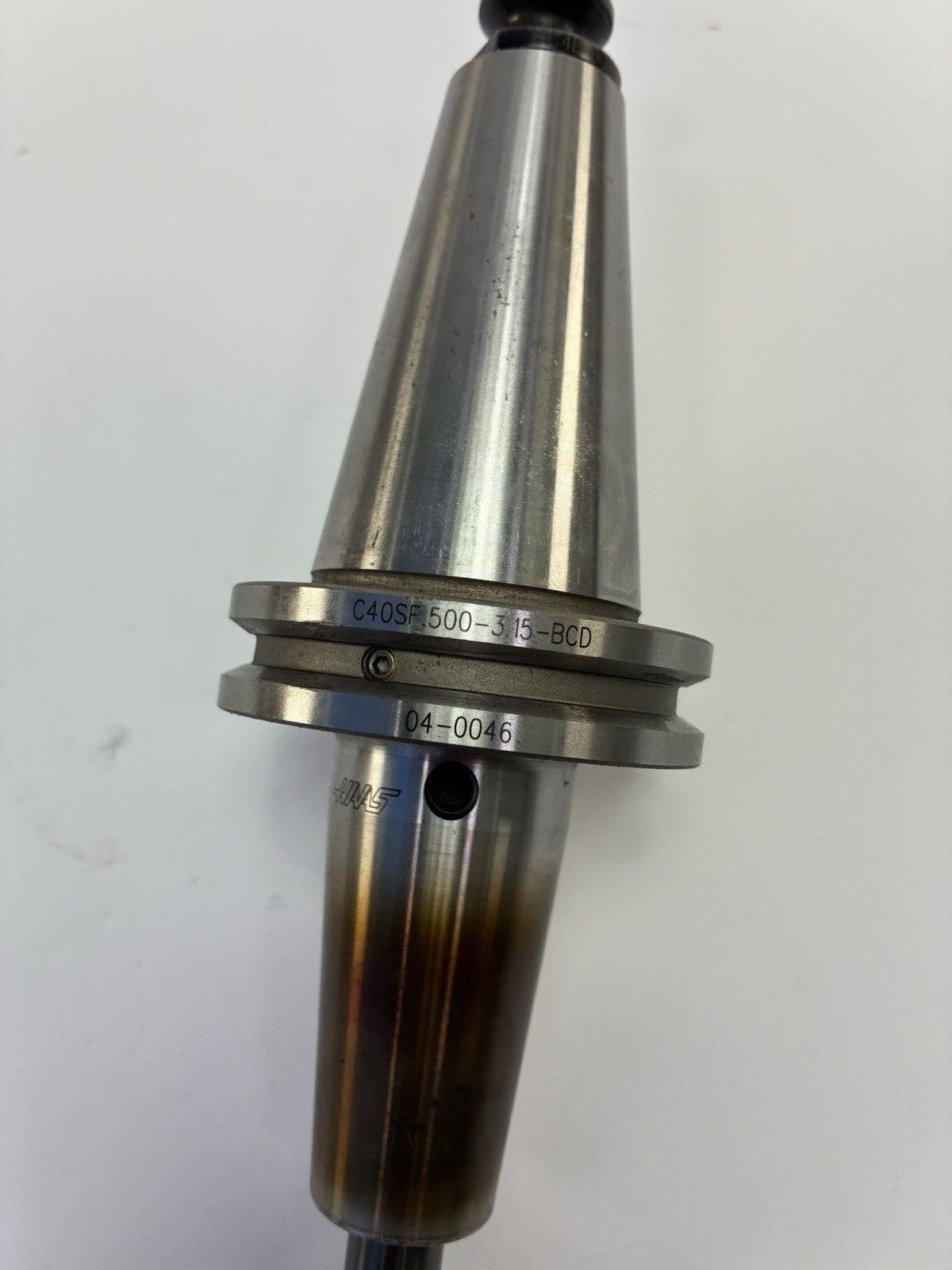

• Model: C40SF.500-3.15-BCD
• Machine taper: CT40 / CAT40
• Bore diameter: 0.500 inch / 1/2 inch
• Gage length: 3.15 inches

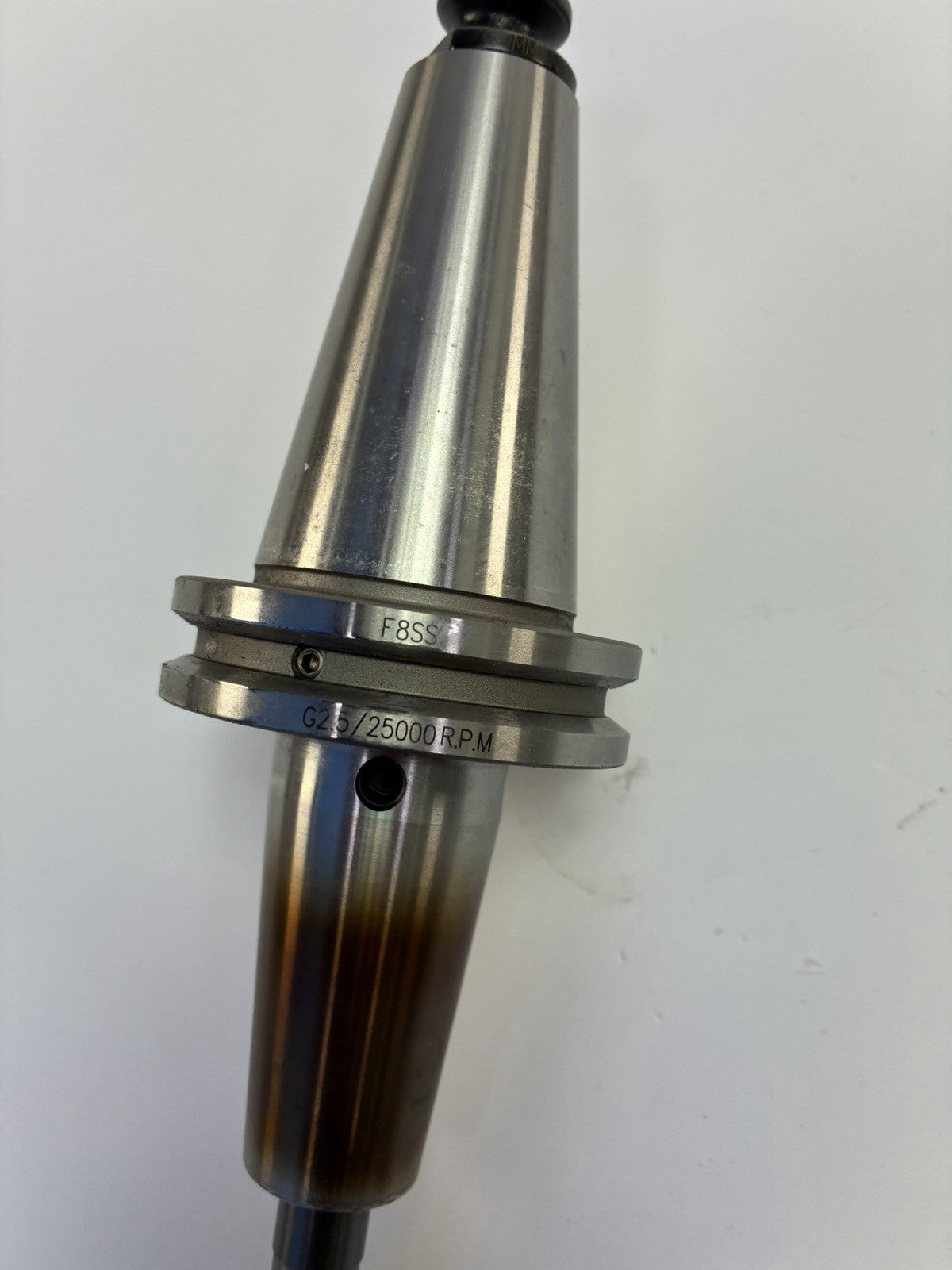

• Balance rating: G2.5 at 25,000 RPM
• Through-spindle coolant capable
• Identification marking: F8SS
Pre-owned and showing signs of previous industrial use, including scratches, staining, minor oxidation, residue, and pronounced heat discoloration around the shrink-fit nose. Please examine all photographs carefully for the exact cosmetic condition.

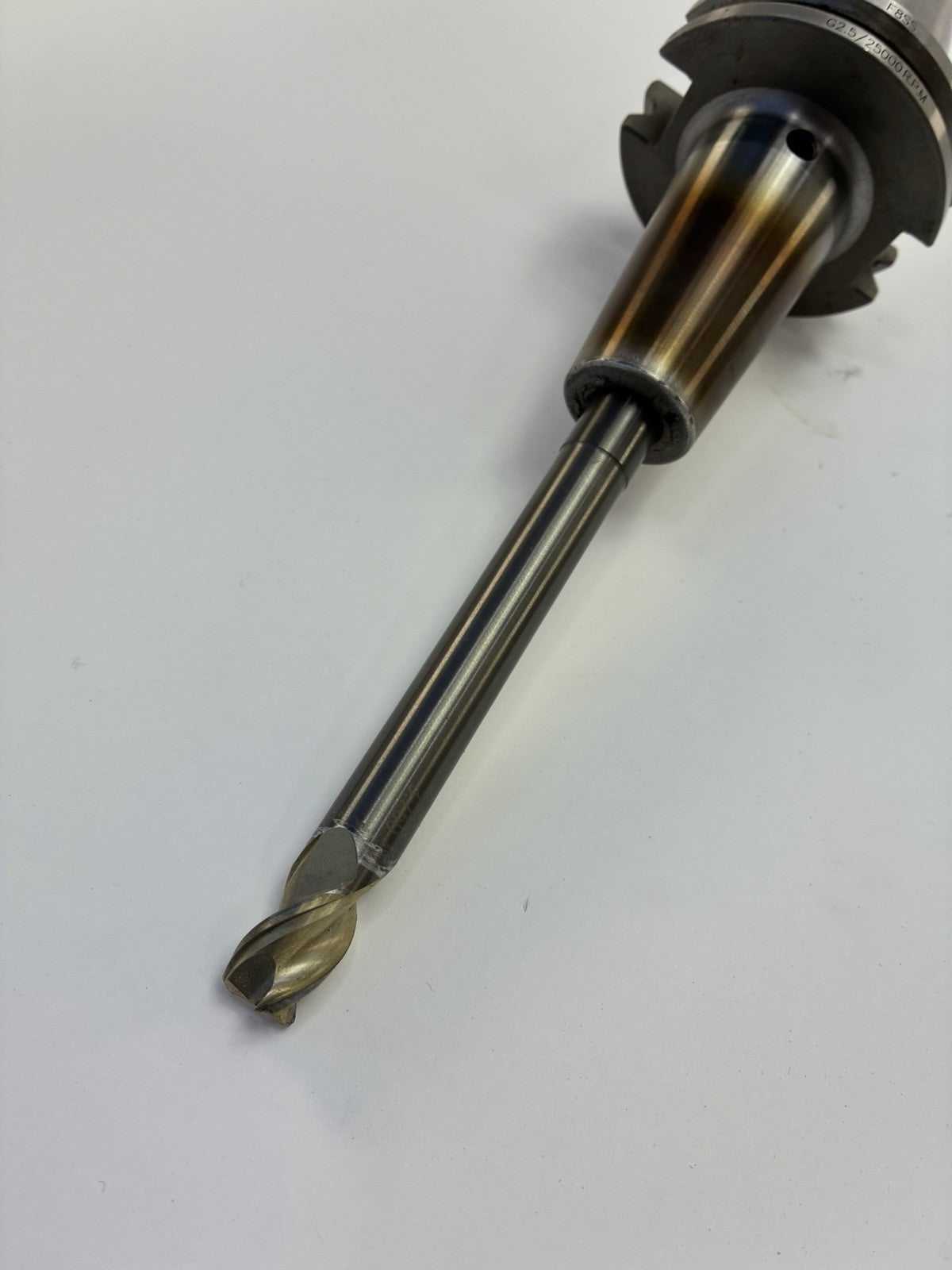

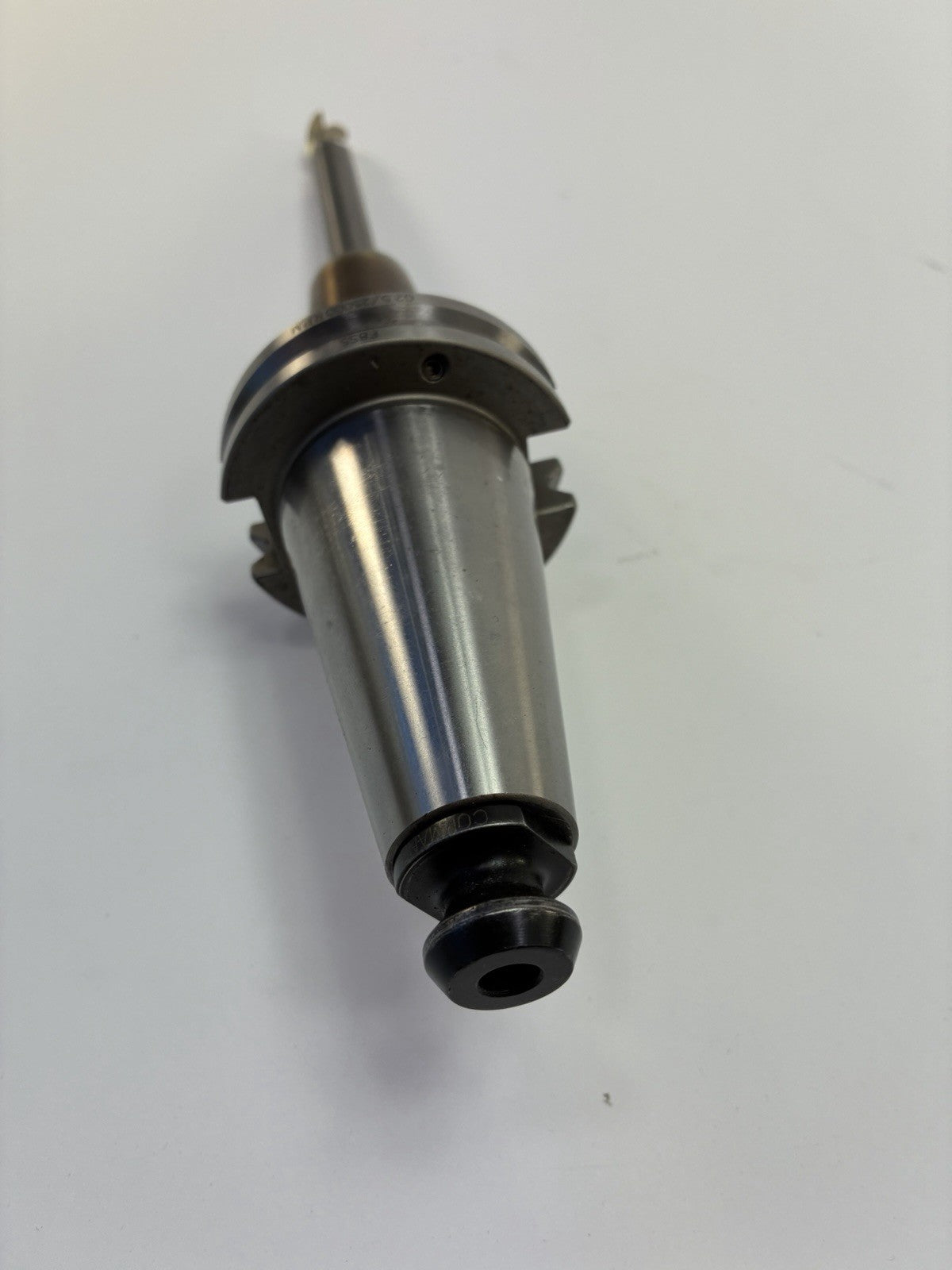

The installed long-reach cutting tool and retention knob are included as pictured. The cutter’s exact specifications, sharpness, and remaining service life have not been verified. The holder has not been checked for runout or dimensional accuracy.
Buyer is responsible for confirming spindle, retention-knob, cutting-tool, coolant, and machine compatibility.
Sold exactly as pictured.
Item specifics:
| Field | Information |
|---|---|
| Brand | Haas |
| MPN | 04-0046 |
| Model | C40SF.500-3.15-BCD |
| Holder type | Shrink-fit tool holder |
| Machine taper | CT40 / CAT40 |
| Bore diameter | 0.500 in / 1/2 in |
| Gage length | 3.15 in |
| Balance rating | G2.5 |
| Maximum rated speed | 25,000 RPM |
| Coolant capability | Through-spindle coolant |
| Included | Long-reach cutter and retention knob |
