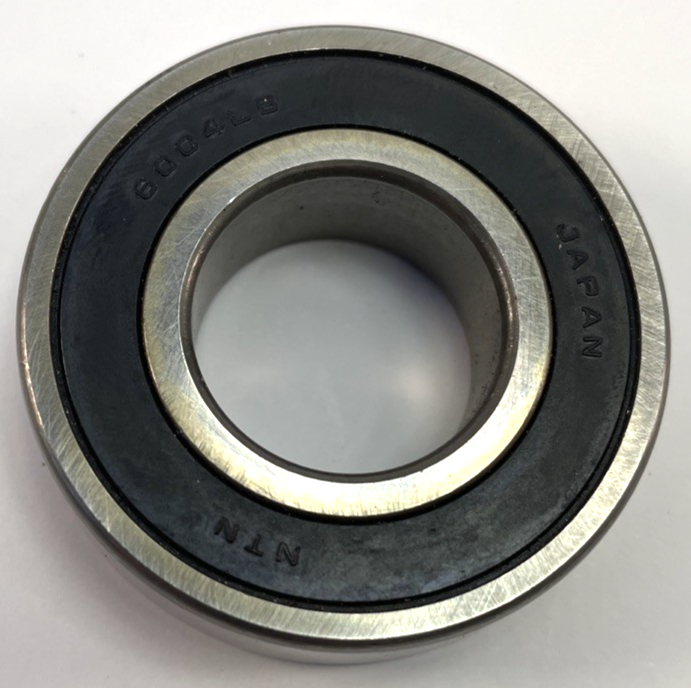

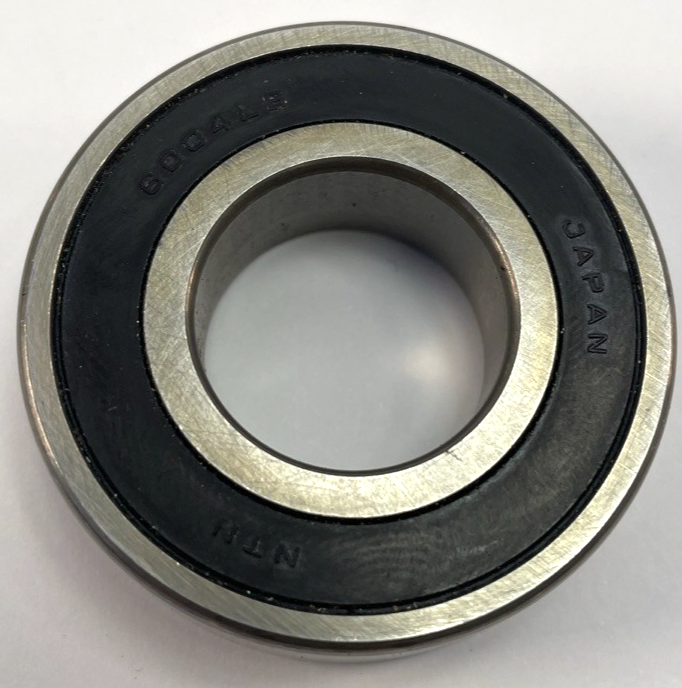

NTN Precision Ball Bearings 6004LB Single Row Ball Bearing JAPAN
Type |
Deep Groove Ball Bearing |
Bore Type |
Round |
Material |
High Carbon Chrome Steel |
Cage Type |
Pressed |
Cage Material |
Steel |
Ball Material |
Steel |
Limiting Speed - Oil |
21000 RPM |
Limiting Speed - Grease |
18000 RPM |
Seal Type |
Non-Contact |
Seal Material |
Nitrile Rubber |
Precision |
ISO Class 0 |
Configuration |
One |
Factor |
38.0 |
Radial Internal Clearance |
CN |
Static Load Rating |
1140 lbf5050 N5.05 kN |
Dynamic Load Rating |
2330 lbf10400 N10.40 kN |
Enclosure |
Single Sealed |
Weight |
0.146 lb0.066 kg |
Operating Temperature Range |
-40 to 250 ºF-40 to 120 ºC |
