- in great condition
- acquired from a Hollywood studio
- professionally packaged for safe free shipping with UPS ground

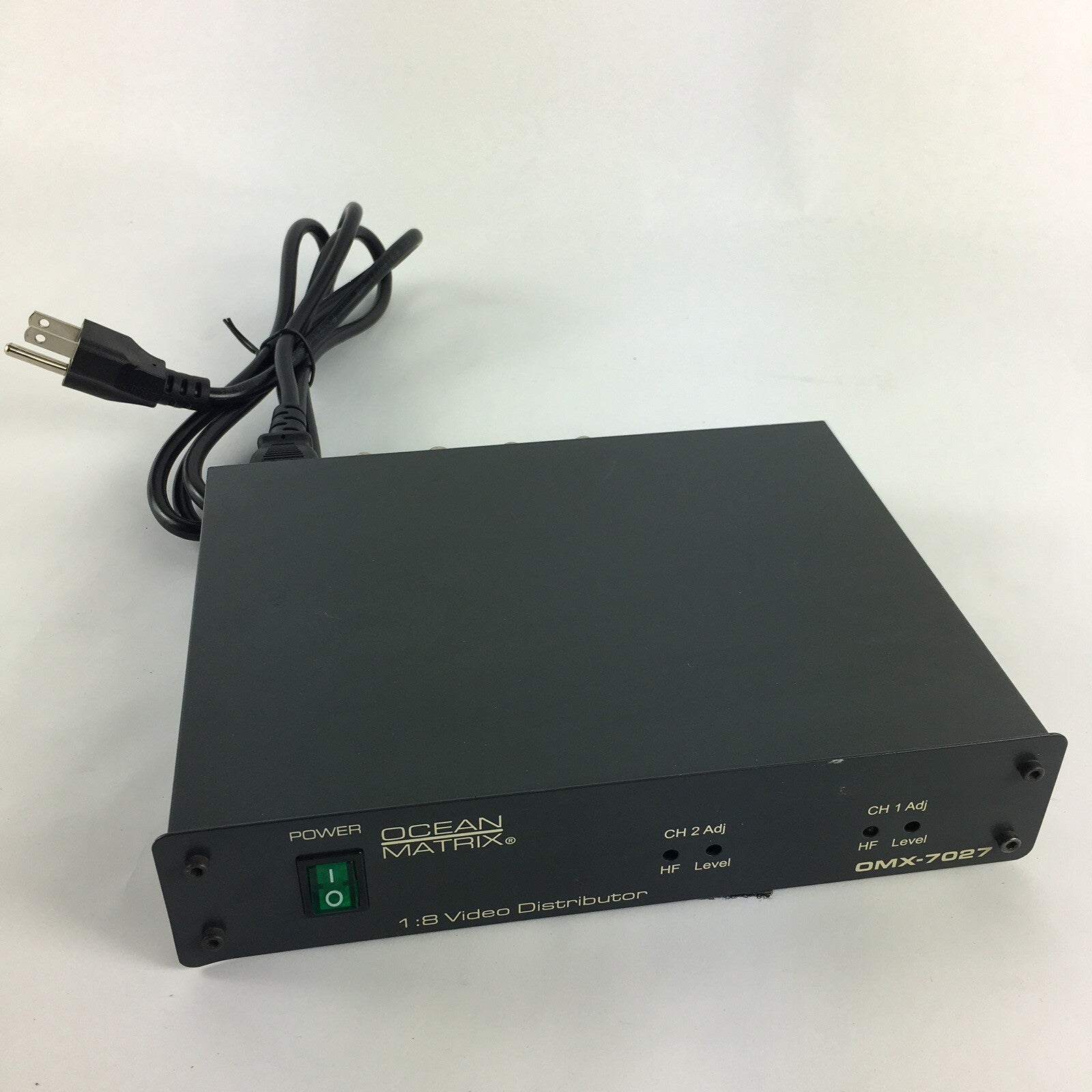

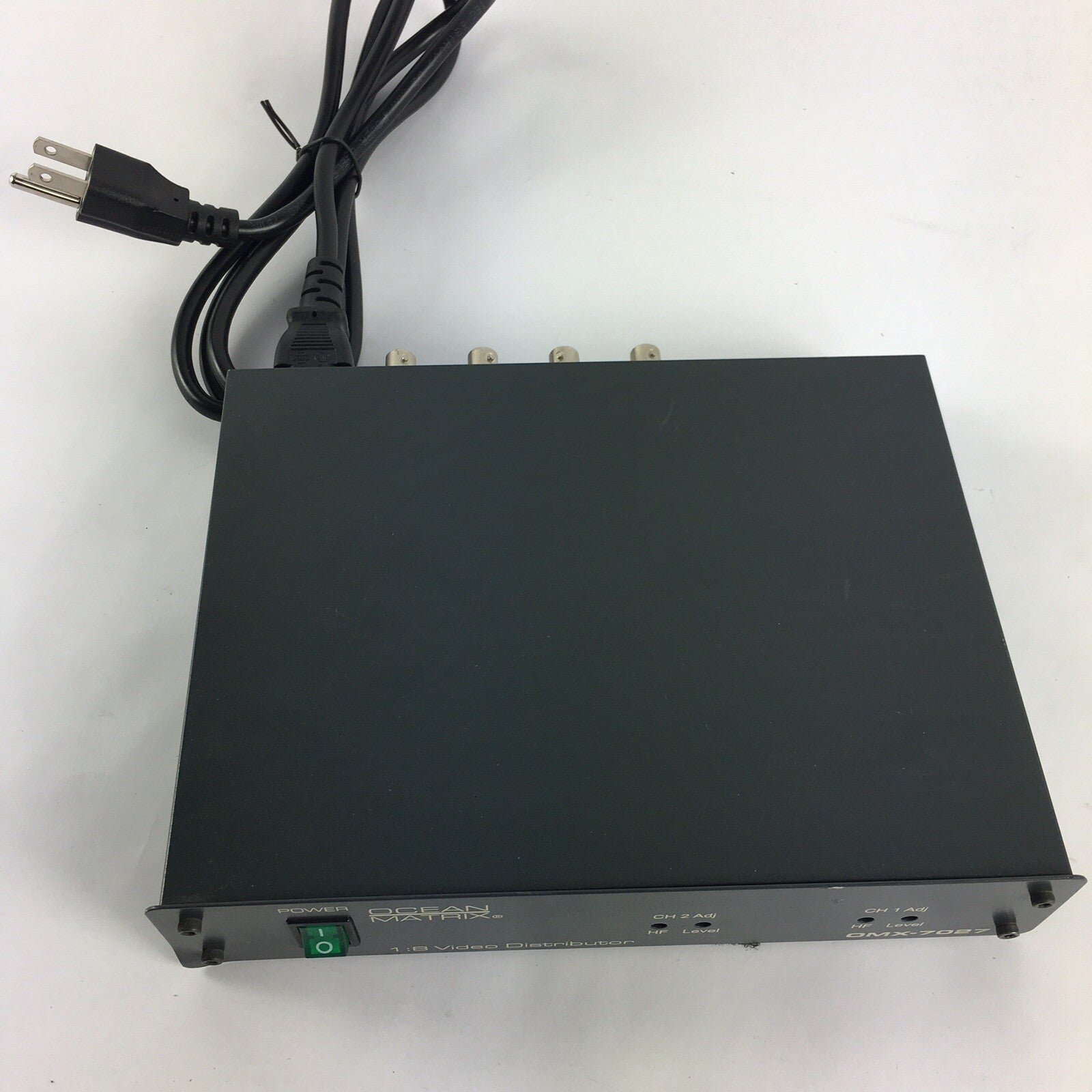

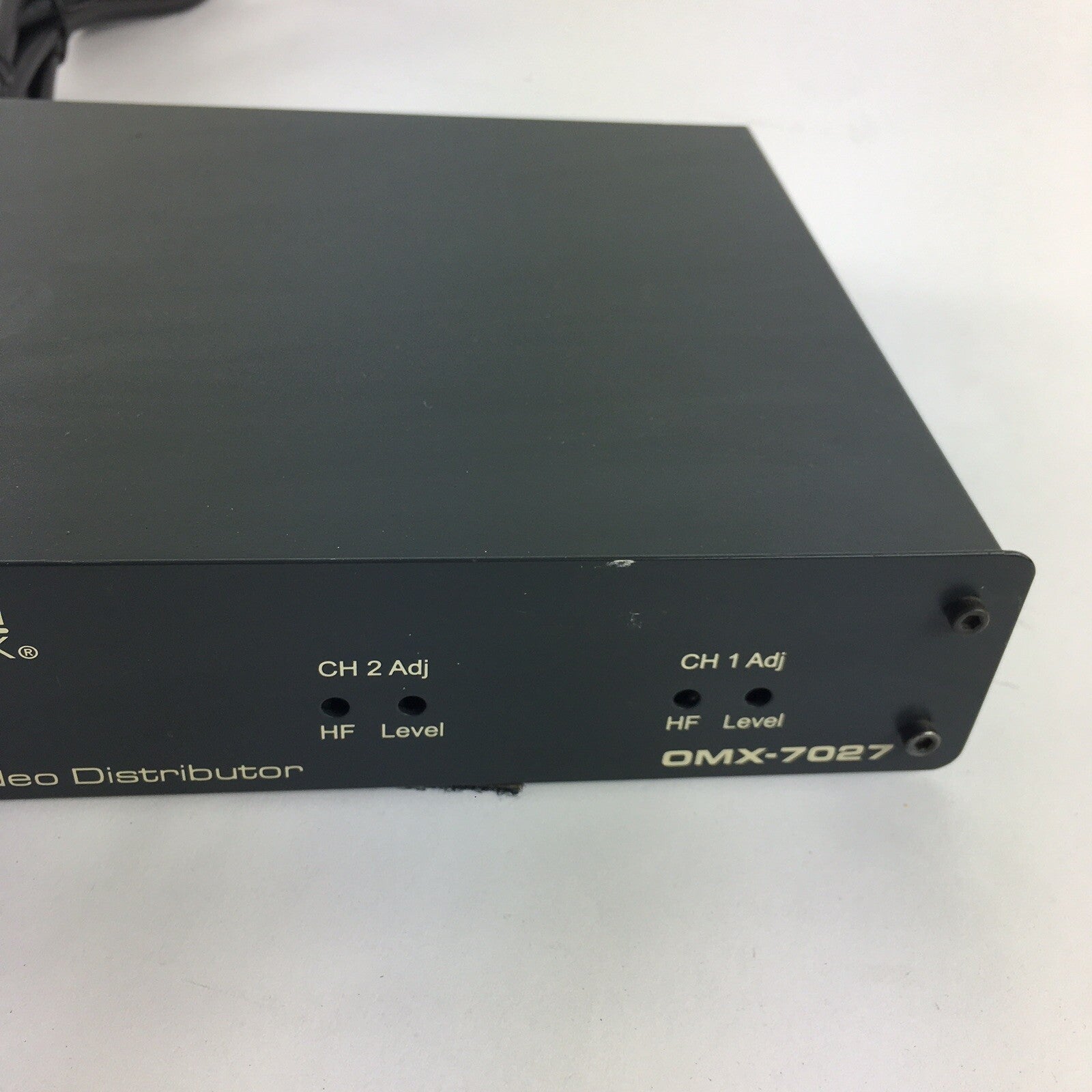

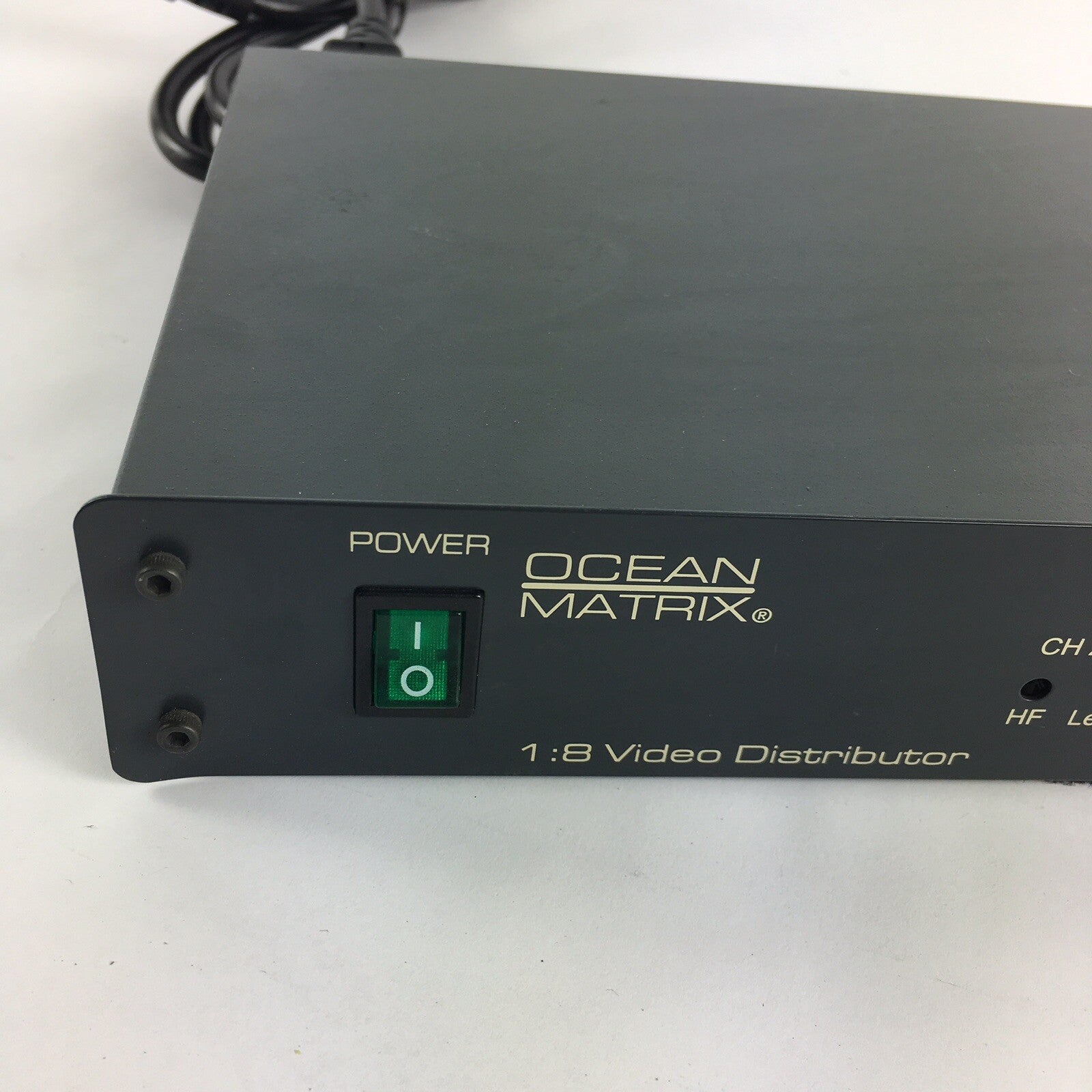

The OMX-7027 is a Broadcast quality, state-of-the-art Video Distribution Amplifier designed for Analog and Digital (SDI) applications, such as broadcast and production studios. The OMX-7027 has two looping video inputs, each splitting the input source into four identical outputs. The OMX-7027 can function as a 1x8 DA or as two 1x4 DAs. It has trimmers on the front panel to fine tune the levels of each channel individually. Units come in a convenient, compact size enclosure. Any two units will fit side by side in a 19 inch rack, and a special 1U-rack adapter is available for that purpose.
Features:
- High Bandwidth - 330MHz (-3dB).
Level (Gain) and EQ (Peaking) Controls.
Dual-Mode - Configure as either a 1: 8 (Composite) or 1:4 (s-Video) DA.
Video AC/DC Coupling - Internally Selectable.
Companion Unit to the VM-80A Audio DA.
Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-80N adapter.
Specifications:

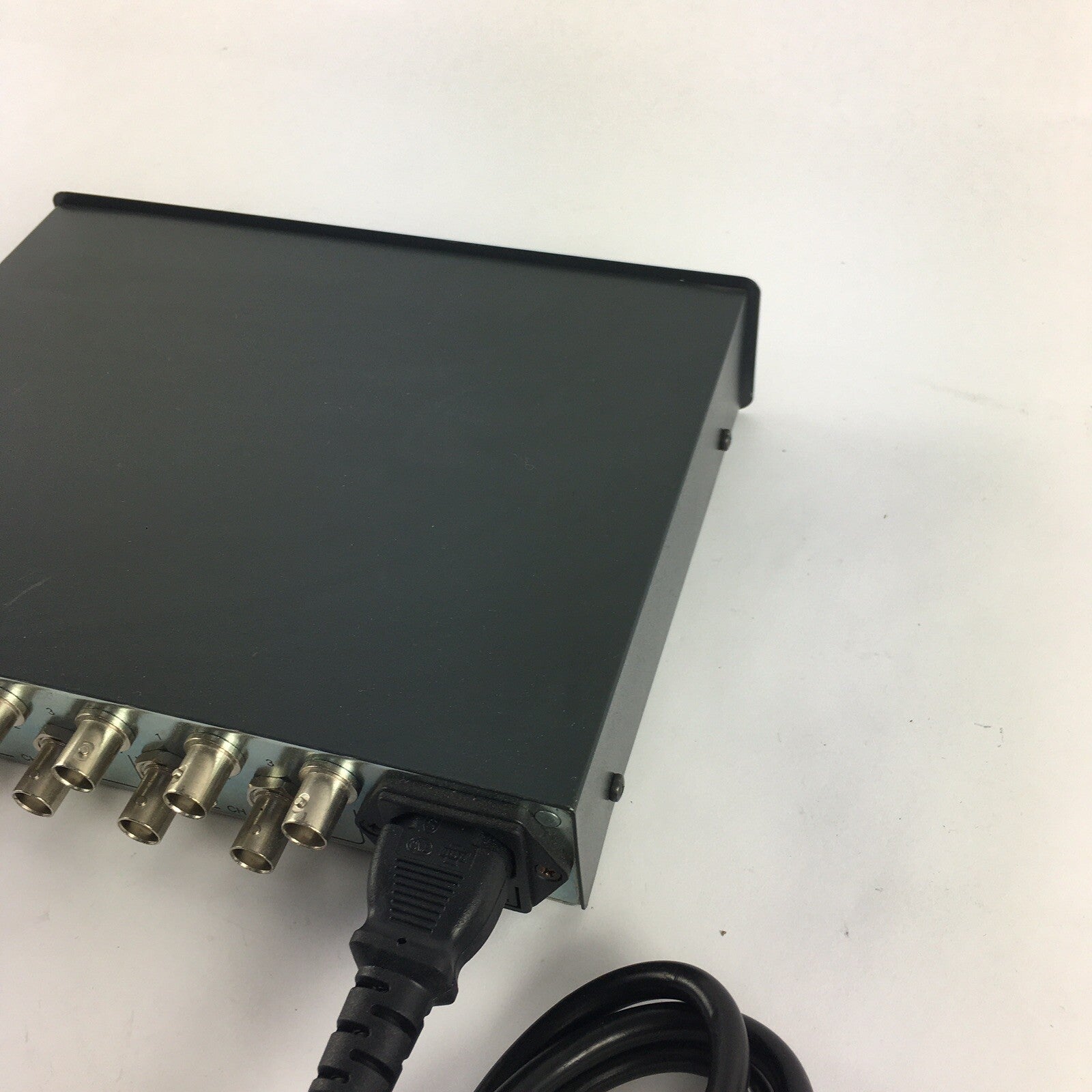

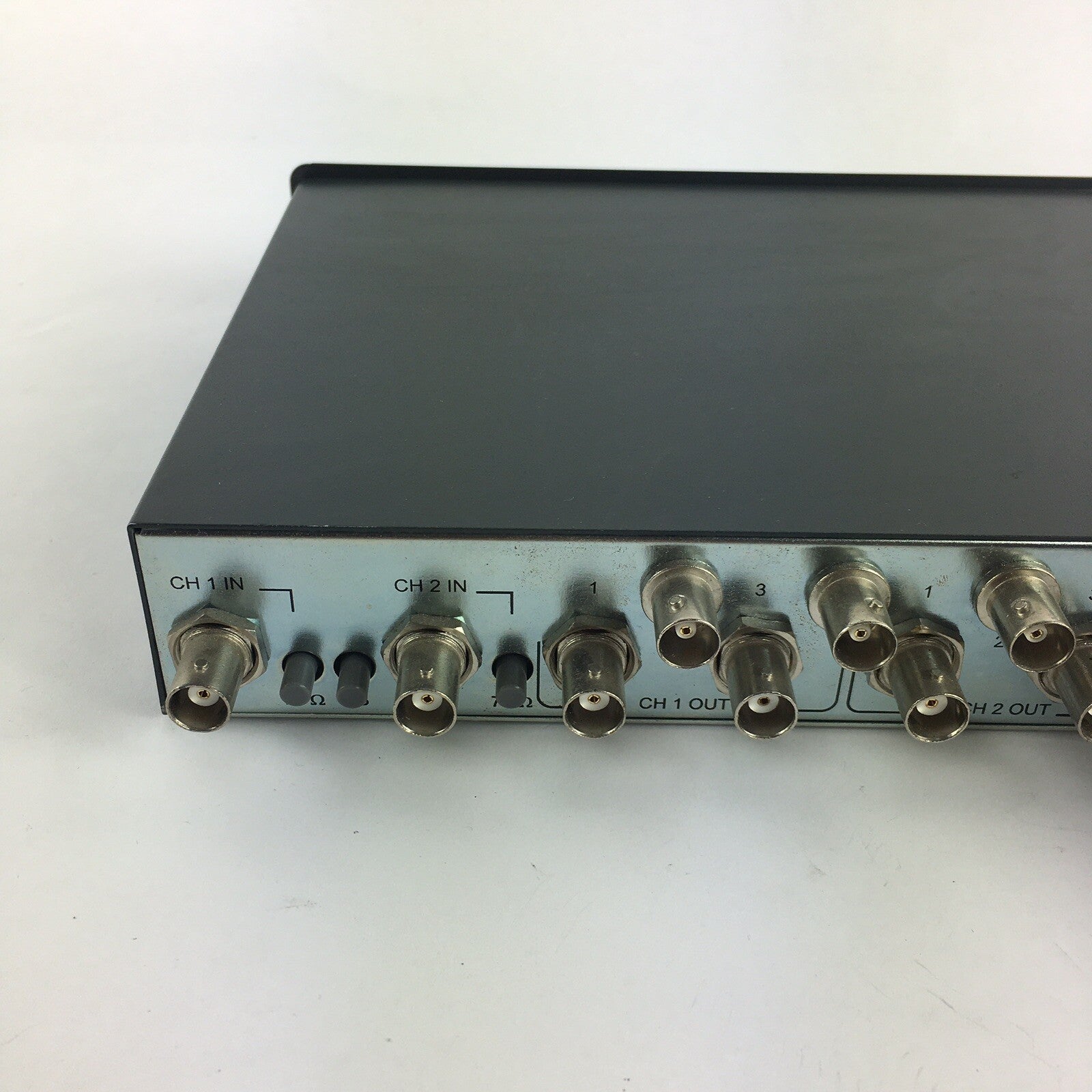

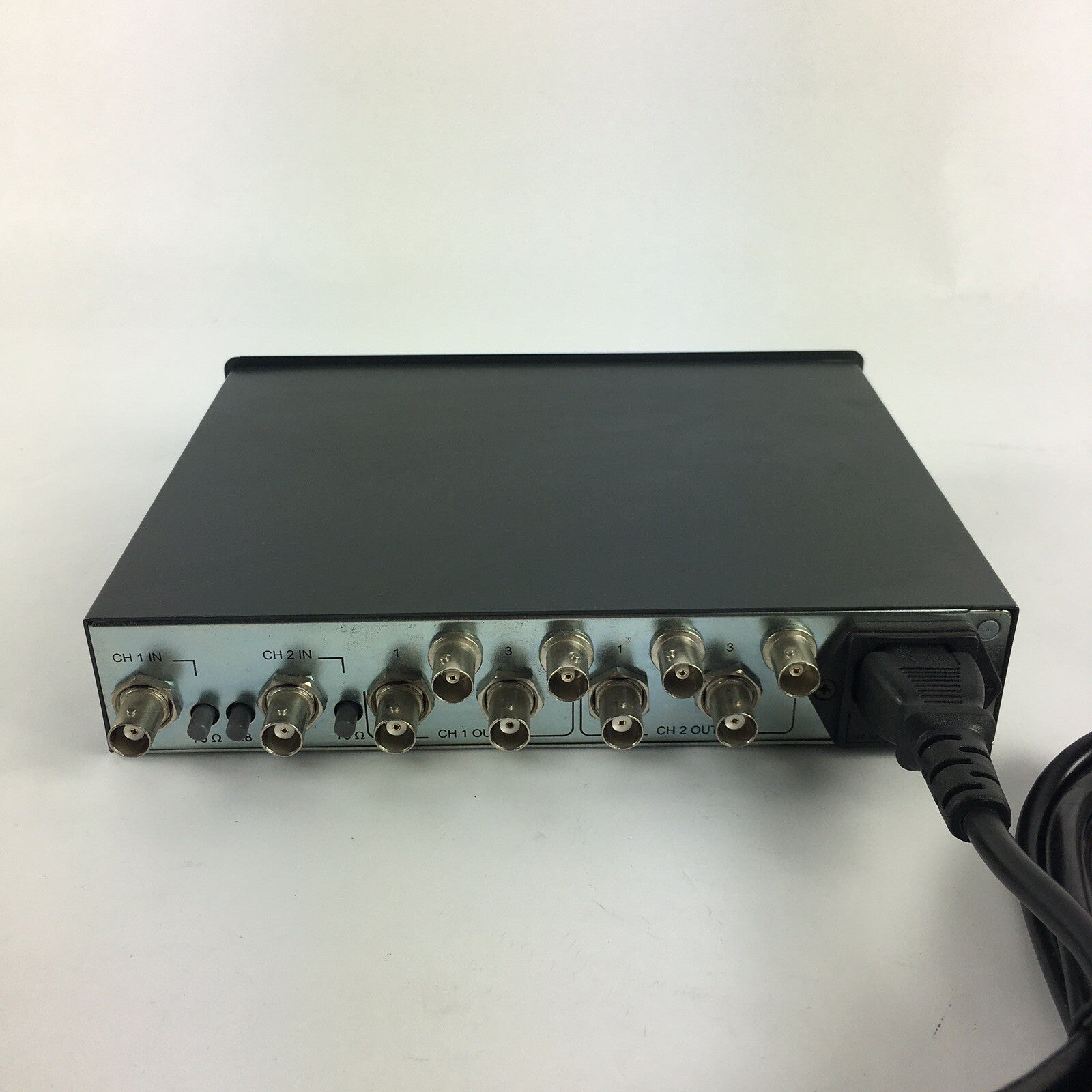

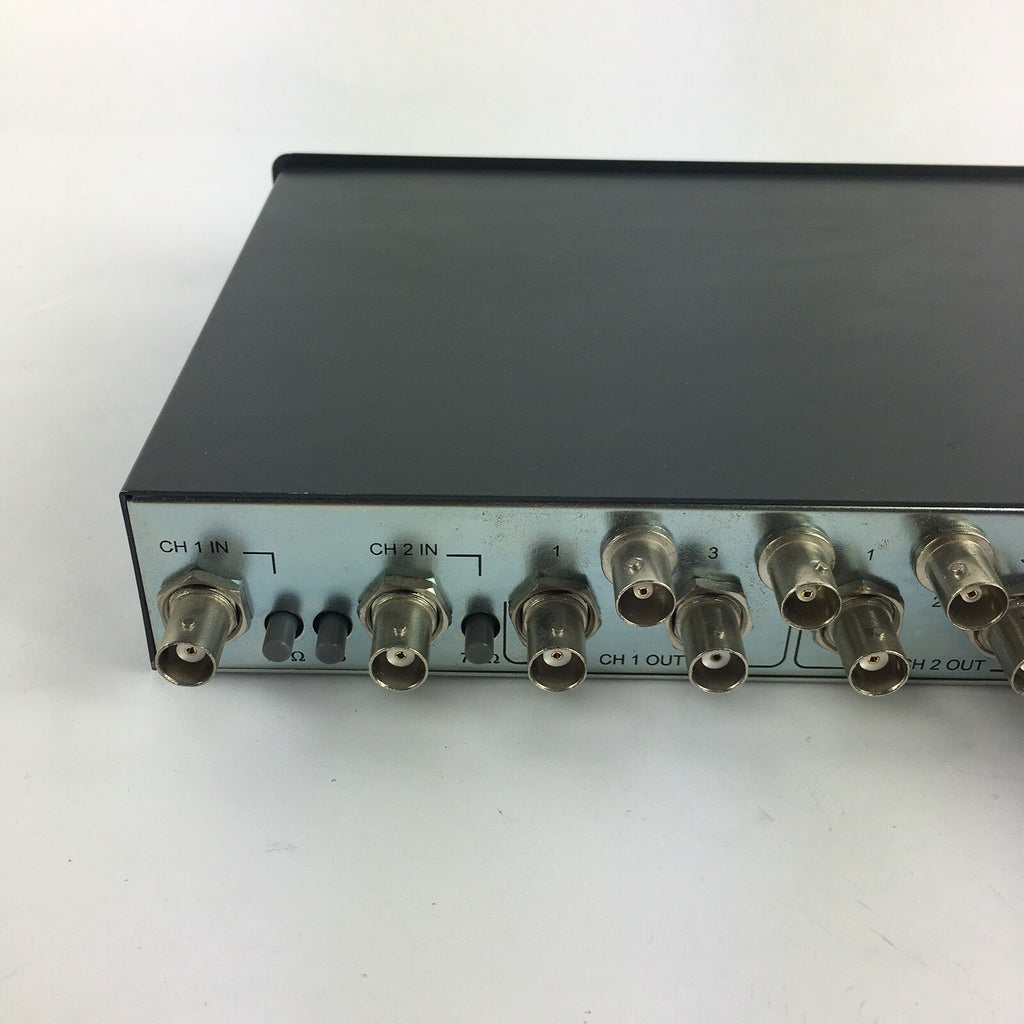

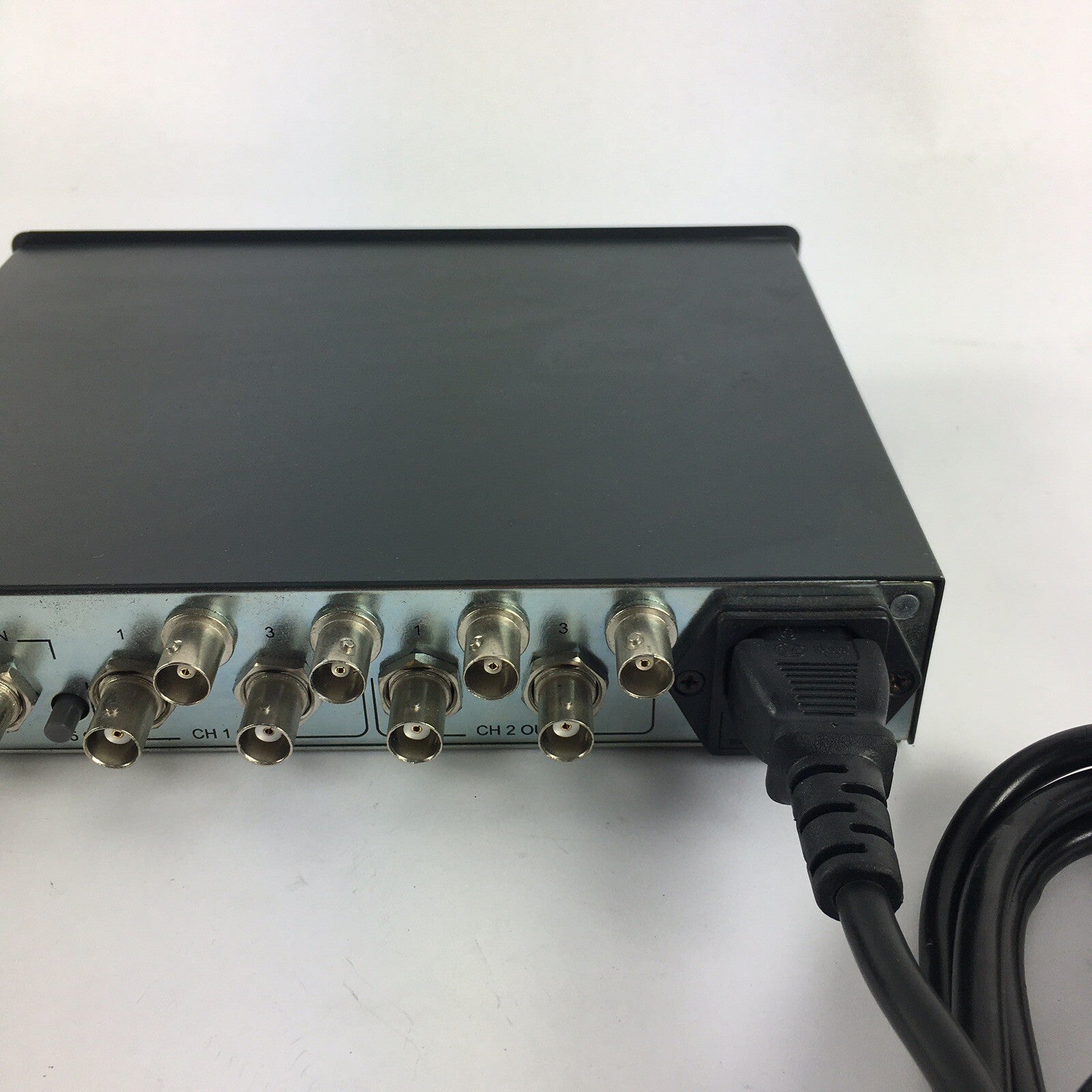

- INPUTS: 2 video, looping, 1Vpp/75 Ohms, on BNC connectors with termination switches.
OUTPUTS: 2 x 4 video 1Vpp/75 Ohms on BNC connectors.
MAX. OUTPUT: 2Vpp.
VIDEO BANDWIDTH (-3dB): 330MHz.
DIFF. GAIN: 0.12%.
DIFF. PHASE: 0.5¡
K-FACTOR: 0.05%.
S/N RATIO: 74dB.
CONTROL: 75 Ohms termination switch, 1:8 or 2x1:4 selector switch.
NON-LINEARITY: 0.1%.
COUPLING: DC or AC (internal selection).
POWER SOURCE: 100 - 240VAC, 50 / 60 Hz, 10VA
DIMENSIONS: 22cm x 18cm x 4.5cm (8.6" x 7" x 1.8") W, D, H. Half 19 inch 1U.
WEIGHT: 1.3kg (2.9 lbs) approx.
ACCESSORIES: Power cord.
We accept payment by any of the following methods:
VISA - MASTERCARD - PAYPAL - AMEX - DISCOVERY - G-PAY
Please pay as soon as possible after winning an auction, as that will allow us to post your item to you sooner!
Your order will be dispatched within 1 working day of receiving payment (Monday-Friday) and you should expect to receive it one or two days after dispatch (for orders sent RM 1st Class).
In the very unlikely event that your item is lost or damaged during post, then WE are responsible and will issue either a full refund or replacement.
We do not ship on weekends and holidays.
- When your shipping label is generated a notification will be sent via your email. Tracking number will be included.
- International buyers must allow 4-6 weeks for delivery. If still not received by then, please contact us. Delays are often due to the customs process in your country. Import duties, tariffs, and taxes are not included. These charges are the buyers responsibility.
Please take a look carefully at the pictures and item description. We will accept ALL returns, but if the return is because you no longer want the product, changed your mind, ordered the wrong item, or because it isn't your preference, we will apply a 15% restocking fee from the original price of purchase.
Buyer will pay for shipping, if the return is because you no longer want the product, changed your mind, ordered the wrong item, or because it isn't your preference
Please take a look carefully at the pictures and item description. We will accept ALL returns, but if the return is because you no longer want the product, changed your mind, ordered the wrong item, or because it isn't your preference, we will apply a 15% restocking fee from the original price of purchase.
The buyer will pay for the return shipping if the return is because you no longer want the product, changed your mind, ordered the wrong item, or because it isn’t your preference
