Seco EPB reinforced shrink-fit tool holder with a BT40 taper, 1/2-inch bore, and 120mm gauge length. Designed for rigid, high-precision clamping in CNC milling applications.
The reinforced SFD design provides additional rigidity for demanding machining operations. Through-coolant capability helps deliver coolant toward the cutting area.

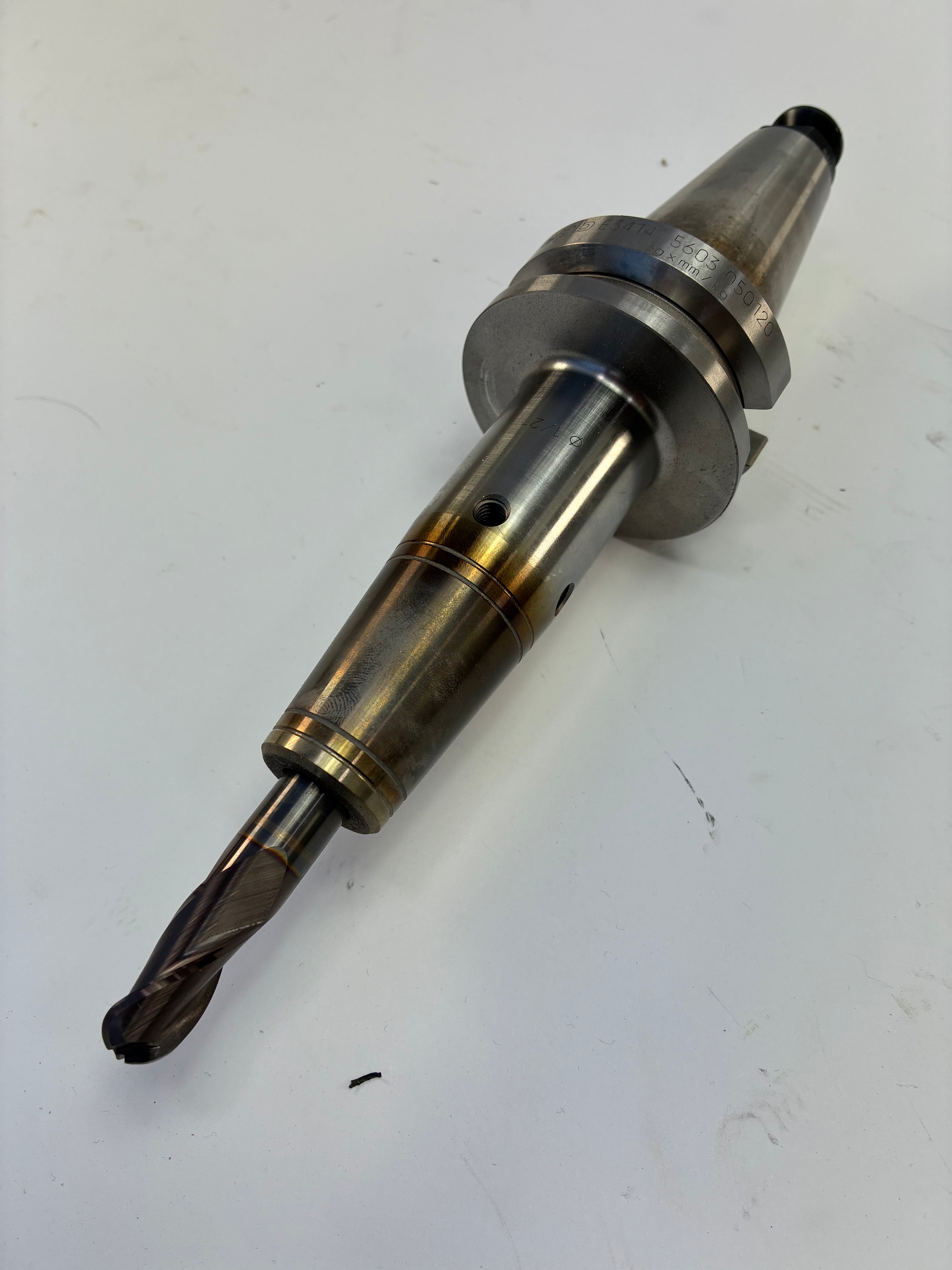

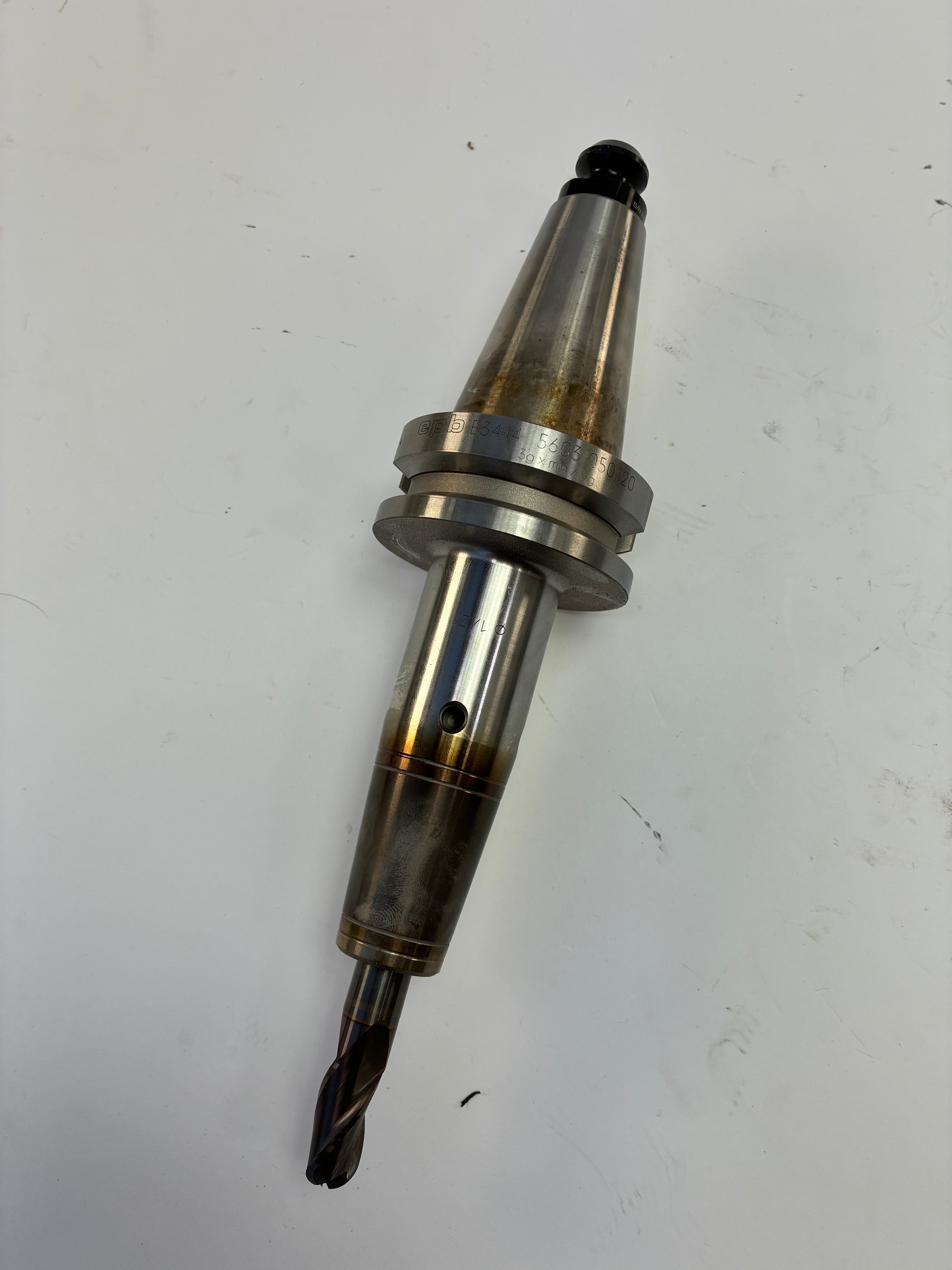

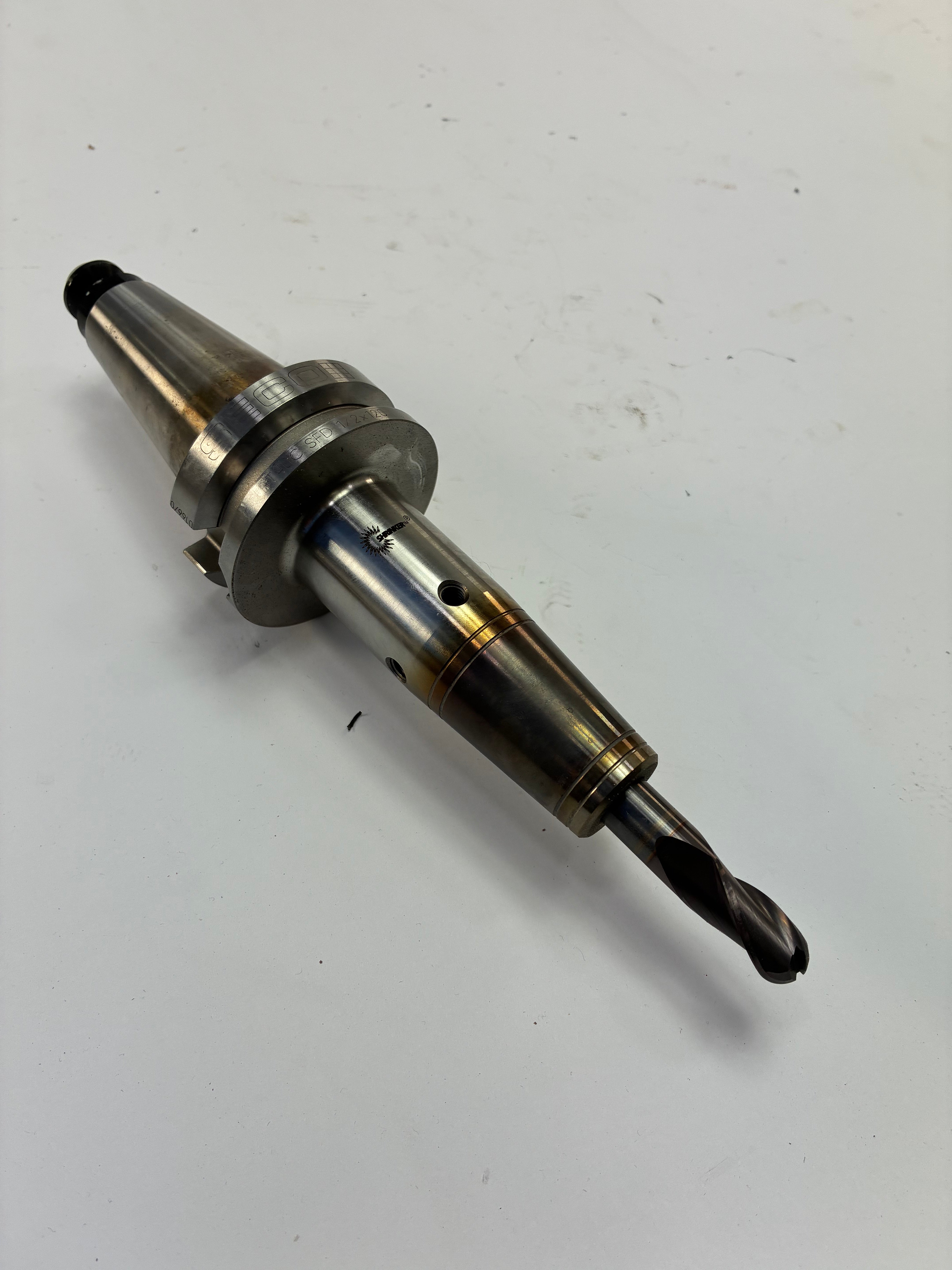

An unidentified coated carbide end mill and BT40 retention knob are installed and included as pictured.
PRE-OWNED IN EXCELLENT CONDITION
HOLDER STICK OUT LENGTH: 4.125"
Specifications:
- Brand: Seco / EPB

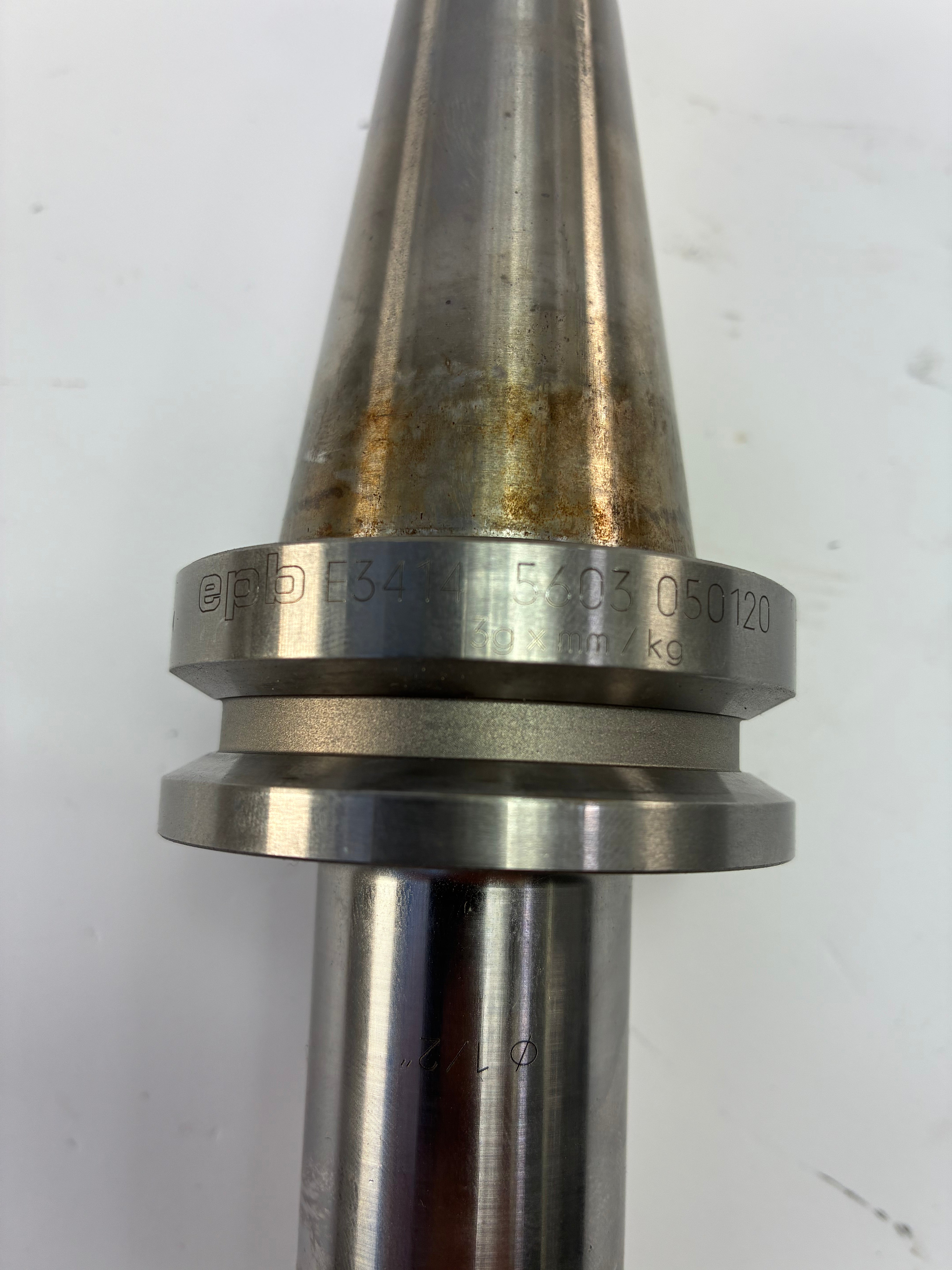

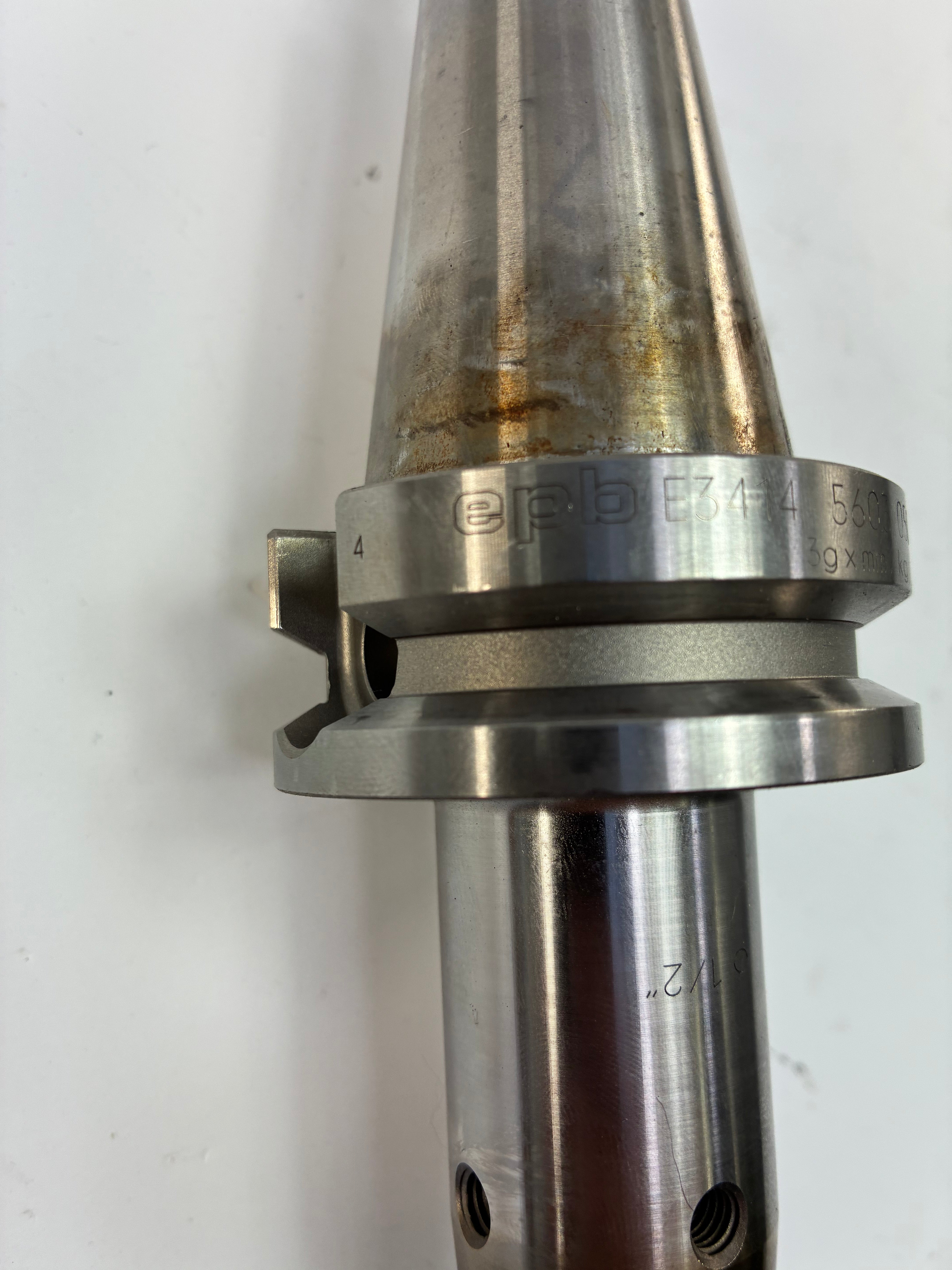

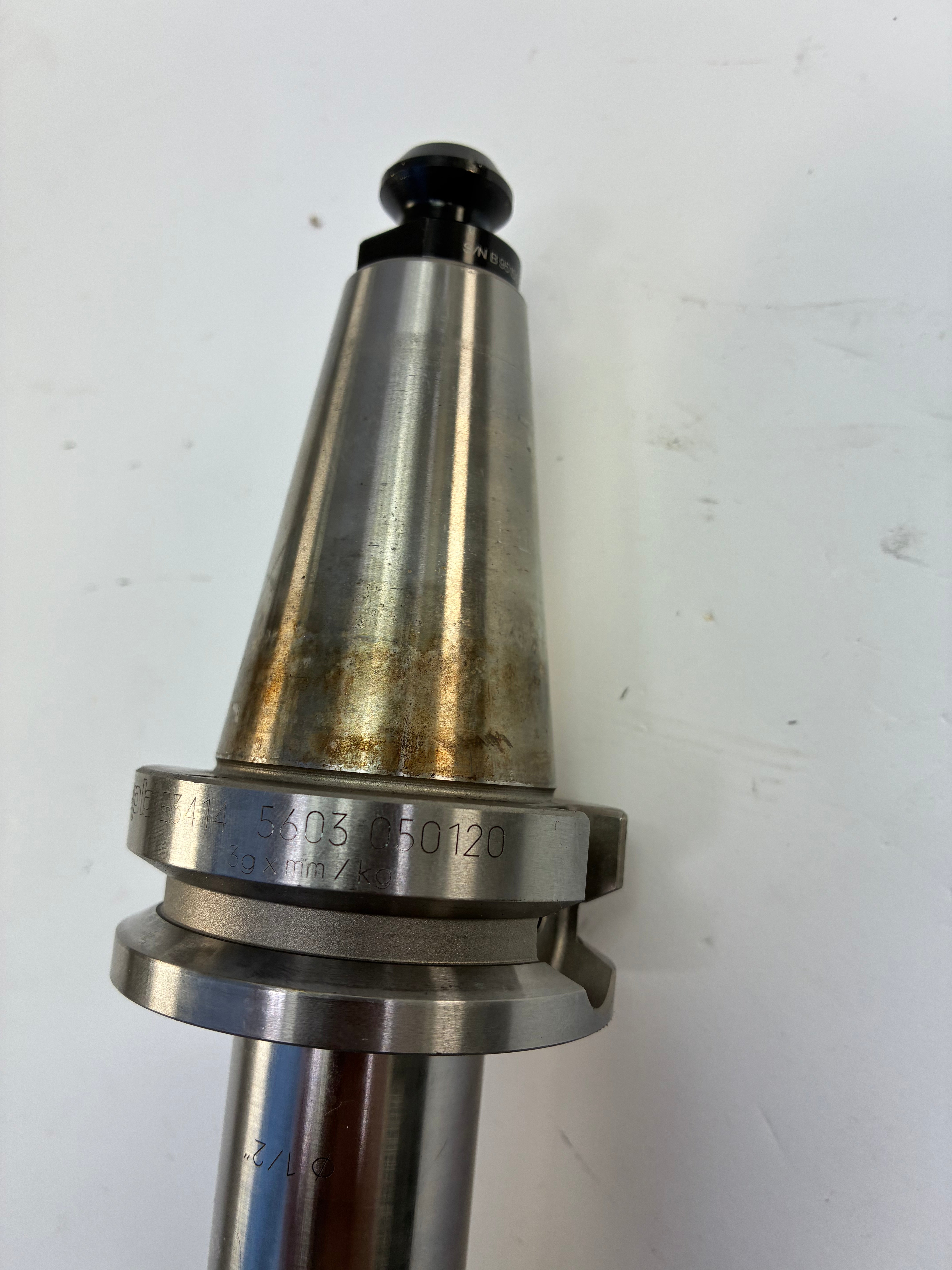

- Reference number: E3414 5603 050120
- Seco item number: 02753320

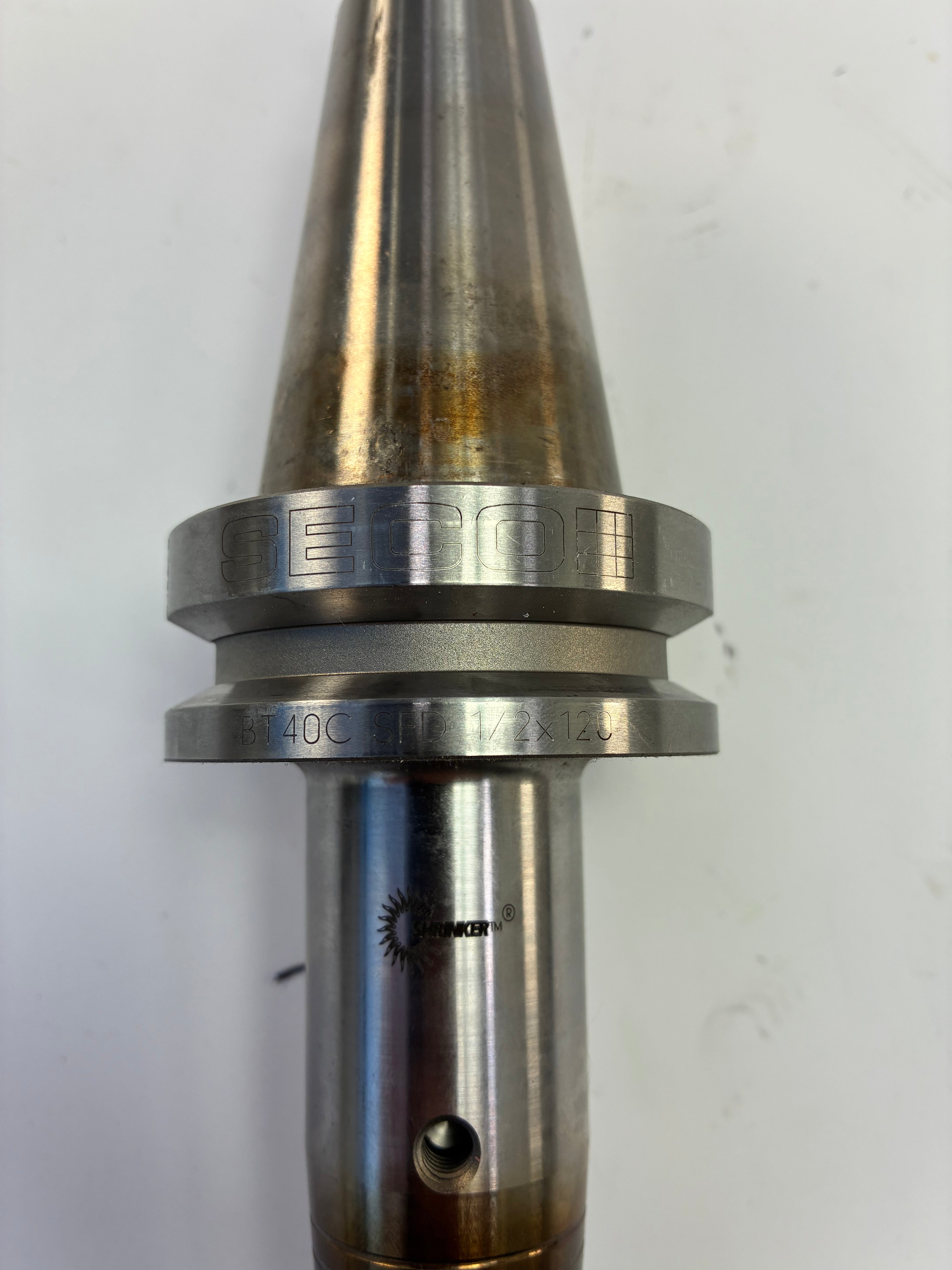

- Engraved designation: BT40C SFD 1/2 × 120
- Holder type: Reinforced shrink-fit holder
- Machine taper: BT40
- Tool-shank capacity: 1/2 in
- Gauge/projection length: 120mm / approximately 4.72 in
- Nose diameter: Approximately 0.944 in
- Coolant capability: Through coolant
- Pull stud/retention knob: Included
- Cutting tool: Unidentified coated carbide end mill included
- Country of origin: France
- Shrink-fit machine required for cutter installation and removal
Condition:
Pre-owned industrial tooling with scratches, machining residue, staining, surface oxidation, and substantial heat discoloration from previous shrink-fit use. The installed carbide end mill also shows evidence of previous use.
The cutter’s manufacturer, exact diameter, coating, and remaining service life have not been verified. The holder has not been checked for runout.
Only the Seco EPB holder, installed cutting tool, and retention knob shown in the photographs are included. Please verify BT40 spindle, pull-stud, 1/2-inch shank, and gauge-length compatibility before purchasing.
