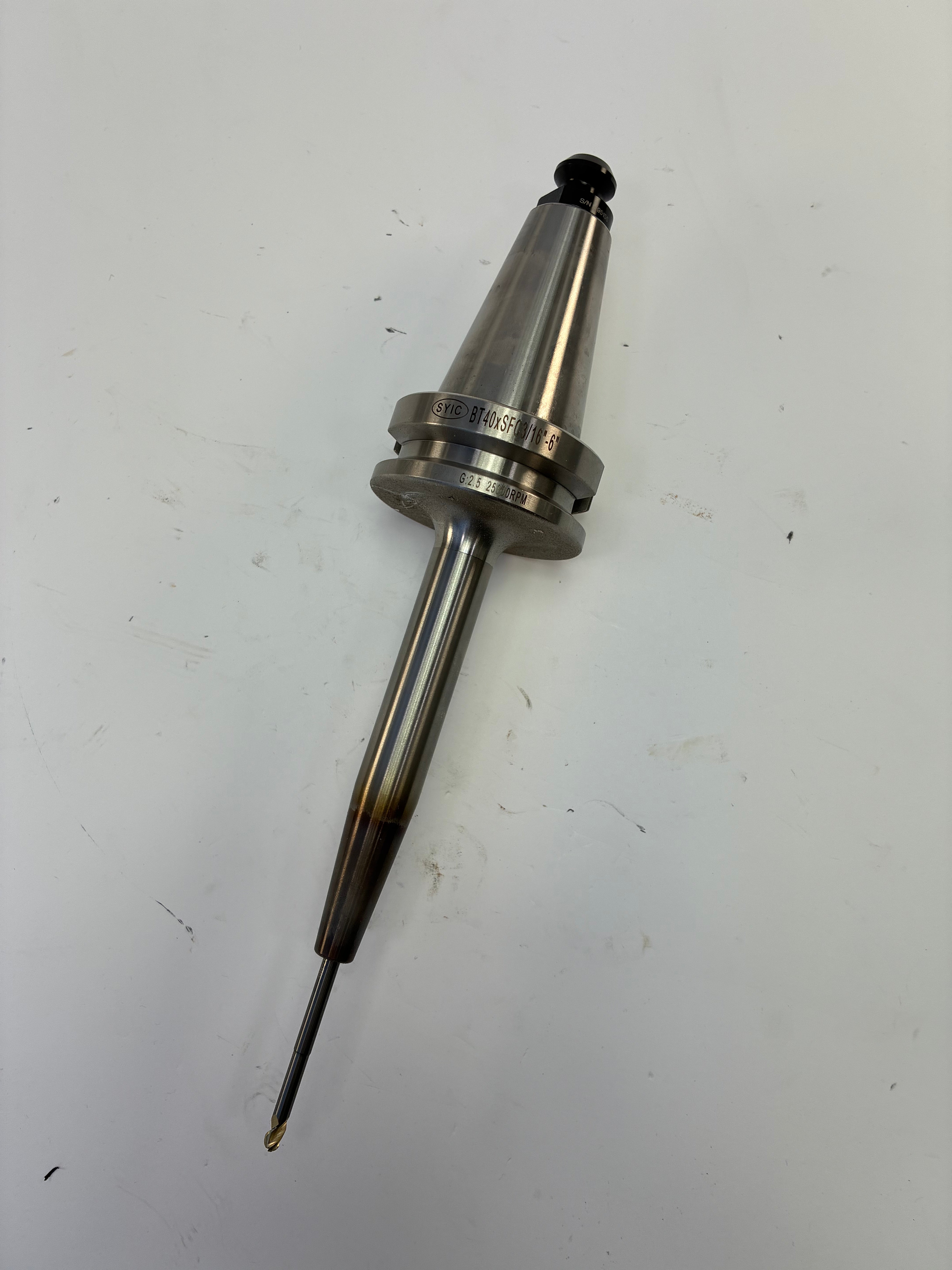

Techniks/SYIC extended-reach BT40 shrink-fit holder designed for cutting tools with a precise 3/16-inch shank. Part number 19020-6 provides a 6-inch projection for deep-pocket milling, mold work, horizontal machining, and other difficult-to-reach applications.
Shrink-fit clamping provides rigid and concentric tool retention without using a conventional collet or side-lock screw. The holder is balanced to G2.5 at 25,000 RPM and rated for maximum runout of 0.0001 inch.

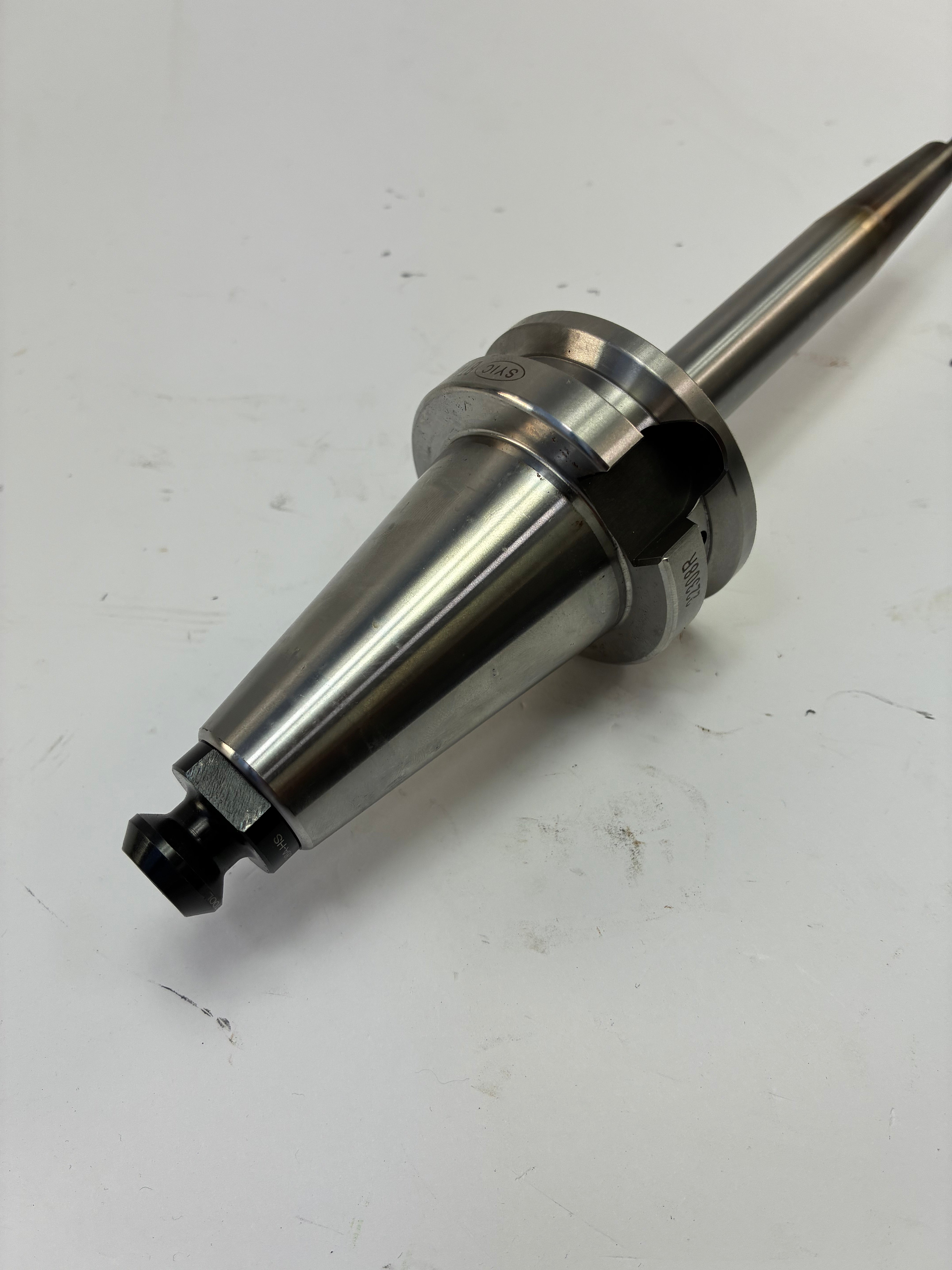

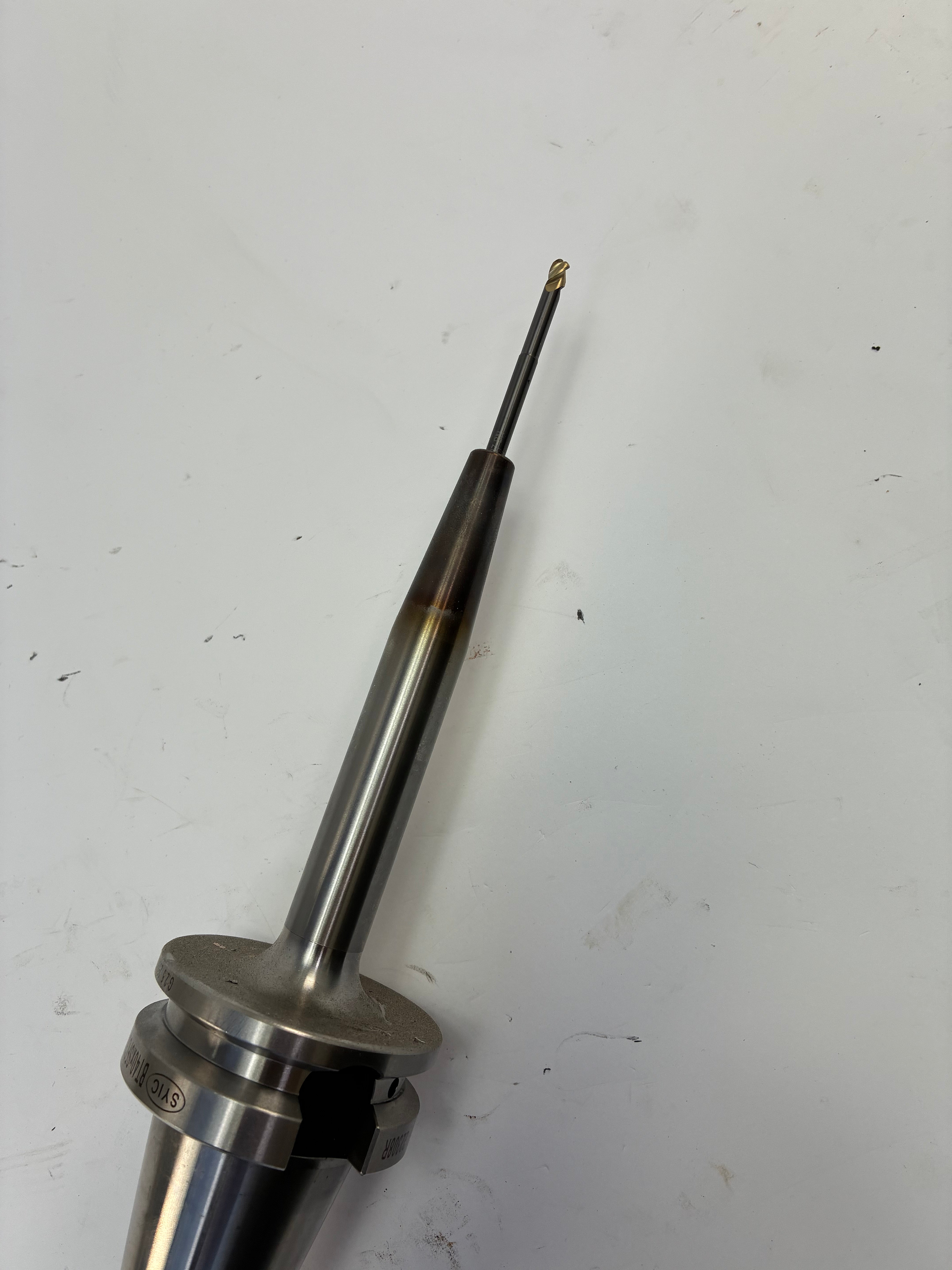

An unidentified carbide ball-nose-style end mill and BT40 retention knob are installed and included as pictured.
PRE-OWNED IN EXCELLENT CONDITION
HOLDER STICK OUT LENGTH: 5.5"
Specifications:
- Brand: Techniks / SYIC
- Manufacturer part number: 19020-6

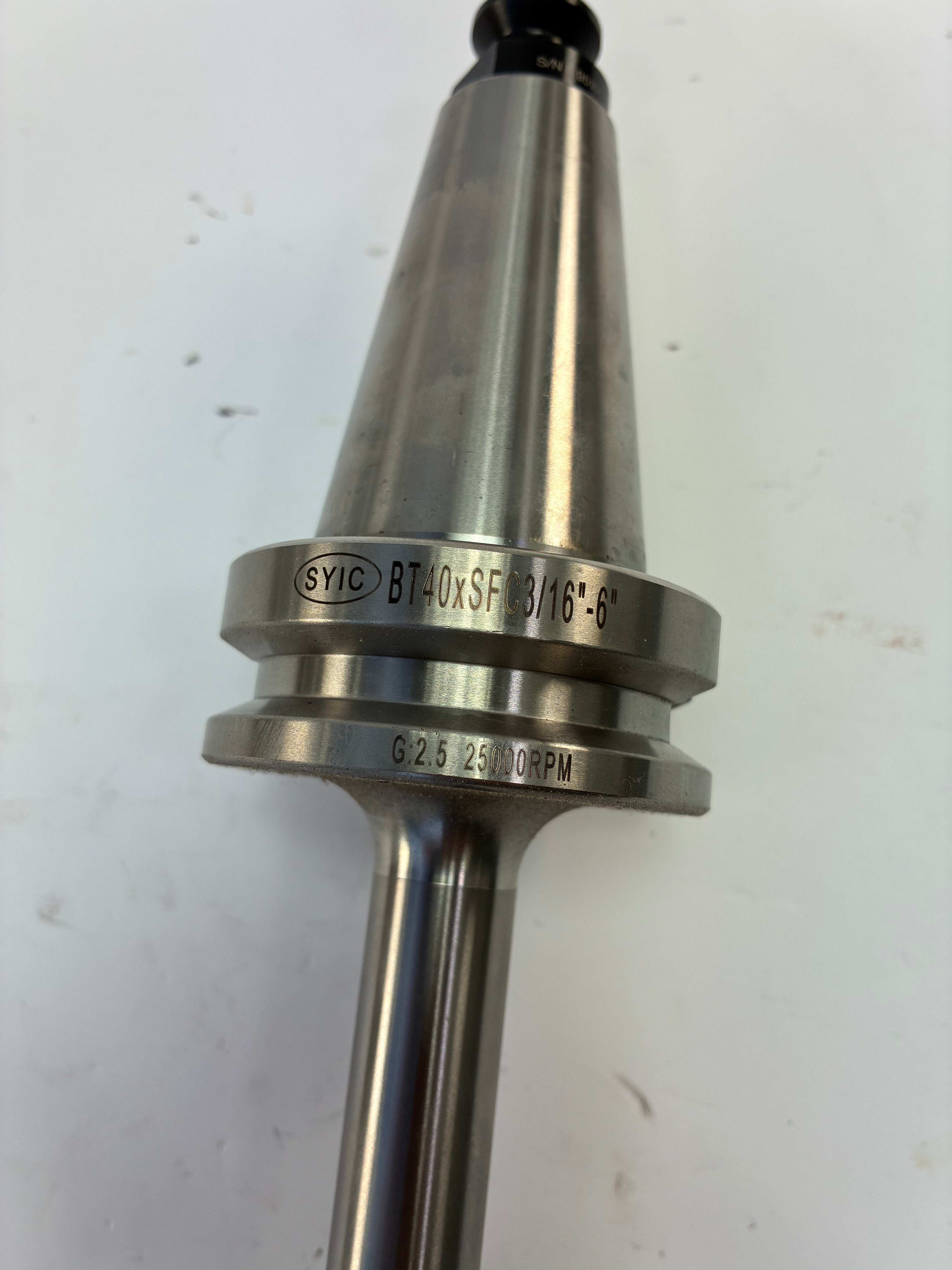

- Engraved model: BT40 × SFC 3/16”-6”
- Holder type: Extended shrink-fit tool holder
- Machine taper: BT40
- Tool-shank capacity: 3/16 in / 0.188 in
- Projection/gauge length: 6 in
- Overall length: Approximately 8.57 in
- Nose diameter: Approximately 0.43 in
- Body diameter: Approximately 0.70 in
- Clamping length: Approximately 0.79 in
- Balance rating: G2.5 at 25,000 RPM
- Maximum runout: 0.0001 in
- Stop-screw thread: M6 × 1.0
- Coolant capability: Coolant-through
- Pull stud/retention knob: Included
- Cutting tool: Unidentified carbide cutter included
- Country of origin: Taiwan
- Shrink-fit machine required for cutter installation and removal
Condition:

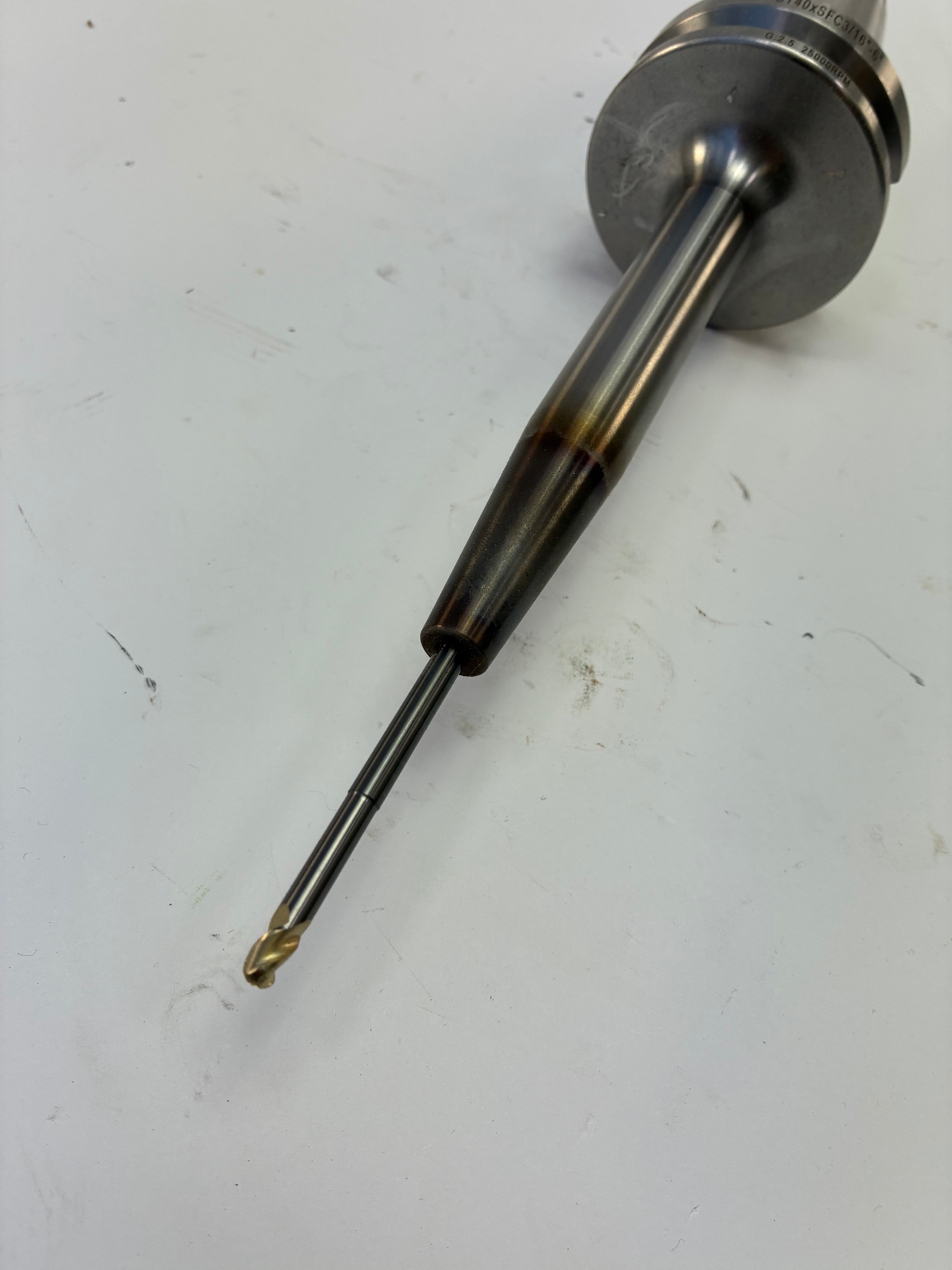

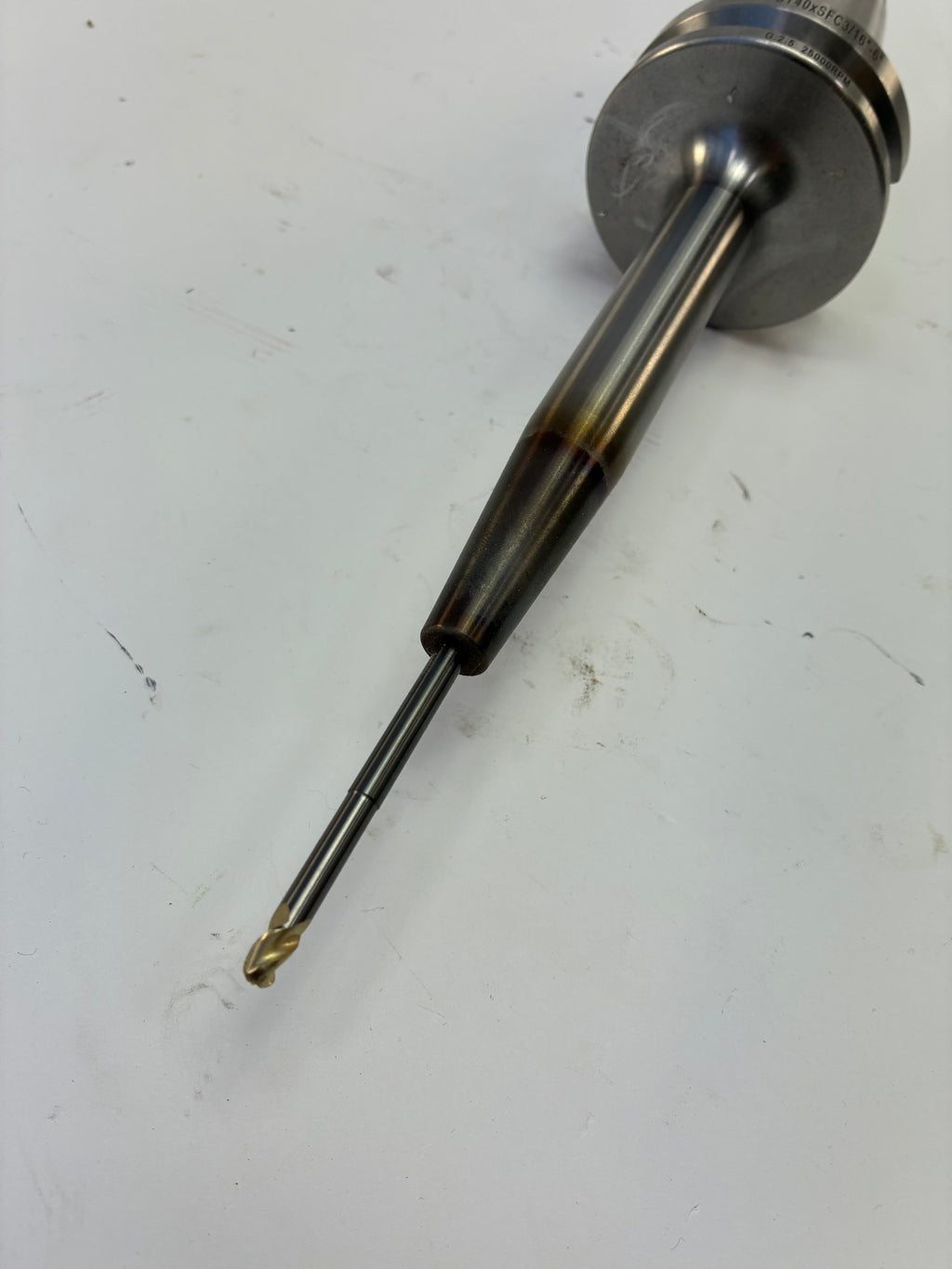

Pre-owned industrial tooling with scratches, machining residue, staining, and substantial heat discoloration around the shrink-fit nose from previous use. The installed cutting tool also shows evidence of prior use.
The cutter’s manufacturer, coating, precise cutting geometry, and remaining service life have not been verified. Only the holder, installed cutter, and retention knob shown in the photographs are included.
Please inspect all photos and verify BT40 spindle, 3/16-inch tool-shank, gauge-length, and retention-knob compatibility before purchasing.
