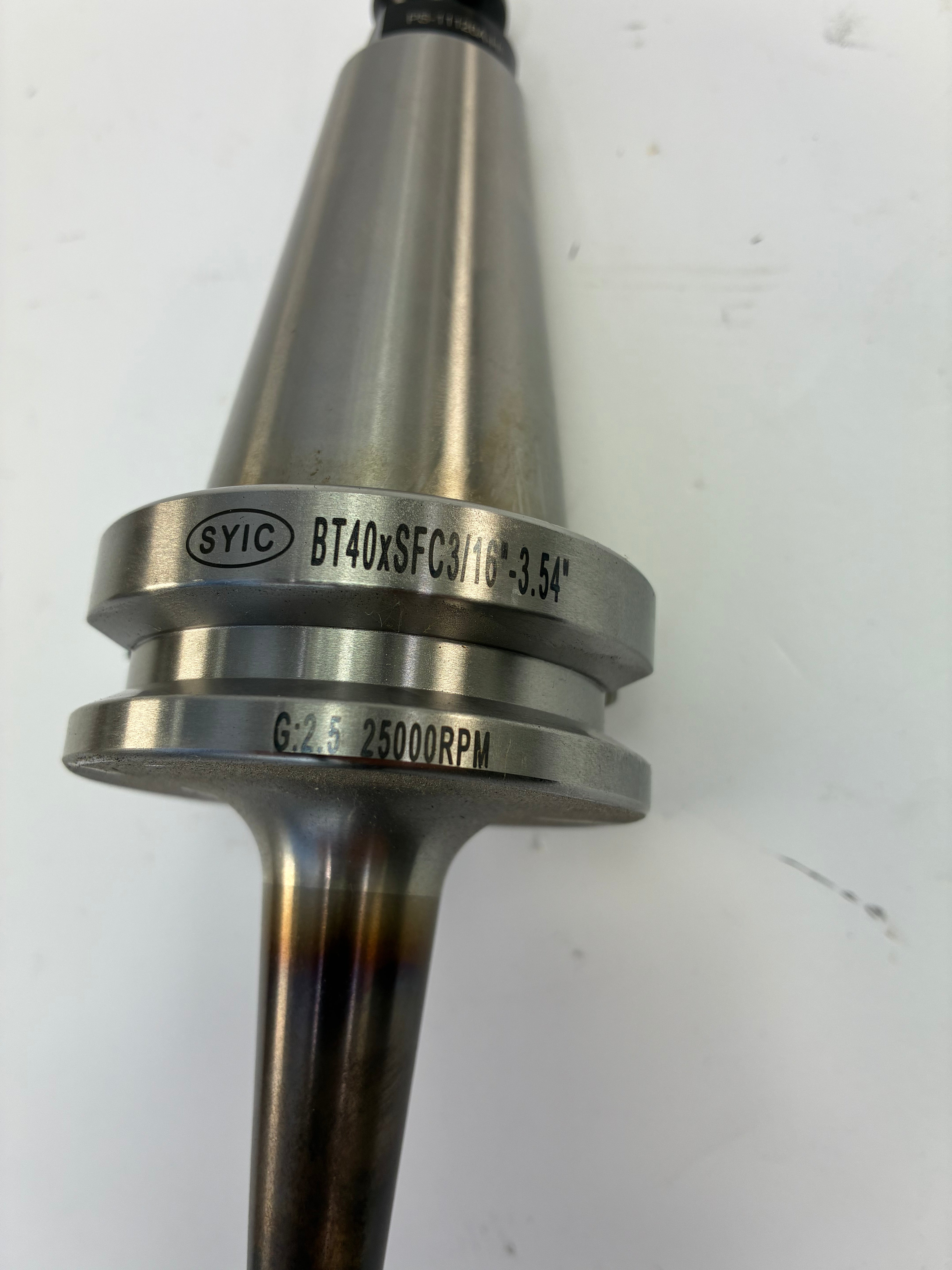

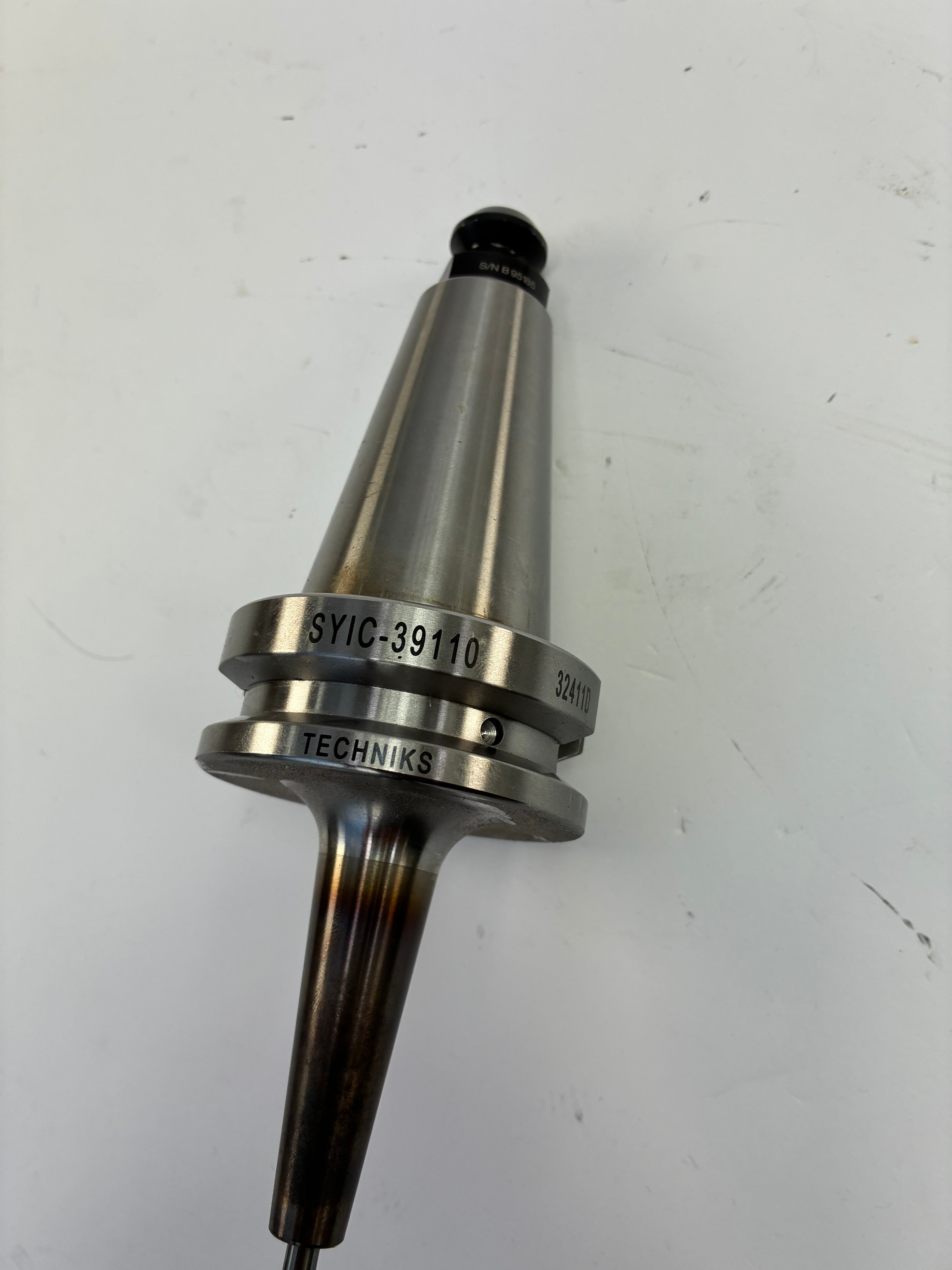

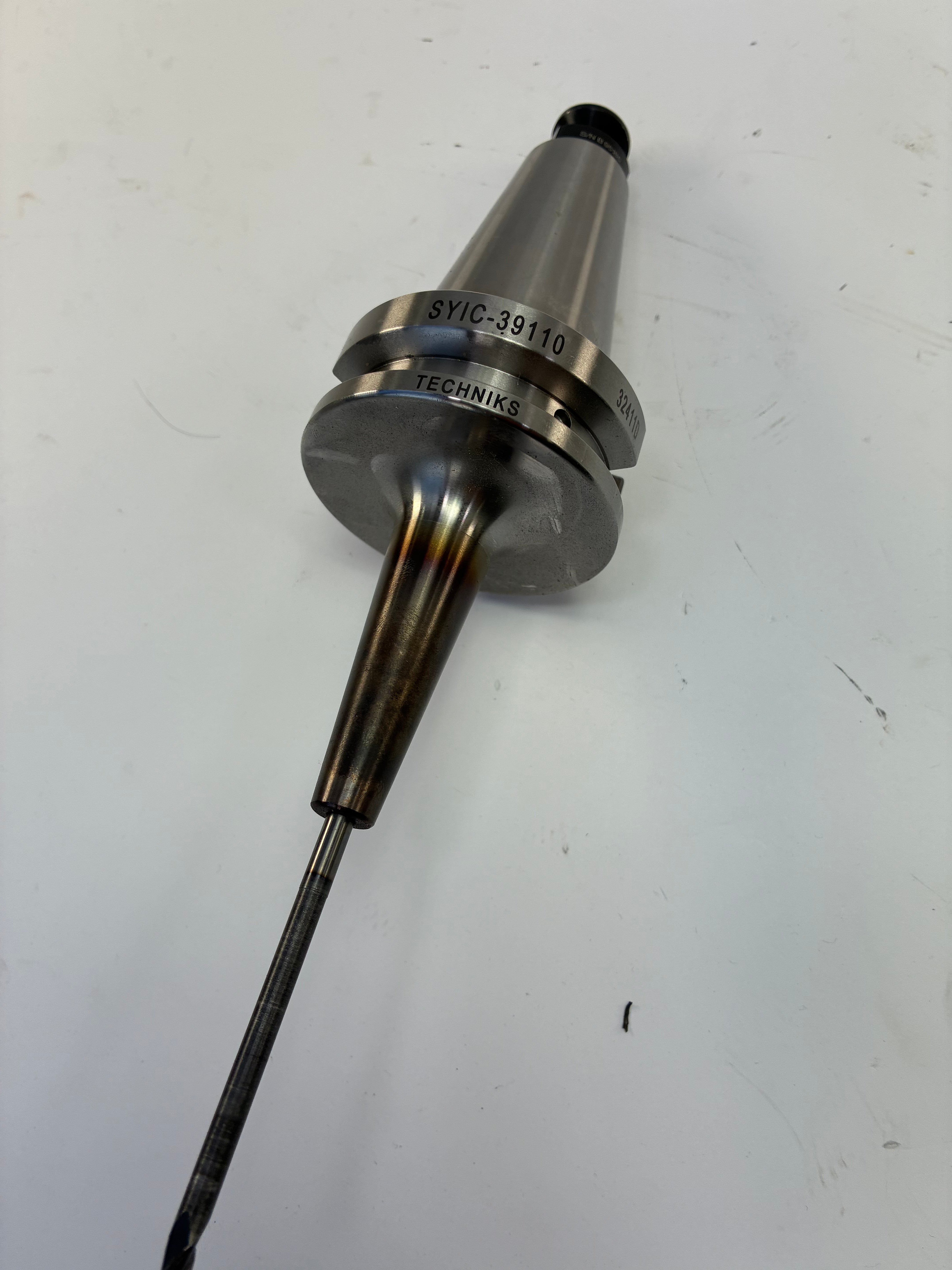

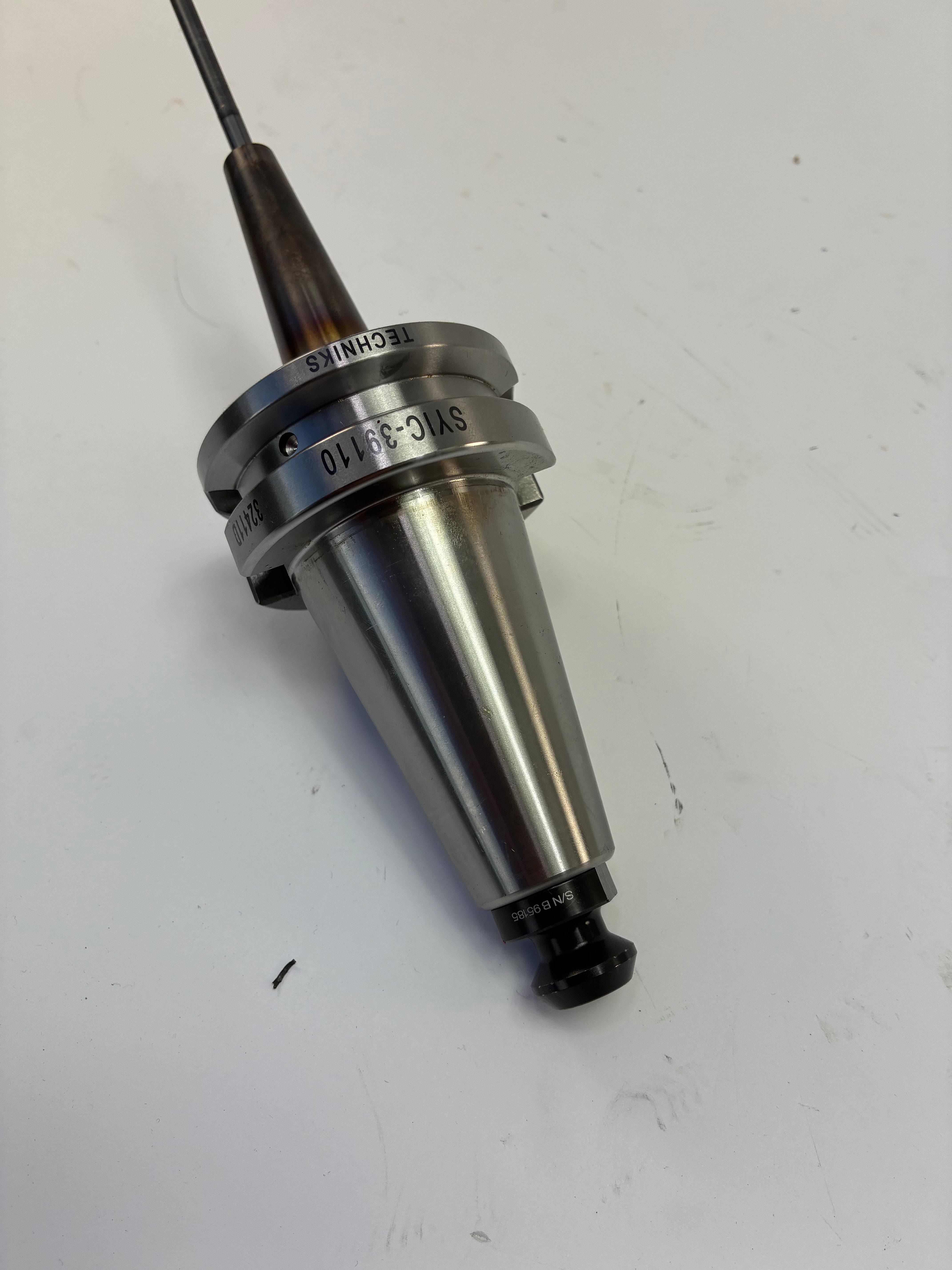

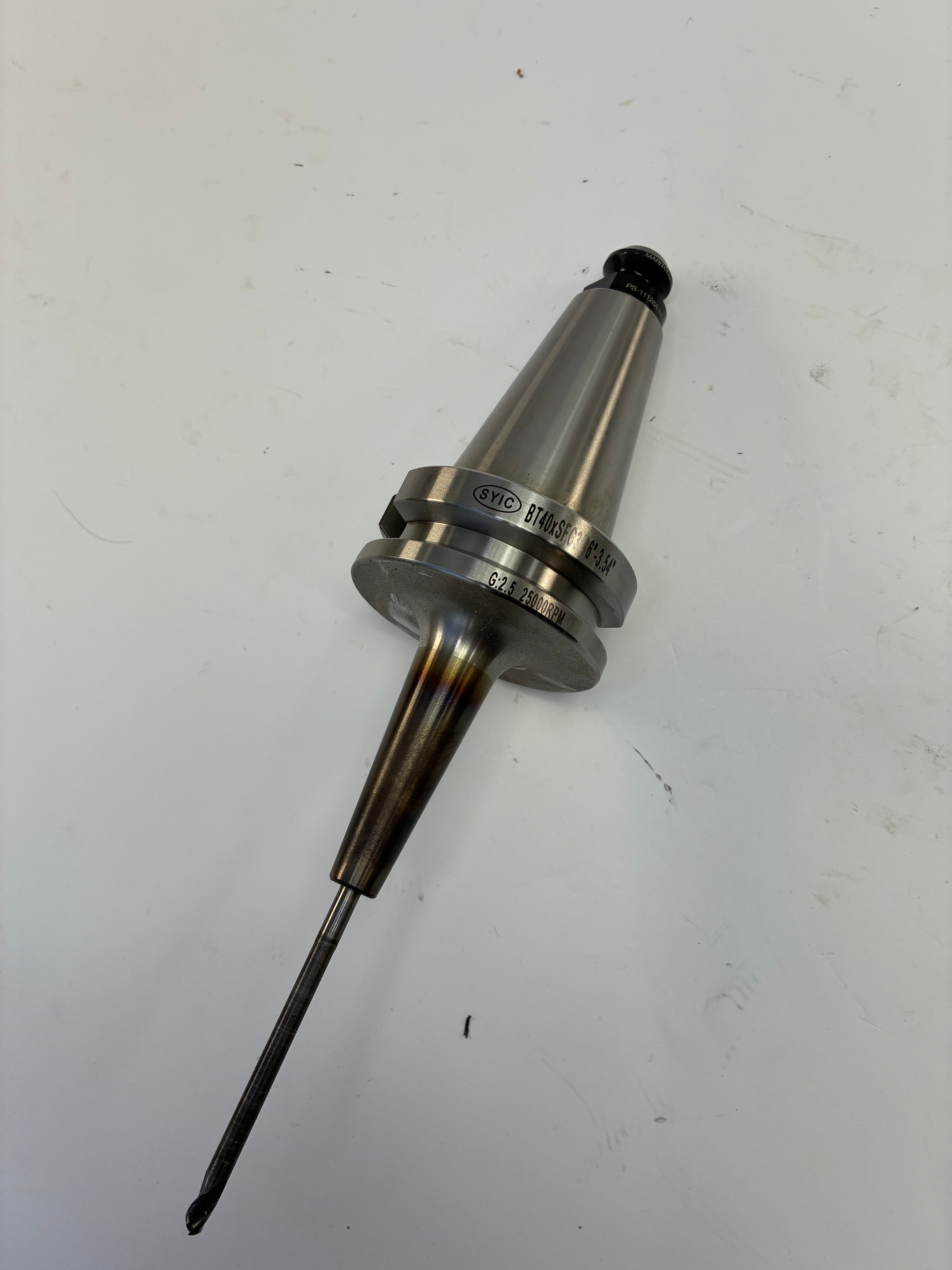

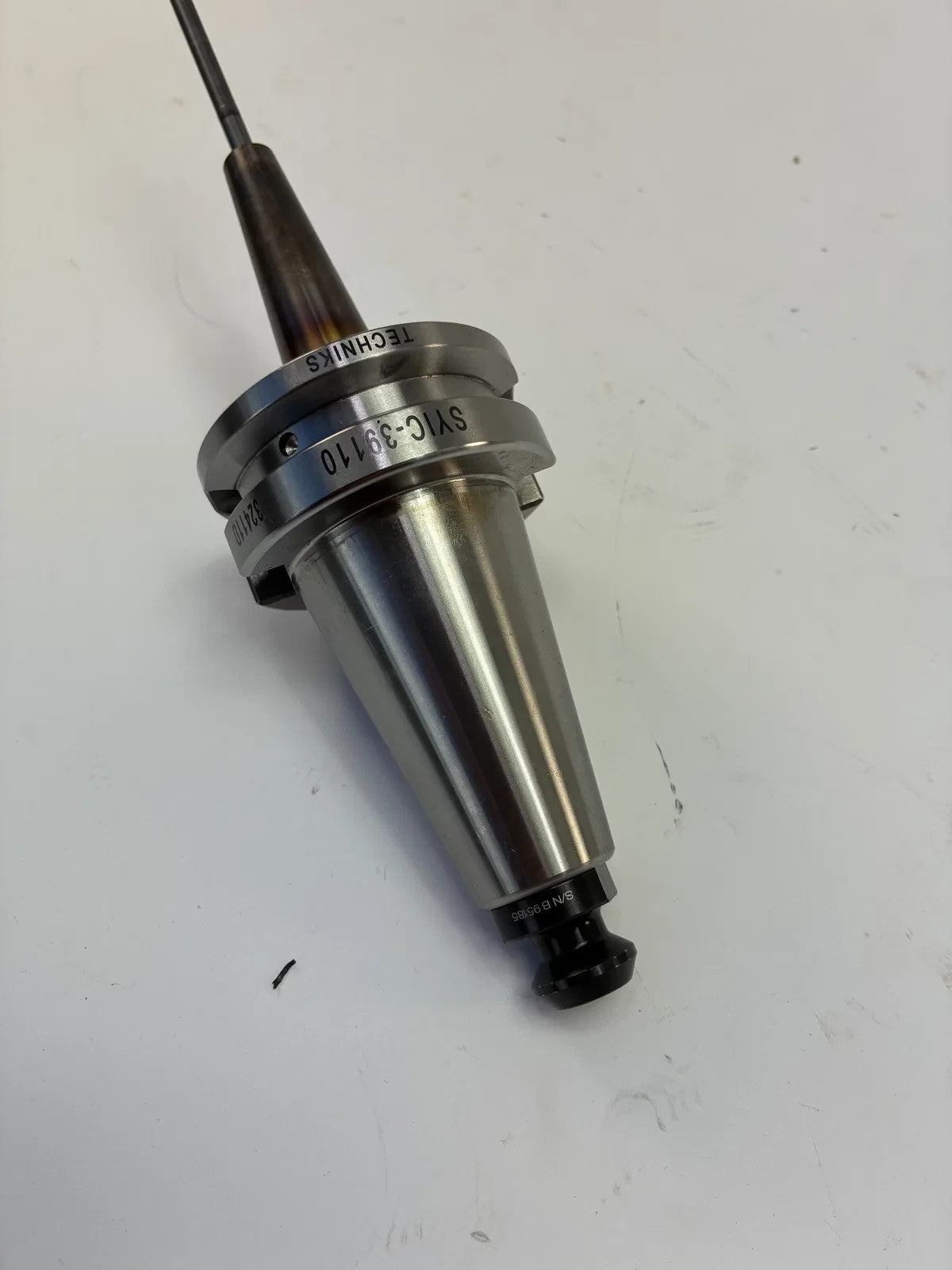

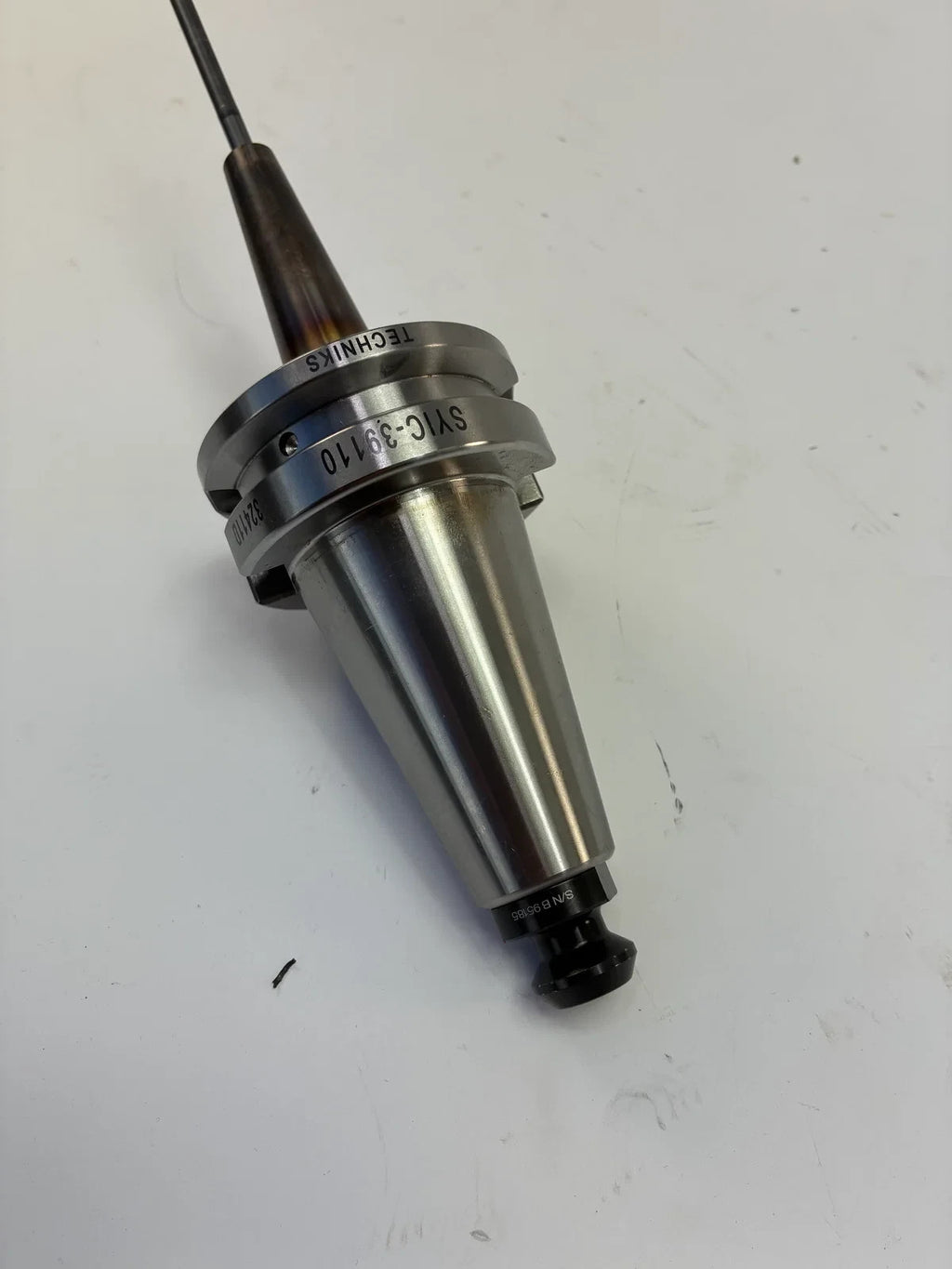

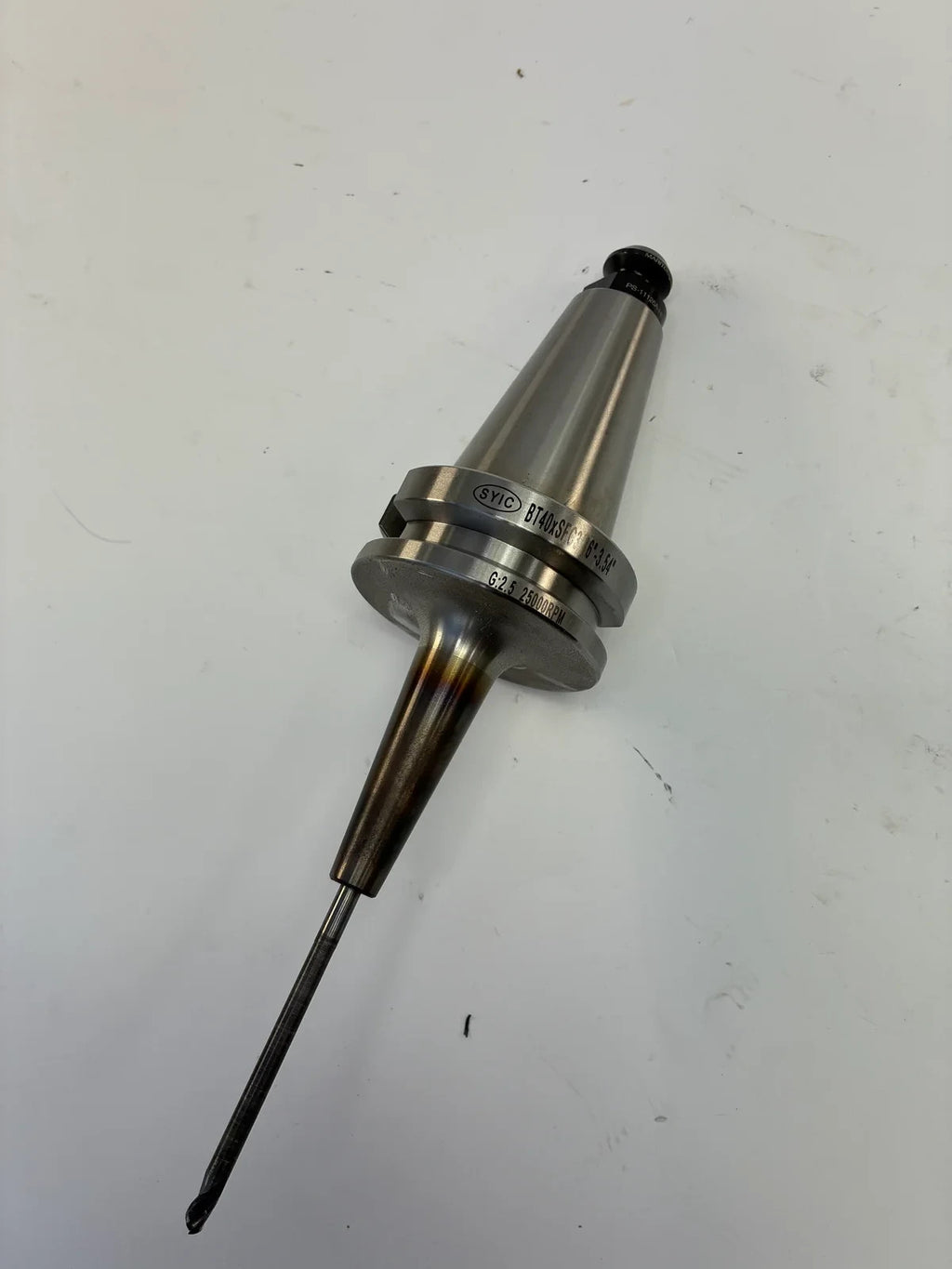

Used Techniks/SYIC precision shrink-fit holder for BT40 CNC machining centers. Model 39110 features a 3/16-inch bore and 3.54-inch projection for high-speed machining with small-diameter cutting tools.
The holder is balanced to G2.5 at 25,000 RPM. It includes the installed cutting tool and pull stud shown in the photographs.
PRE-OWNED IN EXCELLENT CONDITION
HOLDER STICK OUT LENGTH: 3"
Specifications
- Manufacturer: Techniks / SYIC
- Part number: 39110
- Additional marking: 32411D
- Machine taper: BT40
- Holder type: Shrink-fit
- Tool bore: 3/16 inch
- Projection: 3.54 inches
- Overall length: Approximately 6 inches
- Nose diameter: Approximately 0.43 inch
- Body diameter: Approximately 0.75 inch
- Clamping length: Approximately 0.79 inch
- Stop-screw thread: M6 × 1.0
- Compatible coolant screw: 16081C-20
- Balance rating: G2.5 at 25,000 RPM
- Manufacturer-rated maximum TIR: 0.0001 inch
- Coolant capable: Yes
- Included: Holder, installed cutter and pull stud
- Quantity: One assembly
Condition
Used industrial tooling with visible heat discoloration, scratches, oxidation and normal handling wear. The installed cutter’s exact specifications and remaining service life have not been verified. Runout has not been independently tested.
A compatible shrink-fit machine is required to remove or replace the cutter. Please verify pull-stud and machine compatibility before ordering. Only the components shown are included.
