Techniks/SYIC BT40 shrink-fit tool holder designed for cutting tools with a precise 1/2-inch shank. Part number 39114 provides a 90mm—or 3.54-inch—projection for high-speed CNC milling and extended-reach applications.
Shrink-fit clamping provides rigid, concentric tool retention without a conventional collet or side-lock screw. The holder is balanced to G2.5 at 25,000 RPM and rated for maximum runout of 0.0001 inch.

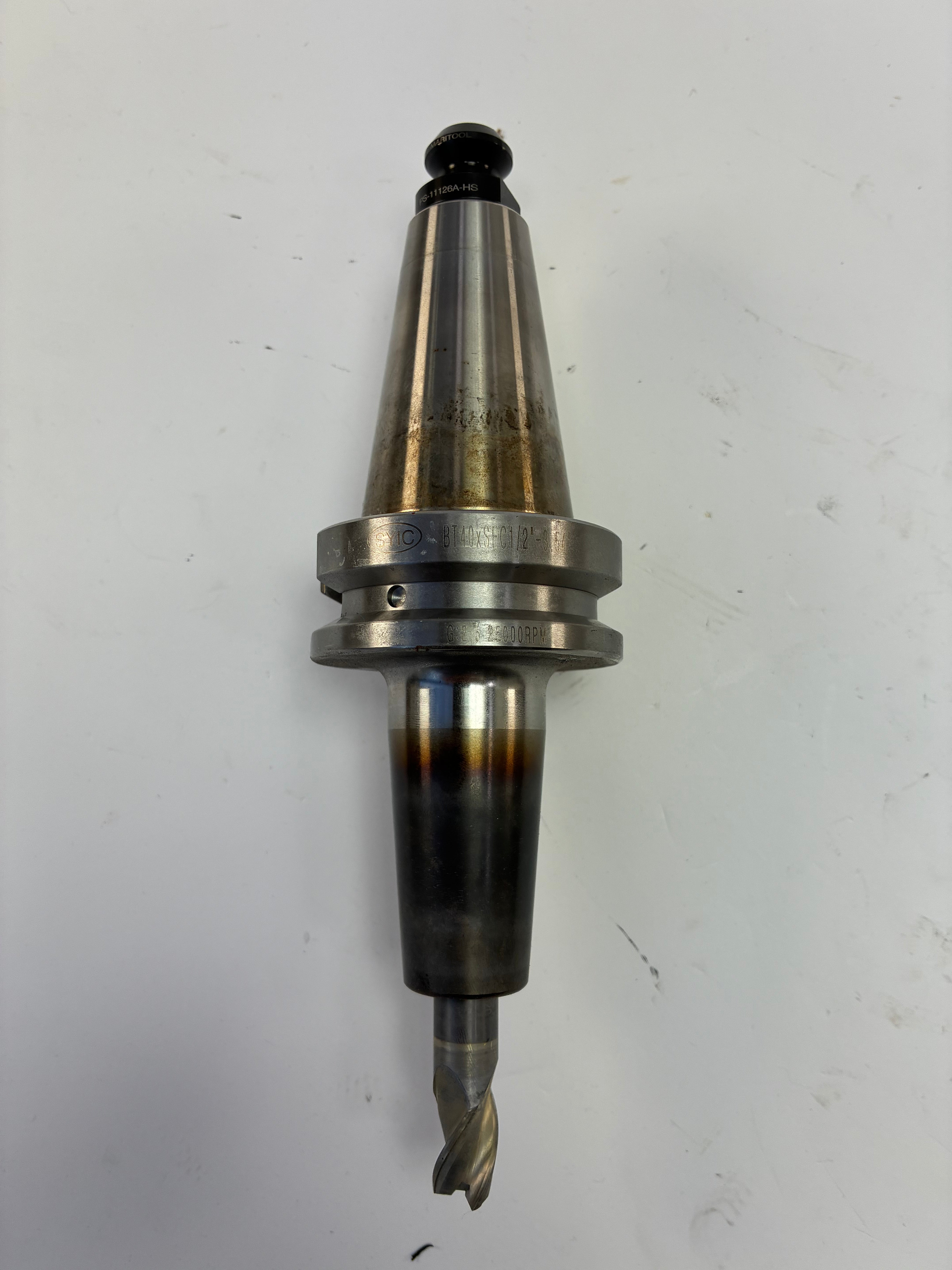

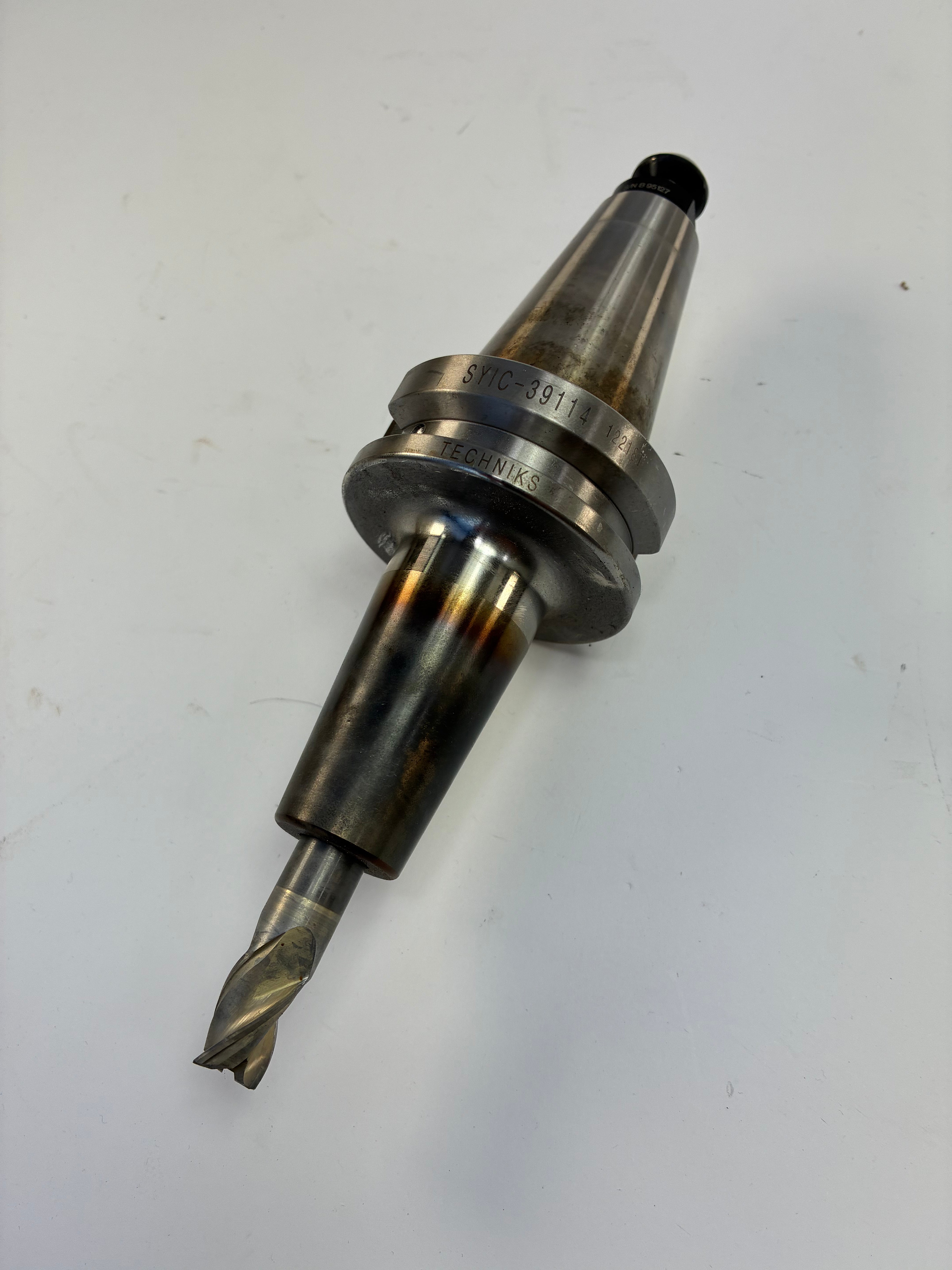

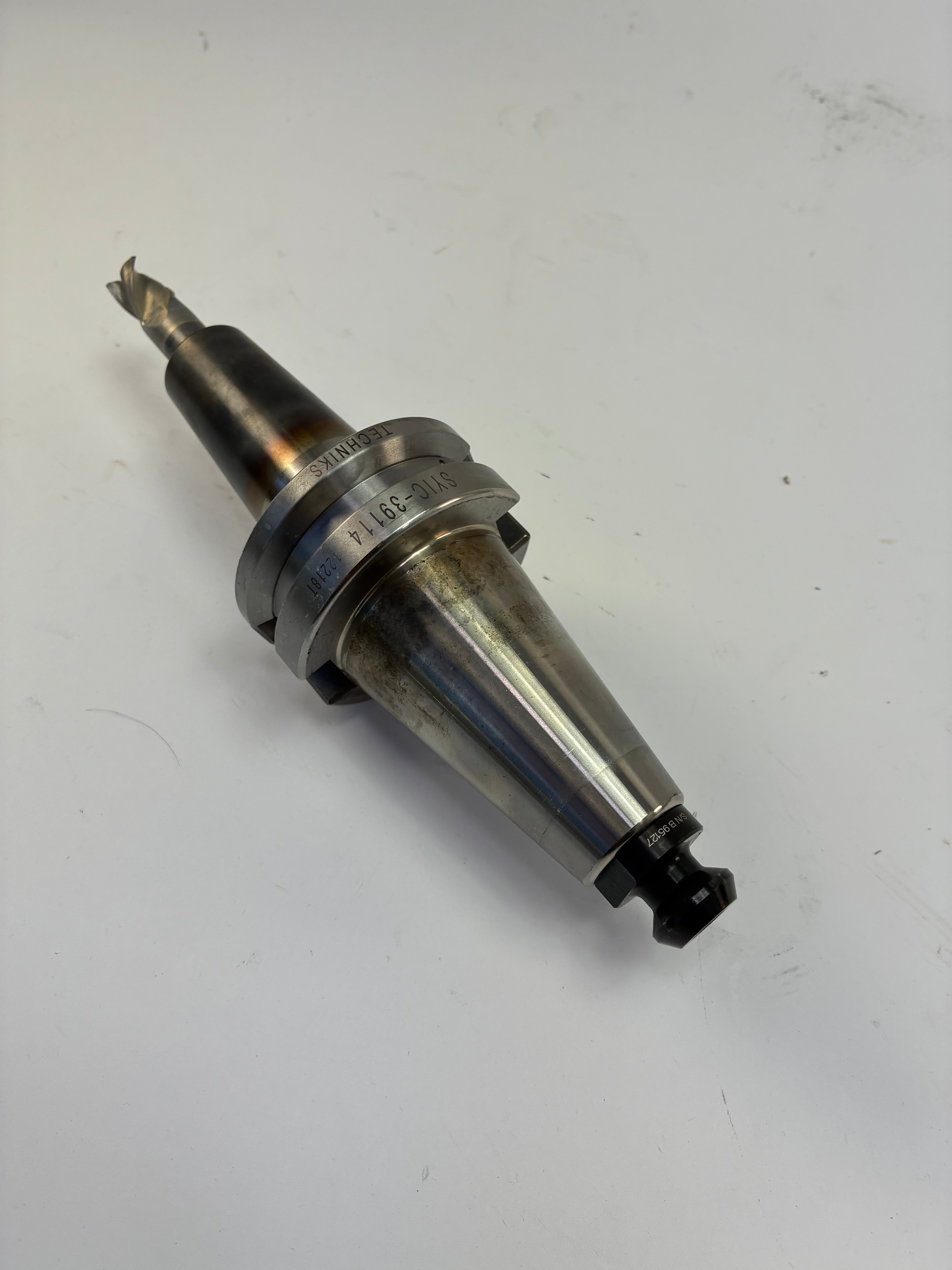

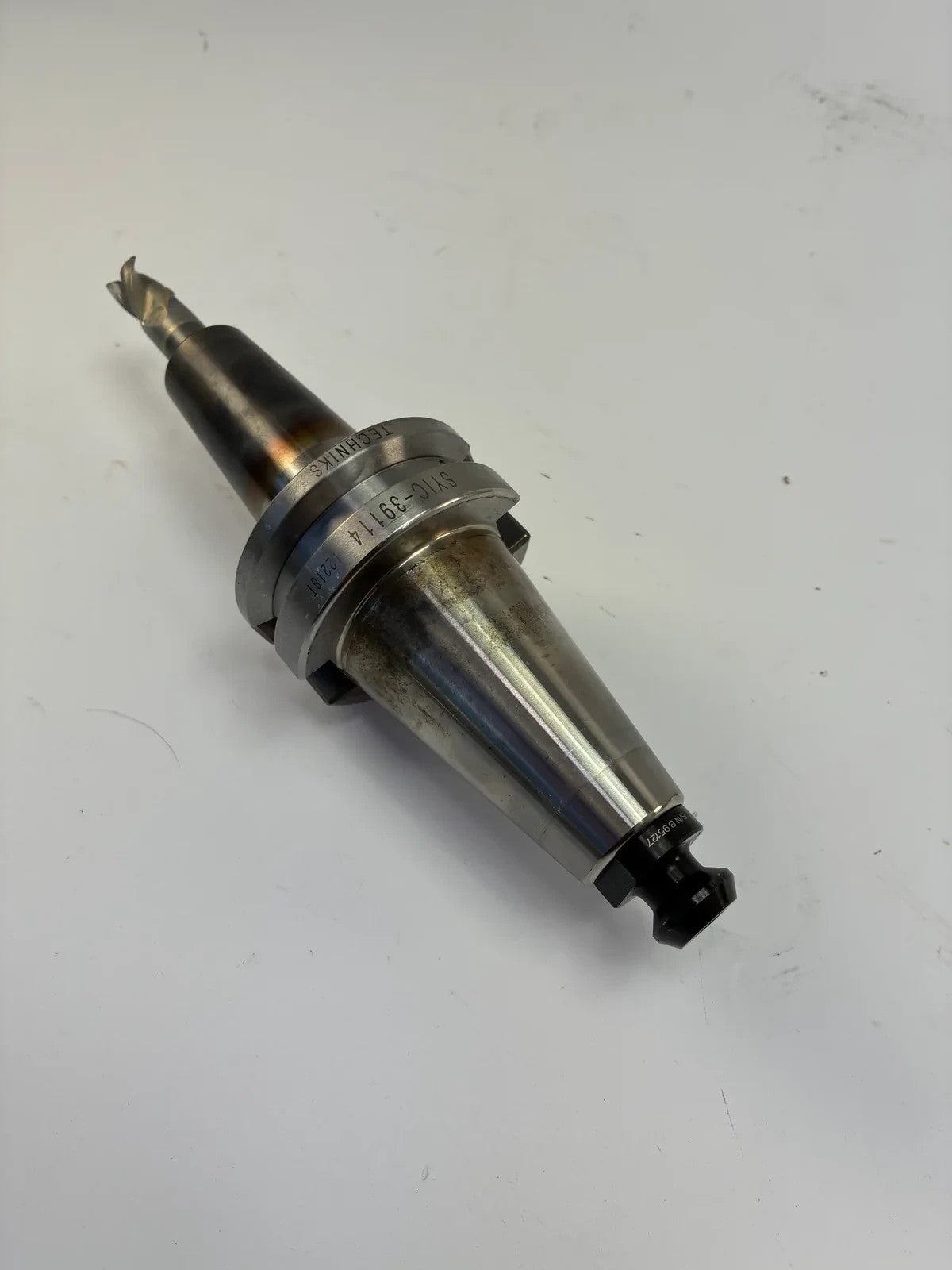

An unidentified used cutting tool and BT40 retention knob are installed and included as pictured.
PRE-OWNED IN EXCELLENT CONDITION
HOLDER STICK OUT LENGTH: 3"
Specifications:
- Brand: Techniks / SYIC
- Manufacturer part number: 39114

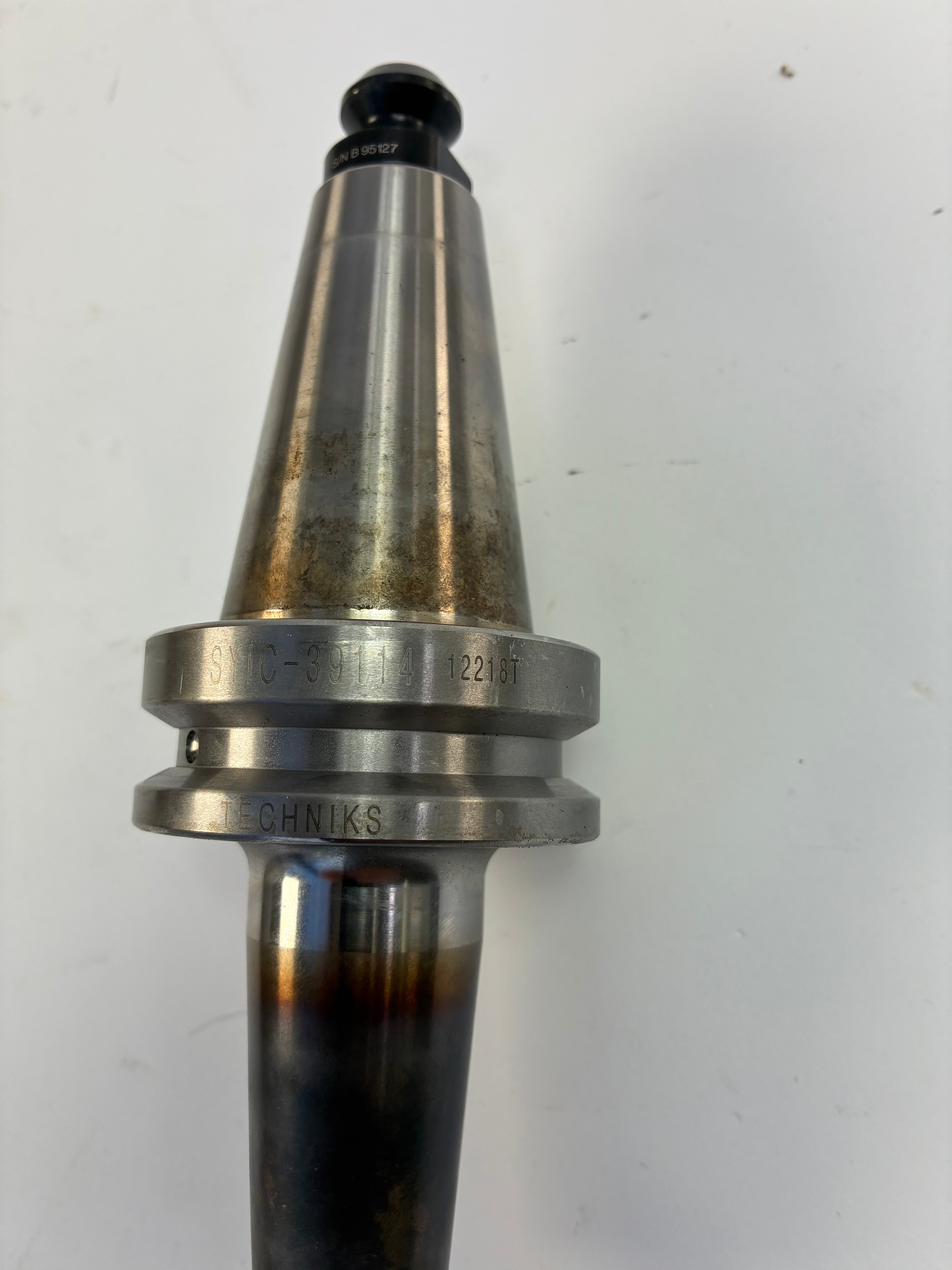

- Additional marking: 12216T
- Holder type: Shrink-fit tool holder
- Machine taper: BT40
- Tool-shank capacity: 1/2 in
- Projection/gauge length: 90mm / 3.54 in
- Nose diameter: Approximately 1.10 in
- Body diameter: Approximately 1.34 in
- Overall length: Approximately 6.12 in
- Clamping length: Approximately 1.85 in

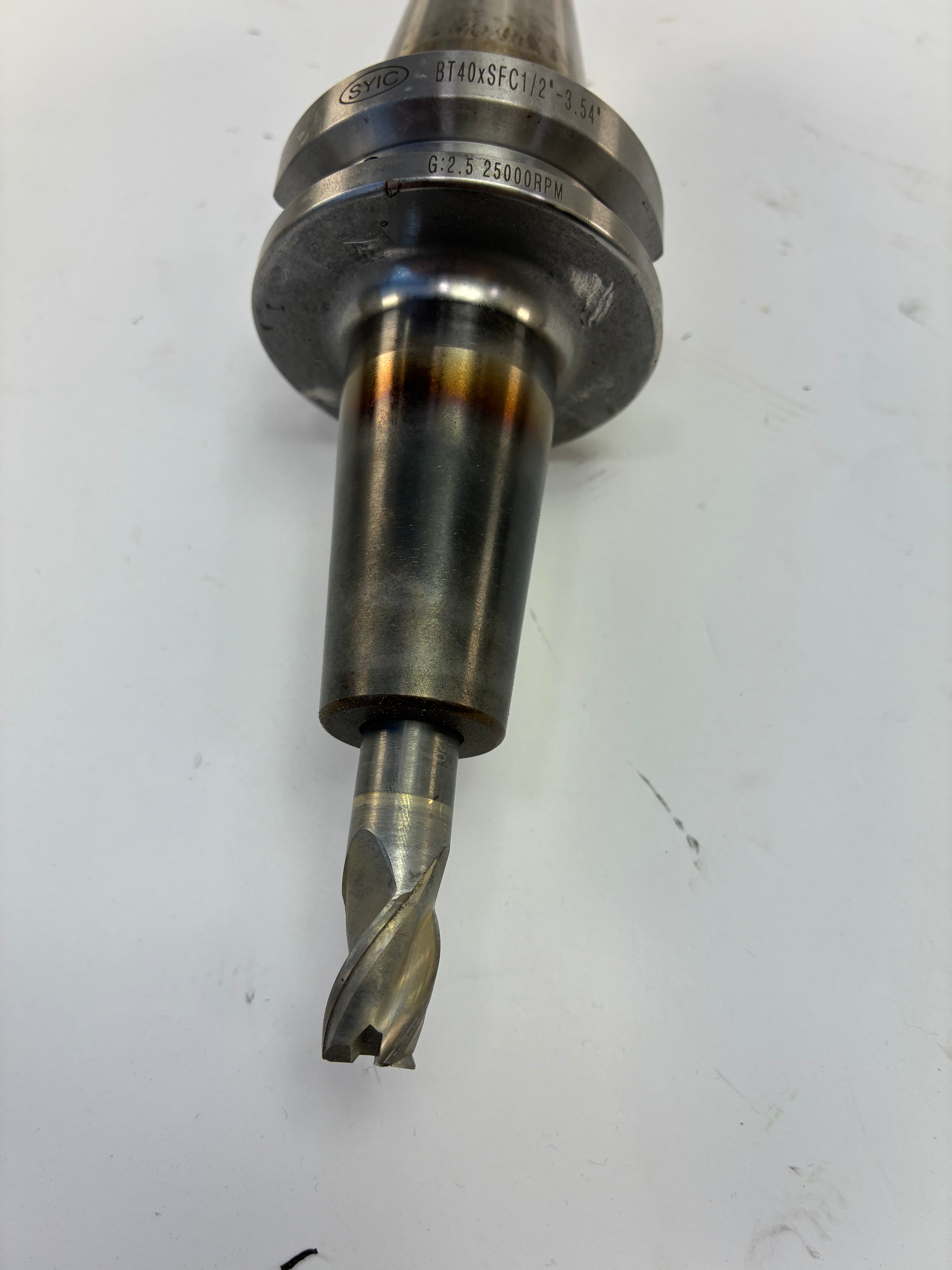

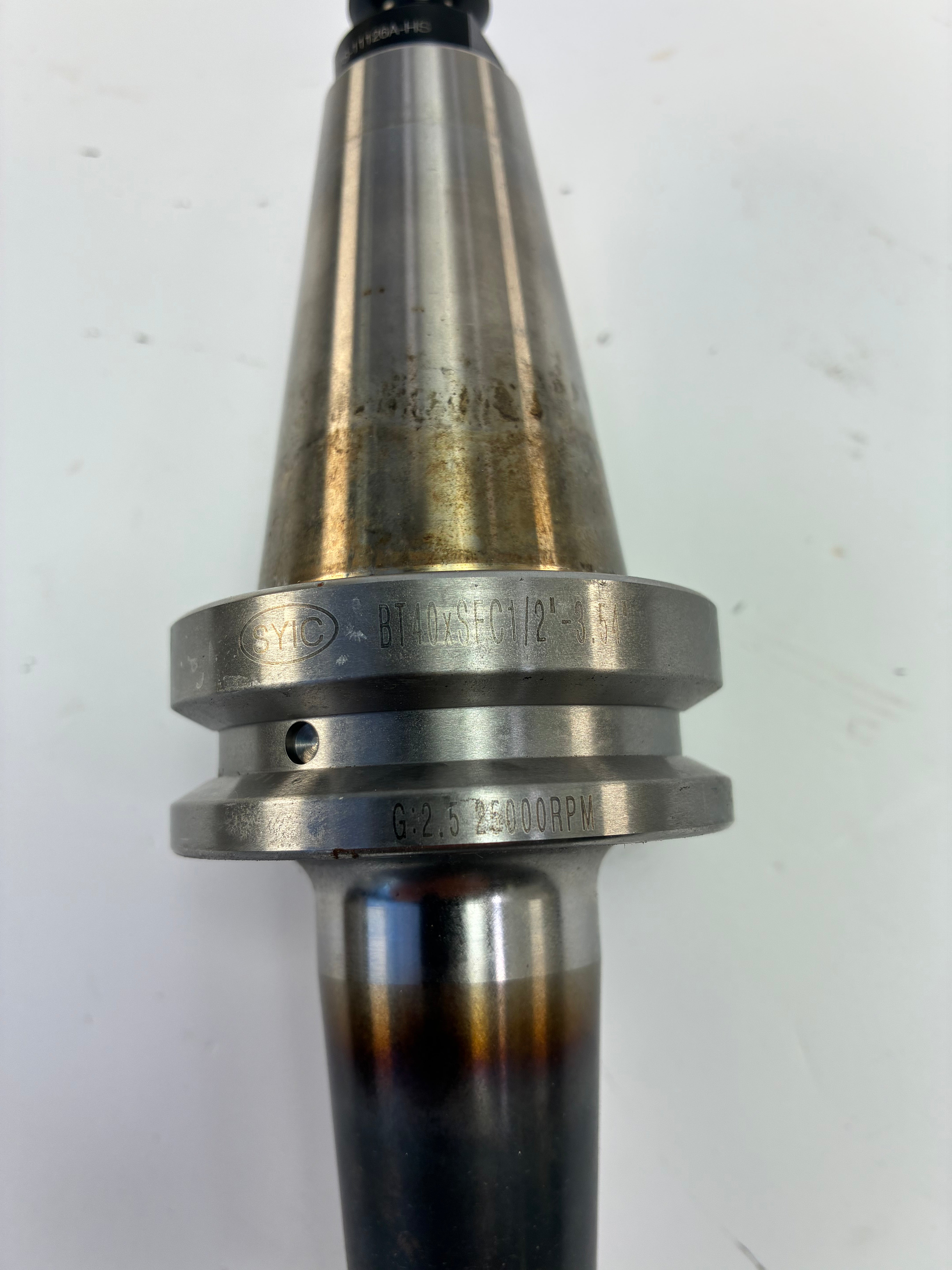

- Balance rating: G2.5 at 25,000 RPM
- Maximum runout: 0.0001 in
- Stop-screw thread: M10 × 1.5
- Coolant capability: Coolant-through
- Pull stud/retention knob: Included
- Cutting tool: Unidentified used cutter included
- Shrink-fit machine required for cutter removal and installation
Condition:
Pre-owned industrial tooling with scratches, machining residue, surface oxidation, staining, and substantial heat discoloration around the shrink-fit nose. The installed cutter also shows evidence of previous use.
The cutter’s manufacturer, exact cutting diameter, coating, and remaining service life have not been verified. The holder has not been checked for runout.
Only the holder, installed cutting tool, and retention knob shown in the photographs are included. Please inspect all photos and verify BT40 taper, 1/2-inch shank, gauge-length, and pull-stud compatibility before purchasing.
Shopify fields
- Vendor: Techniks
- Product type: Shrink-Fit Tool Holder
- Collection: BT40 Tool Holders / CNC Tooling
- SKU: TECHNIKS-39114-12216T
- MPN: 39114
- Condition: Used
- Inventory: 1
- Shipping weight: 4 lb packaged
